- Supermicro CSE-825MBTQC-R802WB Server Chassis 2U Rackmount

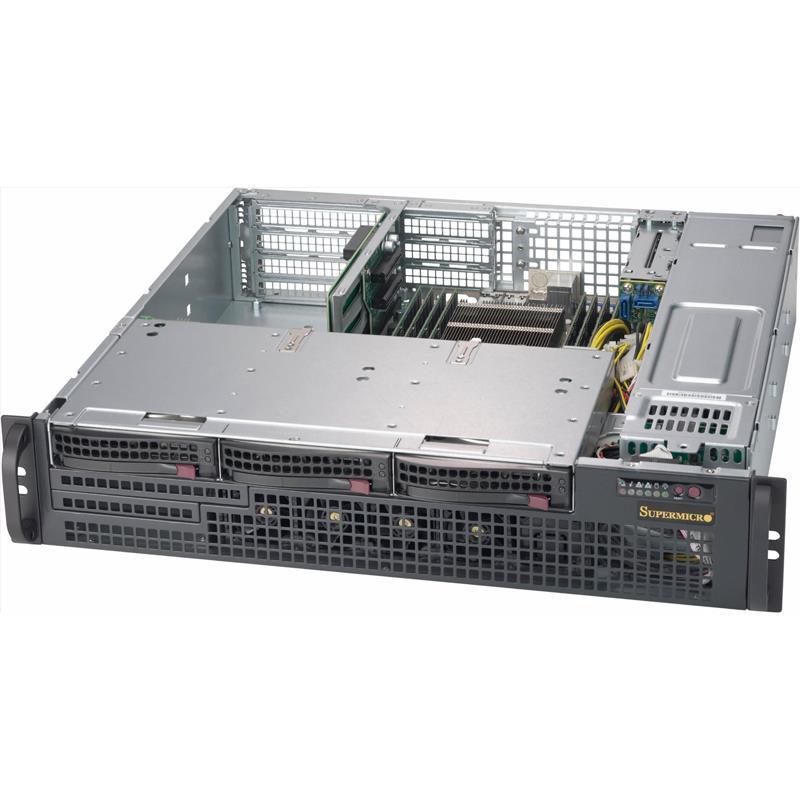

Supermicro CSE-825MBTQC-R802WB Server Chassis 2U Rackmount
• Supports motherboard sizes: Proprietary WIO
• 800W Redundant 80 Plus Titanium Power Supply
• Support Dual and Single Intel and AMD processors
• SAS3 backplane support 3x 3.5 SAS3/SATA3 HDD/SSD
Rackmount 2U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 800W Redundant 80 Plus Titanium Power Supply - Includes : 3x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC825MBTQC-R802WB (Black)
• 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
• 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
• 4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
• Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
• 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
• 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8 x 13.4 motherboards
• 3 x 3.5 hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5 hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
Extra Specifications for Supermicro CSE-825MBTQC-R802WB Server Chassis 2U Rackmount
Main Specifications | ||
Device Type | SuperChassis | |
Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 17.7" (450 mm) | |
Color | Black | |
Form Factor | 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards | |
Weight | 42 lbs (19.05 kg) | |
Processor | ||
Compatible Processors | Dual and Single Intel and AMD processors | |
Expansion / Connectivity | ||
Expansion Slots Total (Free) | 4 full height expansion slot(s) (Riser Card Required) | |
3 low-profile expansion slot(s) (Riser Card Required) | ||
Drive Bays | ||
Hot-swap | 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
Optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards | ||
Peripheral Drives | ||
CD-ROM / DVD-ROM | Optional 1 x slim DVD-ROM drive bay | |
Peripheral Bay | Optional 2 x USB 2.0 ports | |
Optional 1 x COM port tray | ||
Front Panel | ||
Buttons | Power On/Off button, System Reset button | |
LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED | |
System Cooling | ||
Fans | 4x FAN-0156L4 | |
4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | ||
Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | ||
SAS / SATA Backplane | ||
SAS / SATA Backplane | 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD | |
Environmental | ||
Operating Relative Humidity | 8% - 90% (non-condensing) | |
Environmental Parameters | ||
Operating Humidity | 5 - 95% (non-condensing) | |
Operating Environment (System) | ||
Non-Operating Temperature Range | -40C - 70C (-40F - 158F) | |
Operating Temperature Range | 5C - 35C (41F - 95F) | |
Power Supply | ||
Certification | 80PLUS Titanium Certified | |
Power Supply | 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium | |
2x PWS-802A-1R | ||
Regulatory (Power Supply) | ||
Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL | |
Standard Parts List | ||
Accessory | 1x MCP-290-00041-0B, 1x MCP-320-82502-0B, 1x MCP-340-00035-0B | |
Front Panel | 1x FPB-FP836-D | |
Power Distributor | 1x PDB-PT825-S8824 | |
Rear Window | 1x MCP-240-82609-0N | |
Parts List - (Items Included) | ||
Air Shroud | 1x MCP-310-29019-0N | |
Backplane | 1x BPN-SAS3-825MTQ-P | |
Drive Trays | 3x MCP-220-00075-0B, 1x MCP-220-82501-0N | |
Mounting Rails | 1x MCP-290-00053-0N | |
Parts List | ||
Cables | 1x CBL-0071L, 2x CBL-0160L |
