- Supermicro CSE-825TQC-R1K03LPB Server Chassis 2U Rackmount

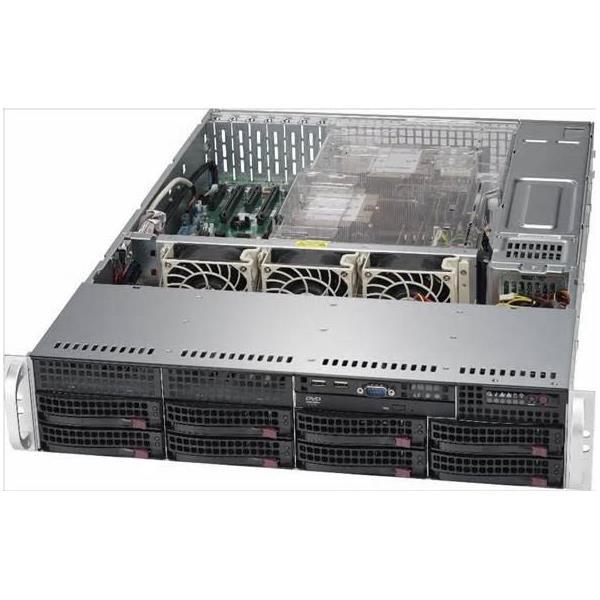

Supermicro CSE-825TQC-R1K03LPB Server Chassis 2U Rackmount
Support Dual and Single Intel and AMD processors
2U Chassis: Supports motherboards up to E-ATX, ATX
High-Density Storage: 10 x 3.5" hot-swap SAS3/SATA bays
Efficient Power: 800/1000W Titanium Power Supply with PMbus
Rackmount 2U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 800/1000W Redundant 80 Plus Titanium Power Supply - Includes : 8x 3.5in Hot-Swap Drive bays, 2x Internal 3.5in drive bay, Mounting Rails Kit - SC825TQC-R1K03LPB (Black)
1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
2. 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
3. 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
4. 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
5. 7 low-profile expansion slot(s)
6. 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
Extra Specifications for Supermicro CSE-825TQC-R1K03LPB Server Chassis 2U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Supply | 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 800W with Input 100 - 127Vac | |
| 1000W with Input 200 - 240Vac | ||
| 1000W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 66.7A (100Vac - 127Vac) | |
| Max: 83A (200Vac - 240Vac) | ||
| Max: 83A (200 - 240) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | -12V Max: 0.6 | |
| +5V Max: 30 | ||
| +3.3V Max: 24 | ||
| PDB-PT825-8824 | ||
| O/P: 12V/75 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 52 lbs (23.59 kg) | |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 2 x 3.5" fixed drive bay | |
| 8 x 3.5" hot-swap SAS3/SATA drive bay | ||
| Backplane | ||
| Backplane | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Optional 2 x USB 2.0 ports | ||
| Optional 1 x COM port tray | ||
| Optional 2 x USB 3.0 ports | ||
| Systems Cooling | ||
| Fans | 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Adaptor Bracket | MCP-120-82503-0N | $ 34.00 | 0 | Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF | ||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
| Front USB | MCP-220-00007-01 | $ 31.00 | 0 | Black USB/COM port tray for SC825, 836 | ||
| Front USB | MCP-220-00114-0N | $ 40.00 | 0 | Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH | ||
| Tray(s) | MCP-290-00036-0B | $ 19.50 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 | ||
| Tray(s) | MCP-220-00023-01 | $ 20.50 | 0 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | ||
| Tray(s) | MCP-220-82503-0B | $ 31.00 | 0 | Black slim FDD kit for SC825/829,828,835 | ||
| Cable | CBL-0157L | $ 18.50 | 0 | 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF | ||
| Cable | CBL-SAST-0699 | $ 29.50 | 0 | internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH | ||
| Cable | CBL-0082L | $ 17.00 | 0 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | ||
| Cable | CBL-0296L | $ 17.00 | 0 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG | ||
| Cable | CBL-0180L-01 | $ 22.00 | 0 | SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG | ||
| LCD/OLED Solutions | MCP-220-00119-0B | $ 86.50 | 0 | 2nd Gen Black 3.5" OLED tray, support 1x internal 2.5" HDD | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 0 | BLACK TEAC SLIM DVD SATA DRIVE,HF,RoHS | ||
| SATA DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| HDD Tray Converter | MCP-220-00043-0N | $ 26.00 | 0 | Black hot-swap gen 4 3.5 to 2.5 HDD tray | ||
| Front Bezel | MCP-210-82503-0B | $ 34.00 | 0 | Black SC825 front bezel |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
