| Main Specifications |

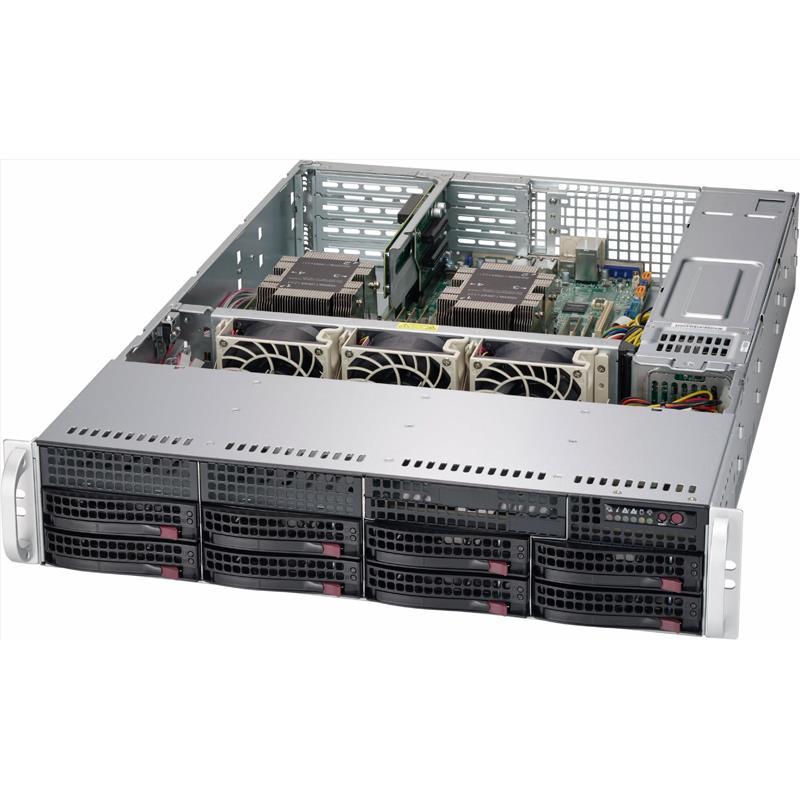

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Color | Black |
| Form Factor | 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards |
| Weight | 52 lbs (23.59 kg) |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3 low-profile expansion slot(s) |
| 4 full-height & full-length expansion slot(s) |
| Drive Bays |
| Hot-swap | 8 x 3.5" hot-swap SAS3/SATA drive bay |
| Internal | 2 x 3.5" fixed drive bay |
| Peripheral Bays | Optional 2 x USB 3.0 ports |
| Peripheral Drives |
| CD-ROM / DVD-ROM | Optional 1 x slim DVD-ROM drive bay |
| Peripheral Bay | Optional 2 x USB 2.0 ports |
| Optional 1 x COM port tray |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED |
| System Cooling |
| Fans | 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control |
| 3x FAN-0181L4 |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD |
| Environmental |
| Operating Relative Humidity | 8% - 90% (non-condensing) |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) |
| Operating Temperature Range | 5C - 35C (41F - 95F) |
| Power Supply |
| Certification | 80PLUS Titanium Certified |
| Power Supply | 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus |
| 2x PWS-1K03A-1R |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Standard Parts List |
| Accessory | 1x MCP-290-00007-01 |
| Front Panel | 1x FPB-FP836-D |
| Power Distributor | 1x PDB-PT825-8824 |
| Rear Window | 1x MCP-240-00102-0N |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Backplane | 1x BPN-SAS3-825TQ |
| Drive Trays | 1x MCP-220-00023-01, 8x MCP-220-00075-0B, 2x MCP-220-82502-0B |
| Mounting Rails | 1x MCP-290-00053-0N |
| Parts List |
| Cables | 1x CBL-0071L, 2x CBL-0160L |
