• Supports motherboard sizes: EE-ATX/E-ATX/ATX
• Support Dual and Single Intel and AMD processors
• 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5 HDD
• 1200W/1000W Redundant 80Plus Titanium Power Supply

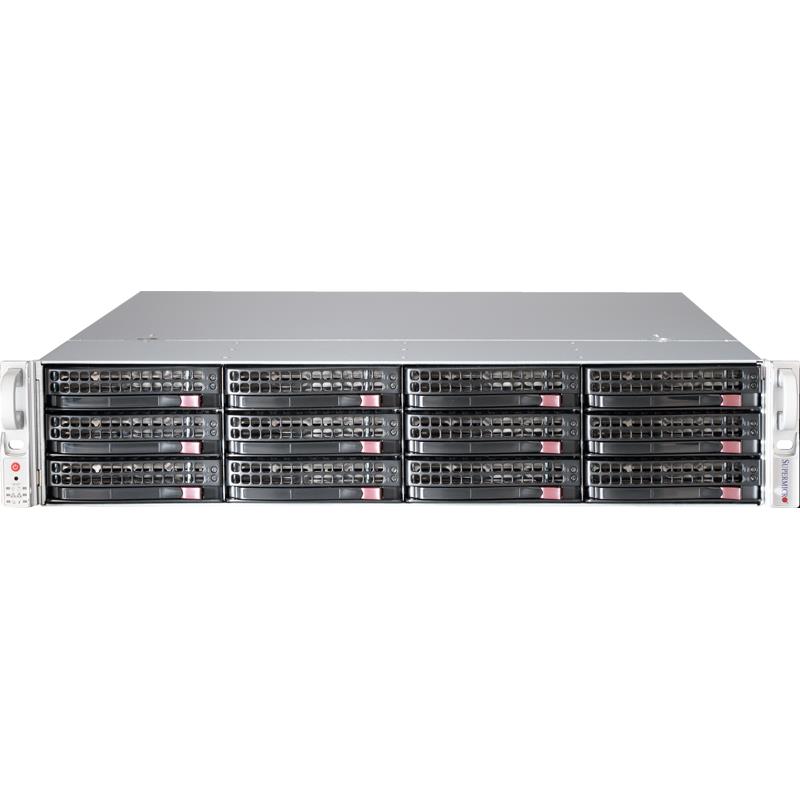

Rackmount 2U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 1200W/1000W Redundant 80 Plus Titanium Power Supply - Includes : 12x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC826BAC4-R1K23LPB (Black)
• 7 low-profile expansion slots
• 3 x 8cm high-performance PWM fans
• Optional 5 x 6cm 4pin high performance fans
• 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5 HDD
• 12 x 3.5 hot-swap drive bay, optional 2 x 2.5 hot-swap drive bay
• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
• 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
• 2U chassis support max. motherboard size - ATX 12 x 10, E-ATX 12 x 13, EE-ATX 13 x 13.68. Support up to ATX 12x13 MB with rear 2.5 HDD option installed
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) | |
| Color | Black | |
| Form Factor | 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" | |
| Support up to ATX 12"x13" MB with rear 2.5" HDD option installed | ||
| Weight | 55 lbs (24.95 kg) | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7 low-profile expansion slots | |
| Drive Bays | ||
| Hot-swap | Optional 2 x 2.5" hot-swap drive bay | |
| 12 x 3.5" hot-swap drive bay | ||
| 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD | ||
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | 3 x 8cm high-performance PWM fan(s) | |
| Optional 5 x 6cm 4pin high performance fan(s) | ||
| 3x FAN-0158L4 | ||
| Miscellaneous | ||
| Applications | Chassis Intrusion switch | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Environmental | ||
| Operating Relative Humidity | 8% - 90% (non-condensing) | |
| Environmental Parameters | ||
| Operating Humidity | 5 - 95% (non-condensing) | |
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) | |
| Operating Temperature Range | 5C - 35C (41F - 95F) | |
| Power Supply | ||
| Certification | 80PLUS Titanium Certified | |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
| 2x PWS-1K23A-1R | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL | |
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-29001-0N | |
| Backplane | 1x BPN-SAS3-826A-N4 | |
| Drive Trays | 12x MCP-220-00075-0B | |
| Mounting Rails | 1x MCP-290-00053-0N | |
| Parts List | ||
| Cables | 2x CBL-0160L | |
| Standard Parts List | ||
| Power Distributor | 1x PDB-PT826-8824 | |
| Rear Window | 1x MCP-240-82608-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
