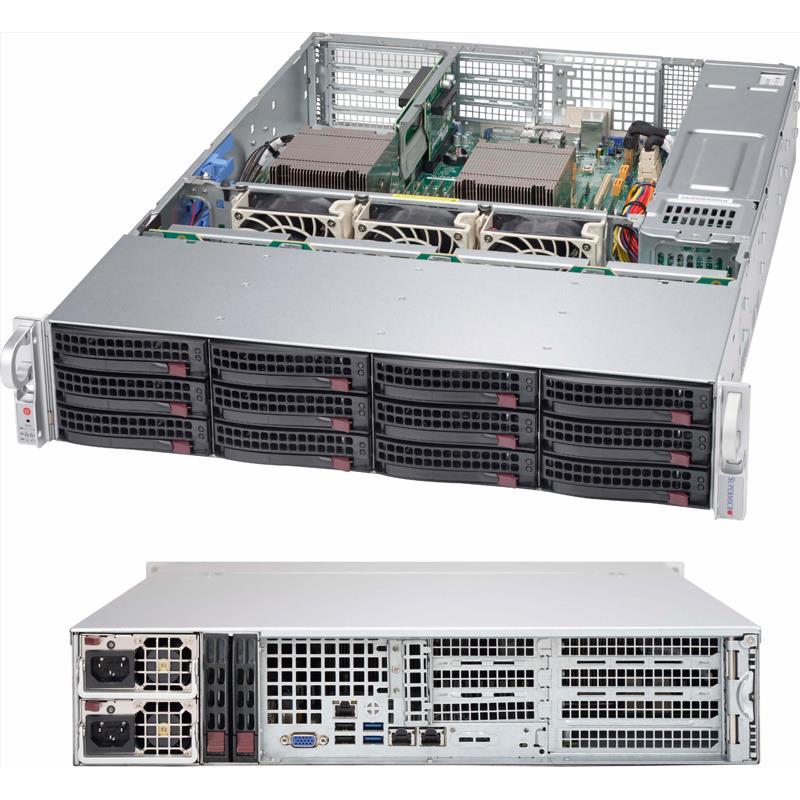

Supermicro CSE-826BAC4-R1K23WB Server Chassis 2U Rackmount
• Support Dual and Single Intel and AMD processors
• Expansion Slots WIO 4x FH; HL; plus 3x Low-profile
• 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5 HDD
• 1200W/1000W Redundant 80Plus Titanium Power Supply
Rackmount 2U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 1200W/1000W Redundant 80 Plus Titanium Power Supply - Includes : 12x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC826BAC4-R1K23WB (Black)
1. 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed
2. 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
3. 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
5. WIO Slots (4x Full-height, Half-length + 3x Low-profile)
6. 3 x 8cm high-performance PWM fan(s) Optional 5 x 6cm 4pin high performance fan(s)
Extra Specifications for Supermicro CSE-826BAC4-R1K23WB Server Chassis 2U Rackmount
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 1200W with Input 200 - 240Vac | |
| 1000W with Input 100 - 127Vac | ||
| 1200W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 100A / Min: 0A (200Vdc - 240Vdc) | |
| Max: 100A / Min: 0A (200Vac - 240Vac) | ||
| Max: 83A / Min: 0A (100Vac - 127Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | -12V Max: 0.6A | |
| O/P: 12V/135 | ||
| +5V Max: 40A | ||
| +3.3V Max: 24A | ||
| PDB-PT826-S8824 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | CSE-826BAC4-R1K23WB | |
| Form Factor | ||
| Form Factor | 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 55 lbs (24.95 kg) | |
| Net Weight | 40 lbs (18.14 kg) | |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | WIO Slots 4x Full-height, Half-length expansion slot(s) | |
| WIO Slots 3x Low-profile expansion slot(s) | ||
| Drive Bays | ||
| Drive Bays | Optional 2x 2.5" hot-swap drive bay | |
| 12x 3.5" hot-swap drive bay | ||
| 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD | ||
| Backplane | ||
| Backplane | 12-Port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Unit Identification (UID) LED | ||
| Fan Fail/System Over Heat LED | ||
| Systems Cooling | ||
| Fans | 3x 8cm high-performance PWM fan(s) | |
| Optional 5x 6cm 4pin high performance fan(s) | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
