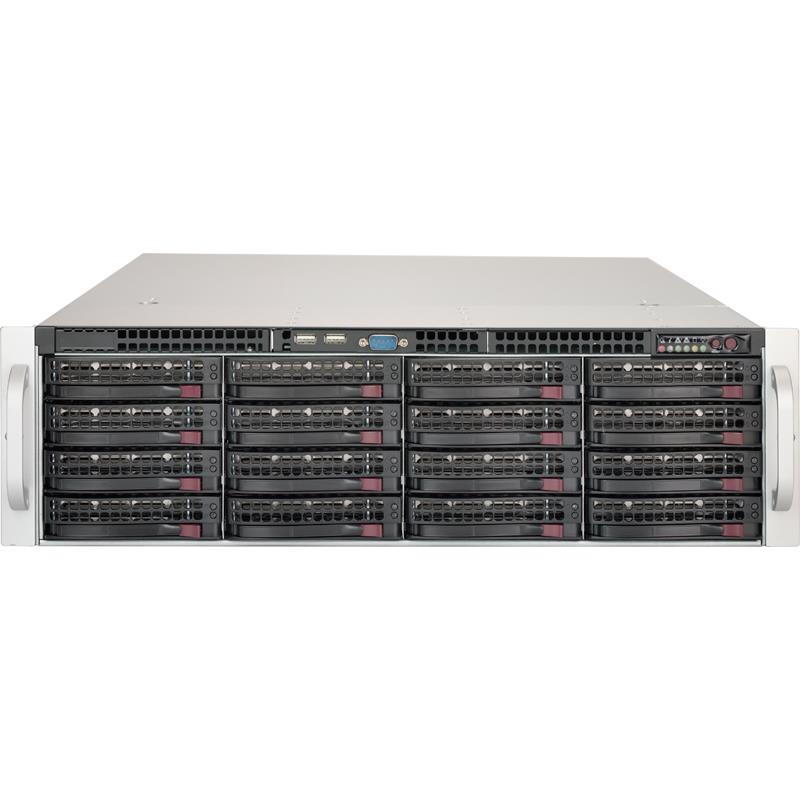

Supermicro CSE-836BE1C-R1K23B Server Chassis 3U Rackmount
3U Chassis: Supports E-ATX and ATX motherboards up to 13.68" x 13"
Efficient Power: 1U 1200W/1000W Titanium Power Supply with PMbus
High-Speed Connectivity: 16-port SAS3 12Gbps single-expander backplane
High-Density Storage: 16 x 3.5" hot-swap SAS/SATA bays, optional 2 x 2.5" bays
Rackmount 3U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 1200W/1000W Redundant 80 Plus Titanium Power Supply - Includes : 16x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC836BE1C-R1K23B (Black)
1. 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX
2. 16 x 3.5" hot-swap SAS/SATA drive bay with SES2, optional 2 x 2.5" hot-swap drive bay
3. 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
5. 7 full-height & full-length expansion slot(s)
6. 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud
Extra Specifications for Supermicro CSE-836BE1C-R1K23B Server Chassis 3U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 1200W with Input 200 - 240Vac | |
| 1000W with Input 100 - 127Vac | ||
| 1200W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 83A (100Vac - 127Vac) | |
| Max: 100A (200Vac - 240Vac) | ||
| Max: 100A (200 - 240) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | PDB-PT826-8824 | |
| O/P: 12V/135 | ||
| -12V Max: 0.6 | ||
| +3.3V Max: 24 | ||
| +5V Max: 40 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 5.2" (132 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 72 lbs (32.66 kg) | |
| Packaging (W x H x L) | 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | Optional 2 x 2.5" hot-swap drive bay | |
| 16 x 3.5" hot-swap SAS/SATA drive bay with SES2 | ||
| Backplane | ||
| Backplane | 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Systems Cooling | ||
| Fans | 2 x 8cm hot-swap exhaust fan(s) & air shroud | |
| 3 x 8cm hot-swap redundant PWM cooling fan(s) | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Quick-release outer rail for square hole short-depth rack (19"~26.4") | ||
| Hot-swap Capable Drive Kit | MCP-220-83605-0N | 0 | Rear 2 X 2.5 Hot swap HDD kit for 836B/835B | |||
| Hot-swap Capable Drive Kit | MCP-220-83608-0N | $ 115.50 | 0 | 2.5x2 Hot-swap HDD kit w/ fail LED for 836B(H)/835B | ||
| Hot-swap Capable Drive Kit | MCP-220-81504-0N | $ 113.00 | 0 | 2.5-in hot-swap slim floppy size drive kit with fail LED | ||
| Hot-swap Capable Drive Kit | MCP-220-81506-0N | $ 81.50 | 0 | 2.5-in hot-swap slim DVD size drive kit with fail LED | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT3 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS,HF,RoHS/REACH,PBF | |||
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| SATA DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| HDD Tray Converter | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| Front USB | MCP-220-00007-01 | $ 31.00 | 0 | Black USB/COM port tray for SC825, 836 |
