• Redundant 1200W Titanium Level power supply
• Optimized design for Dual and Single processors
• Supports motherboard sizes: EE-ATX/E-ATX/ATX
• Backplane Supports 24x 3.5 SAS3/SATA3 HDD/SSD

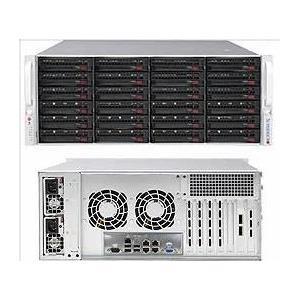

Rackmount 4U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 1200W/1000W Redundant 80 Plus Titanium Power Supply - Includes : 24x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC846BE2C-R1K23B (Black)
• E2C: Dual SAS3 (12Gbps) expander backplane
• Redundant 1200W Titanium Level power supply
• Mini SAS HD (SFF 8643) connectivity on backplane
• Optimized chassis cooling with redundant cooling fans and adjustable air shroud
• 24x 3.5 hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 26" (660 mm) | |
| Color | Black | |
| Supported Motherboards | 4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10") | |
| Weight | 75 lbs (34.02 kg) | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7 full-height & full-length expansion slots | |
| Drive Bays | ||
| Hot-swap | Optional 2 x 2.5" hot-swap drive bay | |
| 24 x 3.5" hot-swap drive bay | ||
| Peripheral Bays | Optional 1 x 3.5" internal fixed drive bay | |
| Optional 2 x 2.5" internal fixed drive bay | ||
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | 2 x 80mm rear hot-swap exhaust PWM fan(s) | |
| 3 x 8cm hot-swap redundant PWM cooling fan(s) | ||
| 2x FAN-0125L4, 3x FAN-0185L4 | ||
| Miscellaneous | ||
| Applications | Chassis Intrusion switch | |
| Parts List - (Items Included) | ||
| Backplane | 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD | |
| 1x BPN-SAS3-846EL2 | ||
| Parts | 1x MCP-290-84604-0N | |
| Air Shroud | 1x MCP-310-49003-0N | |
| Mounting Rails | 1x MCP-290-00057-0N, 1x MCP-410-00007-0N | |
| Environmental | ||
| Operating Relative Humidity | 8% - 90% (non-condensing) | |
| Environmental Parameters | ||
| Operating Humidity | 5 - 95% (non-condensing) | |
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) | |
| Operating Temperature Range | 5C - 35C (41F - 95F) | |
| Power Supply | ||
| Certification | 80PLUS Titanium Certified | |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
| 2x PWS-1K23A-1R | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL | |
| Parts List | ||
| Cables | 1x CBL-0071L, 2x CBL-0160L, 1x CBL-0217L, 1x CBL-0234L | |
| Standard Parts List | ||
| Hard Drive Trays | 24x MCP-220-00075-0B | |
| Front Panel | 1x MCP-280-82601-0N | |
| Power Distributor | 1x PDB-PT846-2824 | |
| Rear Window | 1x MCP-240-84602-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
