  2. Supermicro CSE-GS5A-754K Mid-Tower Chassis 750W PS2 Multi-output Power Supply

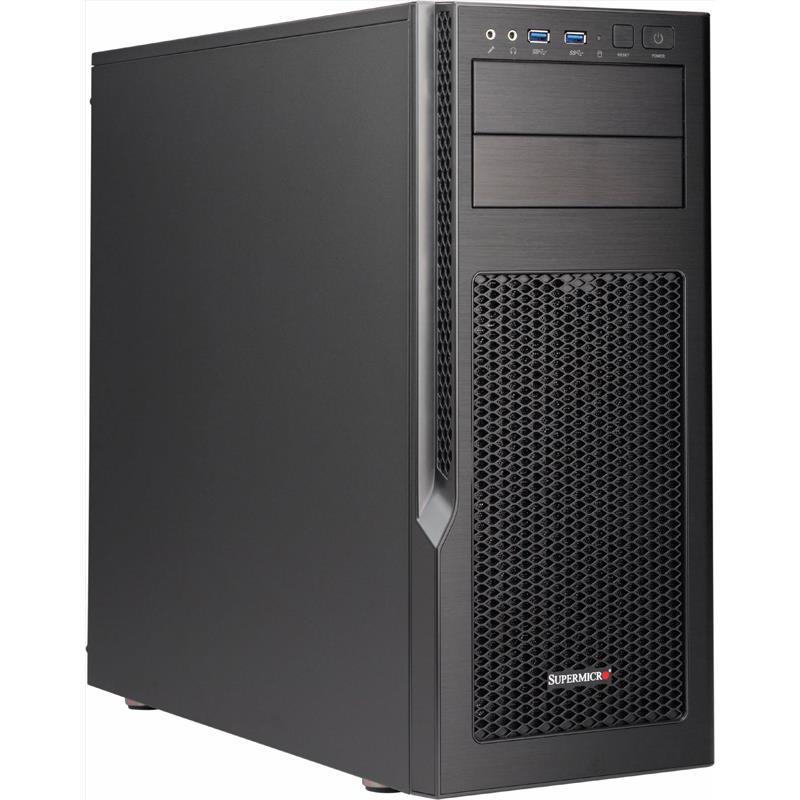

Supermicro CSE-GS5A-754K Mid-Tower Chassis 750W PS2 Multi-output Power Supply
Supermicro CSE-GS5A-754K Mid-Tower Chassis for Intel/AMD Single CPU

Supermicro CSE-GS5A-754K Mid-Tower Chassis 750W PS2 Multi-output Power Supply

• Support Single Intel and AMD processors
• Removable magnetic dust filters; 3x fans included
• 750W power supply; Efficient at 80Plus Gold level
• Offers extreme storage/cooling for ATX motherboard

Mid-Tower chassis for Intel/AMD Single CPU motherboards. 7x Expansion Slots. 750W 80 Plus Gold Power Supply - Includes : 6x 3.5in Drive Bay, 4x 2.5in Drive Bay, 2x Standard 5.25in Drive Bay, 2x USB 3.0 Ports - SCGS5A-754K - Black

$ 305.50$ 305.50305.5USD

$ 305.50

Option not available

InStock
29 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • Sound-dampened side panels
    • 3x 120mm PWM fans included
    • Removable magnetic dust filter
    • 750W 80PLUS Gold Fully-Modular Power Supply
    • Cable management holes with rubber grommets for clean builds
    • Tool-less 5.25 device installation with trays to support 3.5 and 2.5 drives
    • Black anodized brushed aluminum fascia front panel with two USB 3.0 ports
    • Removable 3.5 and 2.5 HDD/SSD cages with tool-less trays for up to 10 drives

    Extra Specifications for Supermicro CSE-GS5A-754K Mid-Tower Chassis 750W PS2 Multi-output Power Supply

    Main Specifications
    Device TypeSuperChassis
    Dimensions (WxDxH)Height 18.1" (460 mm) x Width 7.9" (200 mm) x Depth 19.4" (493 mm)
    Enclosure ColorBlack / Gray
    Form FactorMid-Tower chassis
    Supported MainboardsATX 12"x10" & Micro-ATX 9.6"x9.6"
    Weight26 lbs (11.8 kg)
    Processor Support
    Processor SupportSingle Intel and AMD processors
    Expansion / Connectivity
    Expansion Slots Total (Free)7 full-height & full-length expansion slots
    Drive Bays
    Internal6 x 3.5" fixed drive bay
    4 x 2.5" fixed drive bay
    Peripheral Drives
    Peripheral Bay2 x standard 5.25" drive bay
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsHDD activity LED, Power Status LED
    System Cooling
    Fans1 x 12cm rear exhaust fan
    2 x 12cm front cooling fan
    Operating Environment (System)
    Operating Temperature RangeOperating Temperature Range: 5C - 35C (41F - 95F)
    Non-Operating Temperature Range: -40C - 70C (-40F - 158F)
    Operating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Power Supply
    Certification80PLUS Gold Certified
    Power Supply750W PS2 Multi-output Power Supply
    1x PWS-754-PQ
    Regulatory (Power Supply)
    Power Supply Safety / EMCBSMI, CCC, FCC class B, UL/CUL
    Standard Parts List
    Drive Tray1x MCP-220-GS501-0B, 1x MCP-220-GS502-0B, 1x MCP-220-GS503-0B

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
