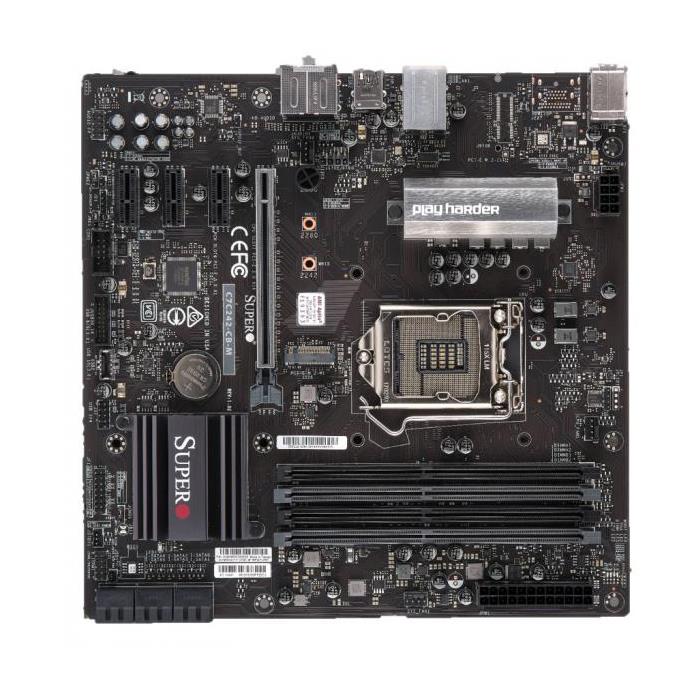

Supermicro C7C242-CB-M Motherboard MicroATX Single Socket H4 Intel Xeon E-2100 Processor and Intel Xeon E-2200 Processor

Supports Intel Xeon E-2100/E-2200 Processor
Offers M.2 with Form Factor: 2280 - Key: M-Key
Intel C242 controller for 6 SATA3 (6 Gbps) ports
Up to 64GB UDIMM, DDR4-2666MHz memory in 4 DIMM slots

Motherboard MicroATX, Supports Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP Supporting Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, 8th/9th Generation Intel Core i9/Core i7/Core i5/Core i3 and Pentium/Celeron Processor. Supports up to 64GB DDR4-2666Mhz DIMM in 4 memory slots, Intel C242 Express PCH chipset, onboard 1x 1GbE LAN port, 4x PCIe 3.0, 1x M.2 slot - MBD-C7C242-CB-M

1. 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
2. Up to 64GB DDR4 ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
3. 1 PCI-E 3.0 x16 (in x16 slot), 3 PCI-E 3.0 x1 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key
4. Intel® C242 chipset
5. Up to 64GB Unbuffered ECC UDIMM DDR4 2666MHz; 4 DIMM slots
6. 1 PCI-E 3.0 x16 (in x16) slot
7. M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280 Key: M-Key

Extra Specifications for Supermicro C7C242-CB-M Motherboard MicroATX Single Socket H4 Intel Xeon E-2100 Processor and Intel Xeon E-2200 Processor

System Memory
DIMM Sizes	4GB, 8GB, 16GB
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
Memory Capacity	4 DIMM slots
	Up to 64GB ECC/non-ECC , DDR4-2666MHz
Memory Type	2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® C242 Express PCH
Network Controllers	Single LAN with Intel® single Ethernet PHY i219V
SATA	4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
	Intel® C242 controller for 6 SATA3 (6 Gbps) ports
Input / Output
SATA	6 SATA3 (6Gbps) port(s)
LAN	1 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.2 Gen2 port(s) (1 rear type C; 2 rear; 1 rear type A)
	3 USB 3.2 Gen1 port(s) (2 via header; 1 rear)
	5 USB 2.0 port(s) (2 via header; 3 rear)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header
System BIOS
BIOS Features	SMBIOS 2.7
BIOS Type	256MB UEFI
Management
Power Configurations	ATX Power connector
Software	SuperDoctor® 5, AMT, vPro
System Management Software	SuperDoctor 5
PC Health Monitoring
FAN	Fan speed control
	PWM fan speed control
	3x 4-pin fan headers (up to 3 fans)
Other Features	Chassis intrusion header
	ATX Power connector
Voltage	VBAT, HT, Chassis intrusion header, +5V standby, +3.3V, +1.8V
Product SKUs
Product SKUs	MBD-C7C242-CB-M
Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
	Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
Expansion Slots
PCIe	1 PCIe 3.0 x16 (in x16 slot),
	3 PCIe 3.0 x1
M.2	Form Factor: 2280
	Key: M-Key
	M.2 Interface: PCIe 3.0 x4

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
