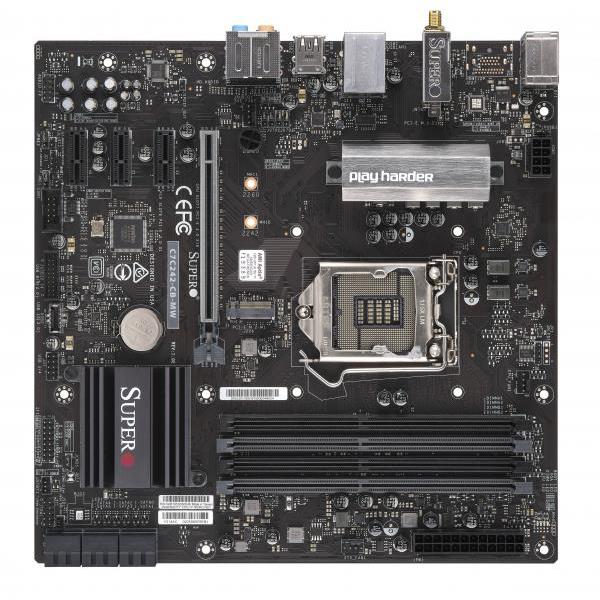

Supermicro C7C242-CB-MW Motherboard MicroATX Single Socket H4 Intel Xeon E-2100 and Intel Xeon E-2200 Processors

Supports Intel Xeon E-2100/E-2200 Processor
Intel C242 controller for 6 SATA3 (6 Gbps) ports
Offers M.2 with Form Factor: 2280 - Key: M-Key, E-Key
Up to 64GB UDIMM, DDR4-2666MHz memory in 4 DIMM slots

Motherboard MicroATX, Supports Single Socket LGA-1151 (Socket H4), Supporting 8th/9th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 and Intel Xeon E-2200 Processors - Supports up to 64GB DDR4-2666Mhz DIMM in 4 memory slots, Intel C242 Express PCH chipset, onboard 1x 1GbE LAN port, 4x PCIe 3.0, 1x M.2 slot - MBD-C7C242-CB-M

1. Intel® C242 Express PCH
2. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHzUp to , in 4 DIMM slots
3. 1 PCI-E 3.0 x16, 3 PCI-E 3.0 x1 M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key, E-Key E Key for CNVi WiFi only
4. Intel® C242 chipset
5. Up to 64GB Unbuffered ECC UDIMM DDR4 2666MHz; 4 DIMM slots
6. 1 PCI-E 3.0 x16 (in x16) slot
7. M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280 Key: M-Key , E-Key E Key for CNVi WiFi only

Extra Specifications for Supermicro C7C242-CB-MW Motherboard MicroATX Single Socket H4 Intel Xeon E-2100 and Intel Xeon E-2200 Processors

System Memory
DIMM Sizes	4GB, 8GB, 16GB
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
Memory Capacity	4 DIMM slots
	Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz
Memory Type	2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® C242 Express PCH
Network Controllers	Single LAN with Intel® single Ethernet PHY i219V
SATA	Intel® C242 controller for 6 SATA3 (6 Gbps) ports
Audio	RealTek ALC888 7.1 High Definition Audio with S/PDIF header
System BIOS
BIOS Features	SMBIOS 2.7
BIOS Type	256MB UEFI
Management
Power Configurations	ATX Power connector
Software	SuperDoctor® 5
System Management Software	SuperDoctor 5
PC Health Monitoring
FAN	3x 4-pin fan headers (up to 3 fans)
	3 fans with tachometer monitoring
Other Features	Chassis intrusion header
Voltage	VBAT, Memory, HT, +5V standby, +5V, +3.3V, +1.8V
Temperature	Thermal Control for 3 Fan Connectors
Product SKUs
Product SKUs	MBD-C7C242-CB-MW
Physical Stats
Form Factor	microATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
	8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processors, Intel® Xeon® E-2200 Processors
Core	Up to 6 cores, 12 threads
Input / Output
USB	4 USB 3.2 Gen2 port(s) (1 rear type C; 2 rear; 1 rear type A)
	3 USB 3.2 Gen1 port(s) (2 via header; 1 rear)
	5 USB 2.0 port(s) (2 via header; 3 rear)
Serial Port	1 COM Port(s) (1 header)
DOM	1 SATA DOM power connector (Disk on Module) port
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x16,
	3 PCIe 3.0 x1
M.2	Form Factor: 2280
	M.2 Interface: 1 PCIe 3.0 x4
	Key: M-Key, E-Key

Warranty:	3 years, 90 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 90 days, 2 weeks afterwards
