| Main Specifications |

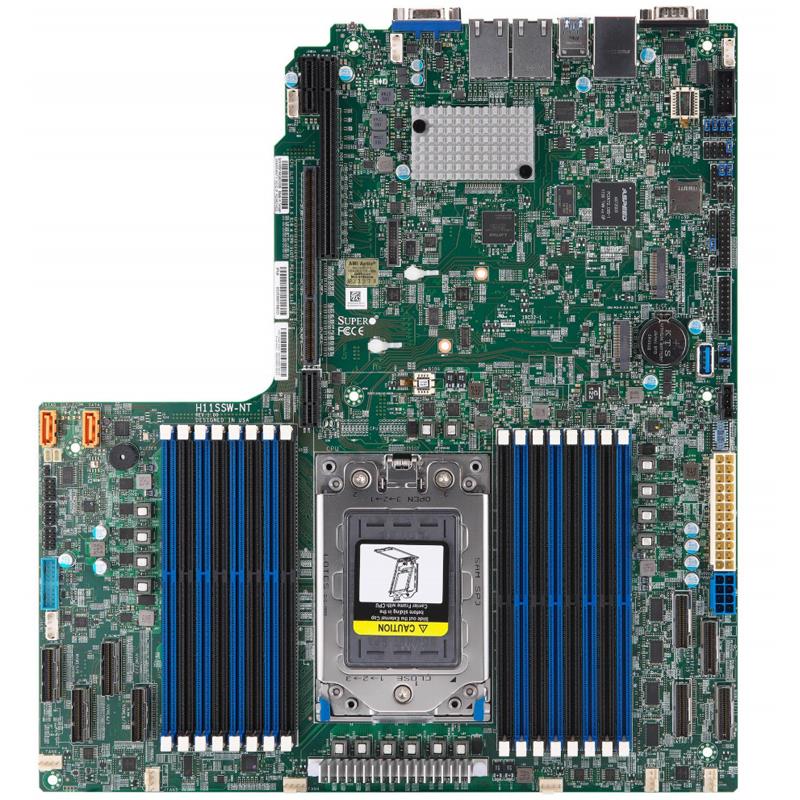

| Device Type | Motherboard |
| Dimensions (WxDxH) | 13.4" x 12.29" (34cm x 31.2cm) |
| Form Factor | Proprietary |
| Processor |
| Cache | Up to 32 Cores |
| Compatible Processors | Single AMD EPYC 7000-series Processor |
| Compatible Socket | Socket SP3 |
| System Memory (per Node) |
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB |
| System Memory |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 8-channel memory bus |
| 16 DIMM slots |
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs |
| Cache Memory |
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs |
| Memory |
| Supply Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2500 BMC |
| Network Controllers | 1 Realtek RTL8211E PHY (dedicated IPMI) |
| 2x 10GBase-T LAN Ports via Broadcom BCM57416 |
| TPM | 1 TPM 1.2 header |
| USB | 7 USB 3.0 ports (4 rear + 2 front + 1 Type A) |
| Input / Output |
| SATA | SATA3 (6 Gbps) |
| 2 SATA3 (6 Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 10GBase-T Ethernet LAN ports |
| NVMe | SATA/NVMe Hybrid: 16 SATA3 / 4 NVMe |
| NVMe: 12 NVMe |
| Others | 2 SATA DOM power connectors |
| 1 TPM 2.0 header |
| 2 COM ports (rear) |
| VGA | 1 VGA port |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x32 Left Riser Slot |
| 1 PCI-E 3.0 x16 Right Riser Slot |
| M.2 | Form Factor: 2280, 22110 |
| Key: M-key |
| Interface: 2 PCI-E 3.0 x2 |
| System BIOS |
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 |
| BIOS Type | AMI 128Mb SPI Flash EEPROM |
| Management |
| Power Configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery |
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN |
| PC Health Monitoring |
| CPU | CPU switching voltage regulator |
| Supports system management utility |
| VBAT |
| Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Up to 6-fan status tachometer monitoring |
| Dual Cooling Zone |
| Up to 6 4-pin fan headers |
| LED | CPU / System Overheat LED |
| Other Features | Chassis intrusion detection |
| Chassis intrusion header |
| UID |
| Environmental Parameters |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| IC Temperature Sensing Logic |
| Thermal control for 6x Fan connectors |
| Operating Temperature | Operating Temperature: 10C to 35C (50F to 95F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature:-40C to 70C (-40F to 158F) |
| Parts List |
| I/O Cables | 1x CBL-SAST-0813 |
| Motherboard | 1x MBD-H11SSW-NT-O |
| Miscellaneous |
| Compatibility | 2U Chassis: SC213AC8-R1K23WB |
| Server: AS-1113S-WN10RT, AS-2113S-WN24RT, AS-2113S-WTRT |
