- Supermicro H11SSW-NT Motherboard Proprietary Single Socket SP3 AMD EPYC 7001/7002 Series Processor

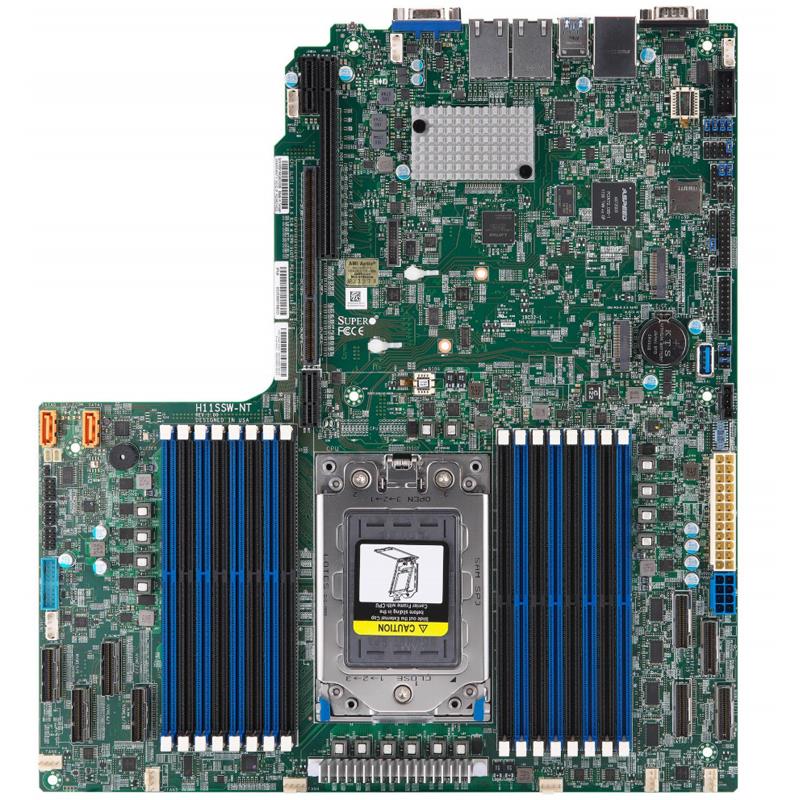

Supermicro H11SSW-NT Motherboard Proprietary Single Socket SP3 AMD EPYC 7001/7002 Series Processor
• 2x M.2 interface; 2x PCI-E 3.0 Add-on card
• Support Single AMD EPYC 7000-Series Processor
• 2x 10GBase-T LAN ports; 2x SATADOM connectors
• Up to 2TB Registered ECC DDR4 2666MHz in 16 DIMMs
Motherboard Proprietary Supports Single Socket SP3, Supporting AMD EPYC 7001/7002 Series Processor (Board revision 2x required), Up to 32-Core/Up to 64-Core (Board revision 2x required) - Up to 4TB DDR4-3200MHz DIMM in 16 memory slots, Chipset: System on Chip, onboard 2x 10GBase-T ports, 1x IPMI LAN port, 12x NVMe, 2x SATADOM, 2x PCIe 3.0, 2x M.2 slot - MBD-H11SSW-NT-B
• ASPEED AST2500 BMC graphics
• Single AMD EPYC 7000-Series Processor
• M.2 Interface: 2 PCI-E 3.0 x2
• M.2 Form Factor: 2280, 22110
• M.2 Key: M-key
• Up to 7 USB 3.0 ports (4 rear + 2 front + 1 Type A)
• 6 PWM 4-pin Fans with tachometer status monitoring
• 12 NVMe via SlimSAS, 4 NVMe or 16 SATA3 via SlimSAS, 2 M.2, 2 SATA3
• 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs, 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
• 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot
• 2x 10GBase-T LAN Ports via Broadcom BCM57416, 1 Realtek RTL8211E PHY (dedicated IPMI)
Extra Specifications for Supermicro H11SSW-NT Motherboard Proprietary Single Socket SP3 AMD EPYC 7001/7002 Series Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 13.4" x 12.29" (34cm x 31.2cm) | |
| Form Factor | Proprietary | |
| Processor | ||
| Cache | Up to 32 Cores | |
| Compatible Processors | Single AMD EPYC 7000-series Processor | |
| Compatible Socket | Socket SP3 | |
| System Memory (per Node) | ||
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB | |
| System Memory | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 8-channel memory bus | |
| 16 DIMM slots | ||
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs | ||
| Cache Memory | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| Memory | ||
| Supply Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| 2x 10GBase-T LAN Ports via Broadcom BCM57416 | ||
| TPM | 1 TPM 1.2 header | |
| USB | 7 USB 3.0 ports (4 rear + 2 front + 1 Type A) | |
| Input / Output | ||
| SATA | SATA3 (6 Gbps) | |
| 2 SATA3 (6 Gbps) ports | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T Ethernet LAN ports | ||
| NVMe | SATA/NVMe Hybrid: 16 SATA3 / 4 NVMe | |
| NVMe: 12 NVMe | ||
| Others | 2 SATA DOM power connectors | |
| 1 TPM 2.0 header | ||
| 2 COM ports (rear) | ||
| VGA | 1 VGA port | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x32 Left Riser Slot | |
| 1 PCI-E 3.0 x16 Right Riser Slot | ||
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| Interface: 2 PCI-E 3.0 x2 | ||
| System BIOS | ||
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 | |
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN | |
| PC Health Monitoring | ||
| CPU | CPU switching voltage regulator | |
| Supports system management utility | ||
| VBAT | ||
| Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 6-fan status tachometer monitoring | ||
| Dual Cooling Zone | ||
| Up to 6 4-pin fan headers | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| UID | ||
| Environmental Parameters | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| IC Temperature Sensing Logic | ||
| Thermal control for 6x Fan connectors | ||
| Operating Temperature | Operating Temperature: 10C to 35C (50F to 95F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature:-40C to 70C (-40F to 158F) | ||
| Parts List | ||
| I/O Cables | 1x CBL-SAST-0813 | |
| Motherboard | 1x MBD-H11SSW-NT-O | |
| Miscellaneous | ||
| Compatibility | 2U Chassis: SC213AC8-R1K23WB | |
| Server: AS-1113S-WN10RT, AS-2113S-WN24RT, AS-2113S-WTRT | ||
