- Supermicro M11SDV-8C-LN4F Motherboard Mini-ITX Embedded AMD EPYC 3251 Processor

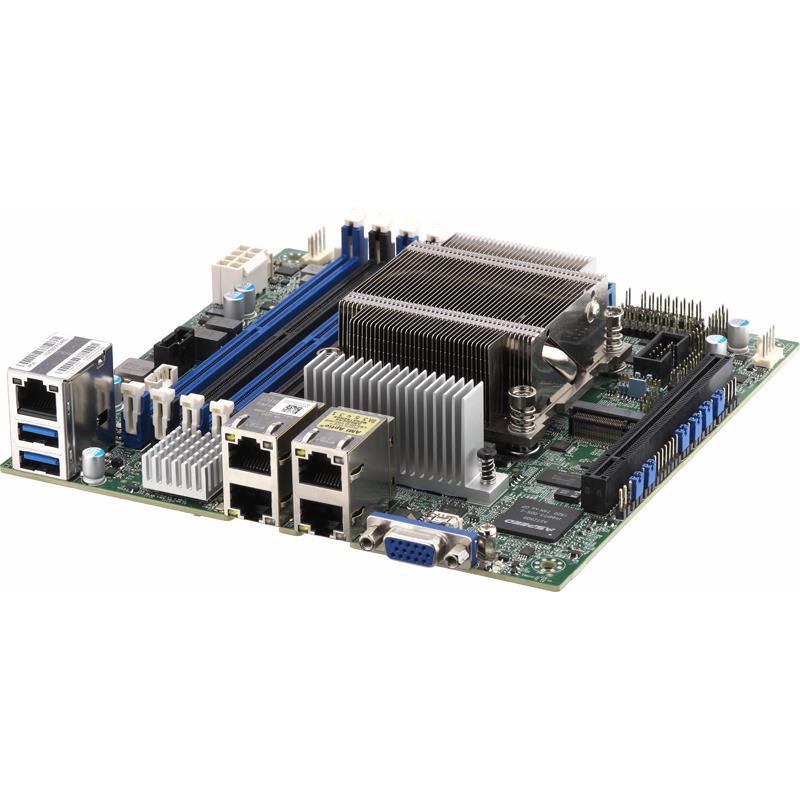

Supermicro M11SDV-8C-LN4F Motherboard Mini-ITX Embedded AMD EPYC 3251 Processor
• 1 PCI-E 3.0 x16 slot; 1 M.2 PCI-E 3.0 x4
• Single AMD EPYC 3251 8 Core/16 Thread
• 4x 1GbE LAN ports; 1x Dedicated IPMI LAN port
• Up to 512GB of memory; speeds of up to 2666MHz
Motherboard Mini-ITX, Embedded AMD EPYC 3251 SoC 2.50GHz, Processor 8-Core/16 Thread - Supports up to 512GB DDR4-2666Mhz DIMM in 4 memory slots, System on Chip chipset, onboard 4x 1GbE LAN port, 1x IPMI LAN port, 1x PCIe 3.0, 1x M.2 slot - MBD-M11SDV-8C-LN4F
• 1 COM port, TPM 2.0 header
• SoC controller for 4 SATA 3.0
• ASPEED AST2500 BMC graphics
• Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports
• 4 Gigabit Ethernet ports, 1 dedicated IPMI LAN
• 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key
• AMD EPYC 3251 SoC Processor, 8 Core/16 Thread, 50W
• Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs
• 3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring
Extra Specifications for Supermicro M11SDV-8C-LN4F Motherboard Mini-ITX Embedded AMD EPYC 3251 Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 6.7" x 6.7" (17cm x 17cm) | |
| Form Factor | Mini-ITX | |
| Processor | ||
| Cache/Core | 8 Core/16 Thread | |
| Compatible processor | Single AMD EPYC 3251 SoC Processor | |
| System Memory (per Node) | ||
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB | |
| System Memory | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| 4-channel memory bus | ||
| Supports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs | ||
| Cache Memory | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| Memory | ||
| Supply Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| 4x 1GbE with Intel I350-AM4 | ||
| USB | 2 USB 3.0 ports, 6 USB 2.0 ports | |

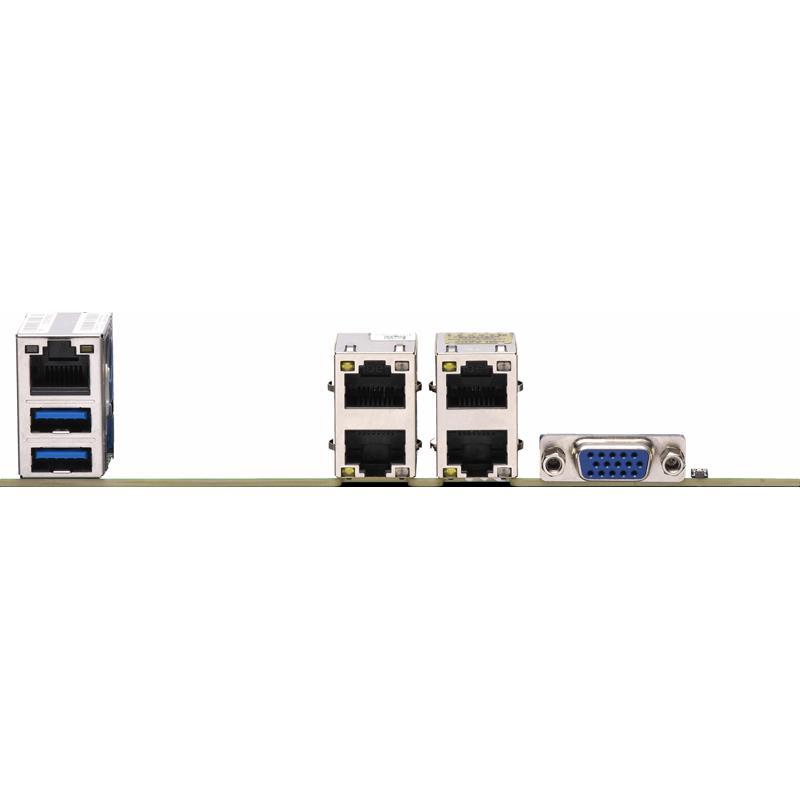

| Input / Output | ||
| SATA | SATA3 (6 Gbps) | |
| 4 SATA3 (6 Gbps) ports | ||
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| Others | 1 COM port header, 1 TPM 2.0 header | |
| VGA | 1 VGA port | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x16 slot | |
| M.2 | Key: M-key | |
| Form Factor: 2280 | ||
| Interface: 1 PCI-E 3.0 x4 | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb Flash EEPROM | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN | |
| PC Health Monitoring | ||
| CPU | CPU switching voltage regulator | |
| Supports system management utility | ||
| VBAT | ||
| Monitors CPU Core Voltages, +1.8V, +3.3V, +12V | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Dual Cooling Zone | ||
| Up to 3 fan status tachometer monitoring | ||
| Up to 3 4-pin fan headers | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| UID | ||
| Environmental Parameters | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| IC Temperature Sensing Logic | ||
| Thermal control for 6x Fan connectors | ||
| Operating Temperature | Non-operating Temperature: -40C to 70C (-40F to 158F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0C to 60C (32F to 140F) | ||
| Compatible Chassis | ||
| Compatible Chassis | SCE300, SCE301 | |
| Parts List | ||
| Cables | 4x CBL-0044L, 1x CBL-PWEX-0982, 1x CBL-PWEX-1063 | |
| Manual | 1x MNL-2172-QRG | |
| Motherboard | 1x MBD-M11SDV-8C-LN4F | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
