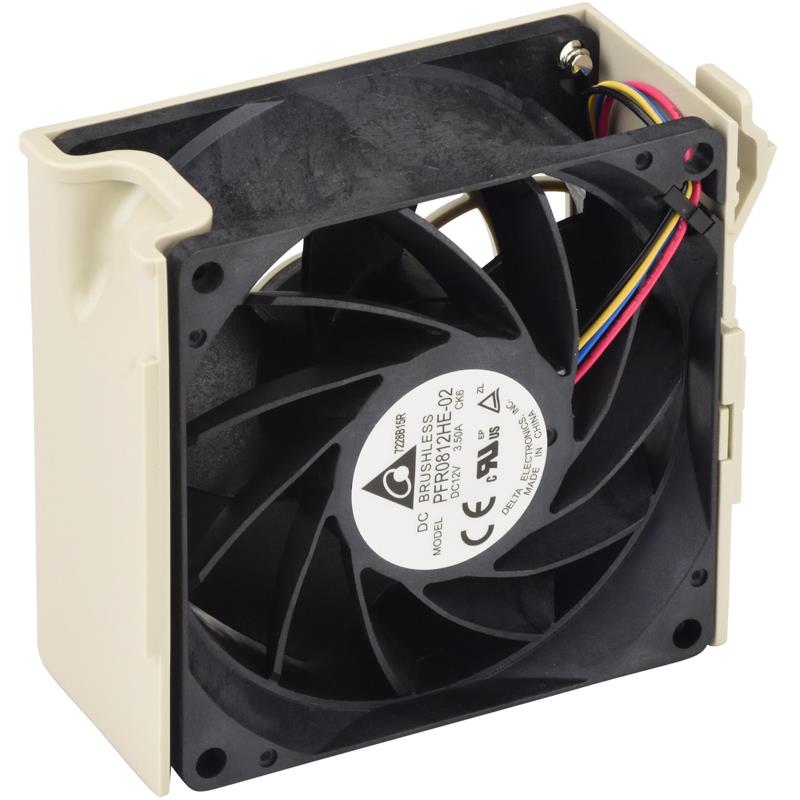

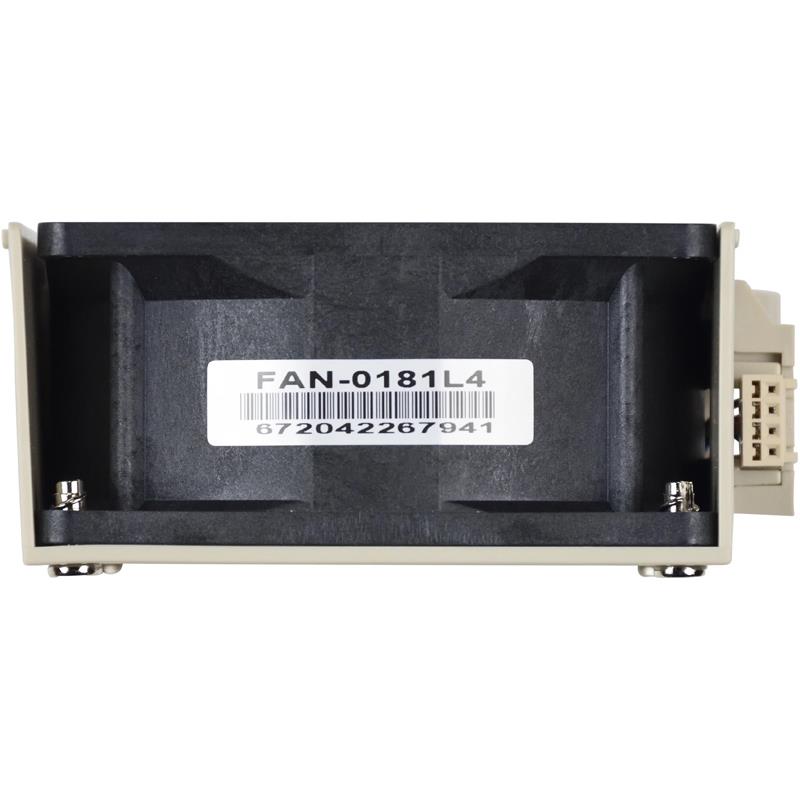

Supermicro FAN-0181L4 Hot-Swappable Middle Cooling Fan for X11
Supermicro FAN-0181L4 Hot-Swappable Middle Cooling Fan for X11
Supermicro FAN-0181L4 Hot-Swappable Middle Cooling Fan for X11

Supermicro FAN-0181L4 Hot-Swappable Middle Cooling Fan for X11

• Compatible with 2U+ Chassis
• Fan speed of 9.4K RPM; Hot-swappable
• Fully tested and validated by Supermicro

Hot-Swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis. 80x80x38 mm, 9.4K RPM

Ablecom (B8-08038ADE-005T001) FAN-0181L4 is a standard middle cooling fan intended to support 2U X11 Purley Platform with TDP up to 205w. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

Extra Specifications for Supermicro FAN-0181L4 Hot-Swappable Middle Cooling Fan for X11

Main Specifications
Device TypeMiddle Axial Fan
Dimensions (WxDxH)80L x 80H x 38W (mm)
Rated Current (A)1.23A
Pin Connector4-Pin
Fan
Fan Diameter80mm
Fan Speed9400 RPM
Noise (dBA)62 dBA
Air Flow (Total)103.2 CFM
Miscellaneous
Compatible ServersCSE-213AC-R1K23LPB, CSE-213AC8-R1K23WB, CSE-825TQC-R1K03LPB, CSE-825TQC-R1K03WB, CSE-825TQC-R802LPB, CSE-825TQC-R802WB, CSE-LA25TQC-R609LP, CSE-LA26E1C4-R609LP
Environmental ComplianceRoHS and REACH compliant
FeaturesCompatible with General 2U+ Chassis

Warranty:3 years, 120 days advance replacement (doa)
Coverage:Replacement or repair
Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
