- Supermicro PWS-2K21A-2R Power Supply 2200W 80 Plus Titanium Leve

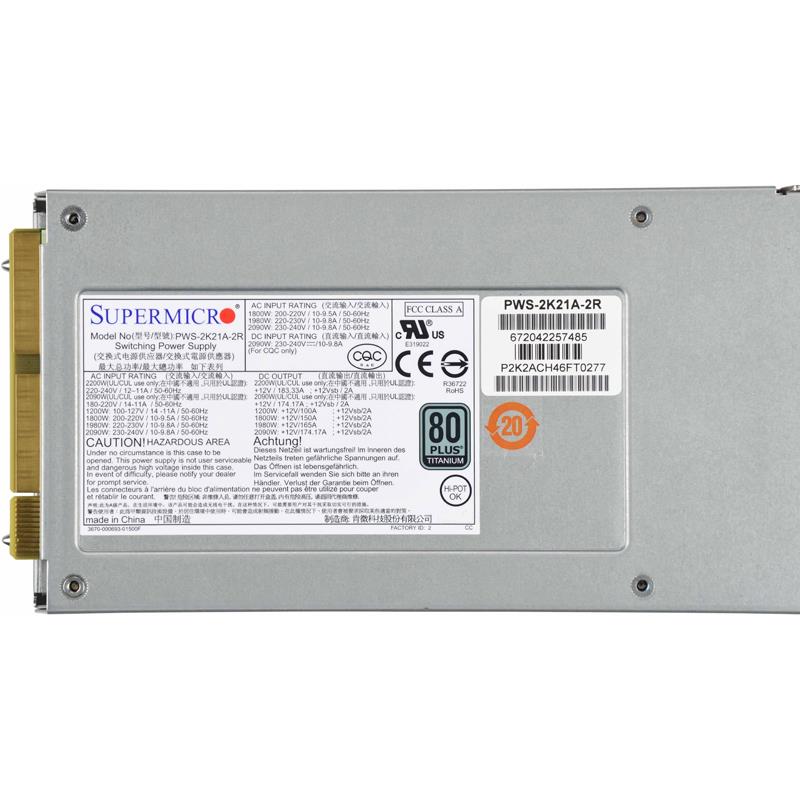

Supermicro PWS-2K21A-2R Power Supply 2200W 80 Plus Titanium Leve
• Supplying 2200W output power with PMBus
• Flexible Redundancy Control; 80 Plus Titanium
• Enjoy simplicity of active power factor correction
Power Supply 2200W 80 Plus Titanium Level PMBus - 220-240 Vac / 12-11 A / 50-60 Hz, Gold Finger (Connector on M/P)
The Supermicro PWS-2K21A-2R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 2U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current and short-circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and are certified by Supermicro.
Extra Specifications for Supermicro PWS-2K21A-2R Power Supply 2200W 80 Plus Titanium Leve
Main Specifications | ||
Device Type | Power supply | |
Dimension(s) (WxDxH) | 106.5 x 82.4 x 203.5 mm | |
Miscellaneous | ||
Features | Redundant | |
Compliant Standards | RoHS and REACH compliant | |
Power Supply | ||
+12V | Max: 100A / Min: 0A (1200W), Max: 150A / Min: 0A (1800W), Max: 165A / Min: 0A (1980W), Max: 174.17A / Min: 0A (2090W), Max: 183.3A / Min: 0A (2200W), Max: 174.17A / Min: 0A (2090W) | |
Certification | 80 PLUS Titanium | |
Power Device | ||
Output Connectors | Gold Finger (connector on M/P) | |
PMBUS | PMBus | |
Power Provided | 2200W |
