| System Memory |
| DIMM Sizes | 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz |
| Memory Type | 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® C246 |
| IPMI | ASPEED AST2500 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| Network Controllers | Single LAN with Intel® PHY I219LM LAN controller |
| Single LAN with Intel® Ethernet Controller I210-AT, Shared with IPMI |
| SATA | Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| LAN | 2 1GbE LAN ports |
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A) |
| 4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A) |
| Serial Port | 1 COM Port(s) (1 header) |
| DOM | 1 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 128MB UEFI |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off |
| Software | SuperDoctor® 5, SUM , SSM , IPMI2.0 , Watchdog |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | Low noise fan speed control |
| 5 fans with tachometer status monitoring |
| Fan speed control |
| PWM fan speed control |
| LED | Standby alert LED |
| Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector |
| Voltage | VBAT, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages |
| Product SKUs |

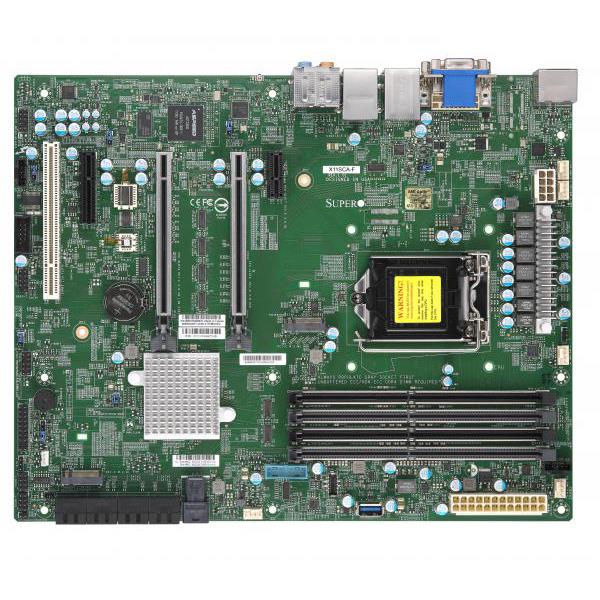

| Product SKUs | MBD-X11SCA-F |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP |
| Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x4, |
| 1 - 5V PCI 32bit |
| 1 PCIe 3.0 x1, |
| 2 PCIex16 slots are running at NA/16, or 8/8 |
| M.2 | Key: M-Key |
| Form Factor: 2242/2260/2280/22110 |
| M.2 Interface: 2 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
