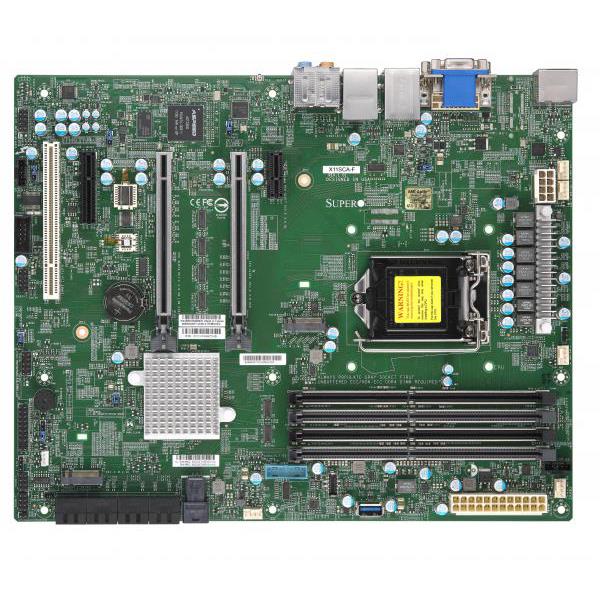

- Supermicro X11SCA-F Motherboard ATX Single Socket LGA-1151 Intel Xeon E-2100/E-2200 Processor and Intel Core i9/Core i7/Core i5/Core i3 8th/9th Generation
Supermicro X11SCA-F Motherboard ATX Single Socket LGA-1151 Intel Xeon E-2100/E-2200 Processor and Intel Core i9/Core i7/Core i5/Core i3 8th/9th Generation
Supports Intel Xeon E-2100/2200 Processor
Up to 128GB DDR4-2666MHz UDIMM in 4 DIMM slots
Offers Intel C246 controller SATA3 (6 Gbps) with RAID
On-Board 2 1GbE LAN ports, 1 SATA DOM, 8 SATA3 ports
Motherboard ATX Supports Single Socket LGA-1151 (Socket H4), Supporting Intel Xeon E-2100/E-2200 Processor, 8th/9th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor - Up to 128GB DDR4-2666Mhz DIMM in 4 memory slots, Intel C246 chipset, onboard 2x 1GbE LAN port, 4x PCIe 3.0, 1x PCI, 2x M.2 slot - MBD-X11SCA-F
1. 8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Intel® Xeon® E-2100 Processors, Intel® Xeon® E-2200 Processors, Single LGA-1151 (Socket H4), Up to 95W TDP
2. Intel® C246
3. Single LAN with Intel® Ethernet Controller I210-AT Shared with IPMI Single LAN with Intel® PHY I219LM LAN controller
4. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
5. 1 PCIe 3.0 x4, 1 PCIe 3.0 x1, 2 PCIex16 slots are running at NA/16, or 8/8 1 - 5V PCI 32bit M.2 Interface: 2 PCIe 3.0 x4 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key M.2#1 is shared with PCIex4 slot, M.2#2 is shared with U.2 U.2 Interface: 1 PCIe 3.0 x4
6. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port, Intel UHD P630 graphic(For Xeon E-21xxG/E-22xxG series only)
Extra Specifications for Supermicro X11SCA-F Motherboard ATX Single Socket LGA-1151 Intel Xeon E-2100/E-2200 Processor and Intel Core i9/Core i7/Core i5/Core i3 8th/9th Generation
| System Memory | ||
| DIMM Sizes | 2GB, 4GB, 8GB, 16GB, 32GB | |
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz | ||
| Memory Type | 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® C246 | |
| IPMI | ASPEED AST2500 | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| Network Controllers | Single LAN with Intel® PHY I219LM LAN controller | |
| Single LAN with Intel® Ethernet Controller I210-AT, Shared with IPMI | ||
| SATA | Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 888S HD Audio | |
| Input / Output | ||
| LAN | 2 1GbE LAN ports | |
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) | |
| USB | 2 USB 2.0 port(s) (2 via header) | |
| 4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A) | ||
| 4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A) | ||
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | 128MB UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off | |
| Software | SuperDoctor® 5, SUM , SSM , IPMI2.0 , Watchdog | |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | Low noise fan speed control | |
| 5 fans with tachometer status monitoring | ||
| Fan speed control | ||
| PWM fan speed control | ||
| LED | Standby alert LED | |
| Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector | |
| Voltage | VBAT, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages | |
| Product SKUs | ||
| Product SKUs | MBD-X11SCA-F | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) | |
| Processor | ||
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP | |
| Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4, | |
| 1 - 5V PCI 32bit | ||
| 1 PCIe 3.0 x1, | ||
| 2 PCIex16 slots are running at NA/16, or 8/8 | ||
| M.2 | Key: M-Key | |
| Form Factor: 2242/2260/2280/22110 | ||
| M.2 Interface: 2 PCIe 3.0 x4 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
