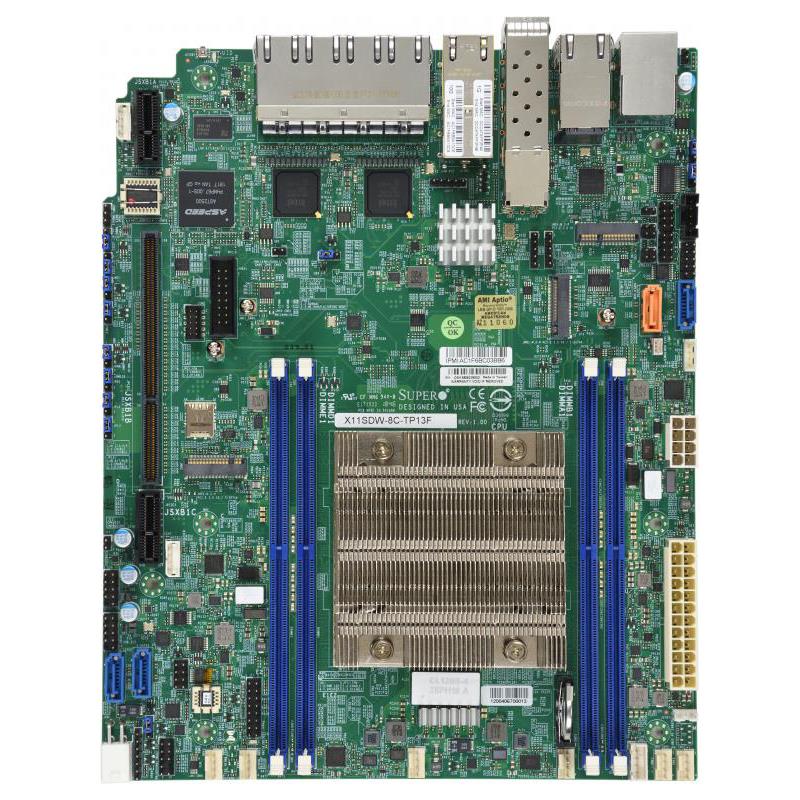

Supermicro X11SDW-8C-TP13F Motherboard Proprietary WIO Embedded Intel Xeon D-2146NT Processor
Powered by 8‑core Intel Xeon D‑2146NT processor
Supports up to 512 GB ECC DDR4 memory in 4 DIMM slots
Includes quad 1GbE, dual 10G SFP+, and dual 10GBase‑T LAN ports
4 SATA3 (6 Gbps) ports via SoC controller plus multiple M.2 expansion slots
Motherboard Proprietary WIO, Embedded Intel Xeon D-2146NT Processor, 2.30GHz 8-Core/16 Thread. - Supports up to 512GB DDR4-2666Mhz DIMM in 4 memory slots, System on Chip, onboard 9x 1GbE LAN port, 2x 10GBase-T LAN port, 2x 10G SFP+ LAN ports, 1x PCIe 3.0, 3x M.2 slot - MBD-X11SDW-8C-TP13F
1. Supports 12V DC power input
2. Intel® Xeon® Processor D-2146NT., Single Socket FCBGA-2518 supported, CPU TDP support Up to 80W TDP
3. Intel Quick Assist Technology
4. Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
5. 1 PCIe 3.0 x32 Left Riser Slot 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110 1 M.2 E-Key PCIe 3.0 x1, 2230 1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 2242/3042
6. SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Quad LAN with Intel® Ethernet Controller I350-AM4 Dual LAN with 10G SFP+ LAN via SoC Dual LAN with 10Gbase-T Quad LAN with 1GbE with Inte® I350-AM4 Single LAN with 1GbE with Intel® I210 Total 13 LAN ports Single LAN with Realtek RTL8201N PHY (dedicated IPMI)
8. System on Chip
9. 1 VGA port, Header Only
Extra Specifications for Supermicro X11SDW-8C-TP13F Motherboard Proprietary WIO Embedded Intel Xeon D-2146NT Processor
| System Memory | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 512GB ECC LRDIMM, DDR4-2133MHz; Up to 256GB ECC RDIMM, DDR4-2133MHz | ||
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz) | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2500 | |
| Graphics | Header Only | |
| 1 ASPEED AST2500 BMC port(s) | ||
| Network Controllers | Dual LAN with 10G SFP+ LAN via SoC | |
| Dual LAN with 10Gbase-T | ||
| Single LAN with Realtek RTL8201N PHY (dedicated IPMI) | ||
| Quad LAN with 1GbE with Intel® I350-AM4 | ||
| Quad LAN with Intel® Ethernet Controller I350-AM4, Total 13 LAN ports | ||
| Single LAN with 1GbE with Intel® I210 | ||
| SATA | SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Input / Output | ||
| SATA | 4 SATA3 port(s) | |
| LAN | 2 RJ45 10GBase-T ports | |
| 2 10G SFP+ LAN ports | ||
| 1 RJ45 Dedicated IPMI LAN port | ||
| 9 RJ45 Gigabit Ethernet LAN ports | ||
| Video Output | 1 VGA port(s) | |
| USB | 4 USB 2.0 port(s) (4 via header) | |
| 2 USB 3.1 Gen1 port(s) (2 rear type A) | ||
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 1 Super DOM (Disk on Module) port with build power | |
| TPM | 1 TPM Header & Chip both | |
| System BIOS | ||
| BIOS Features | UEFI 2.7 | |
| ACPI 6.1 | ||
| SMBIOS 3.1 | ||
| PCI FW 3.2 | ||
| BIOS Type | 256MB UEFI | |
| Management | ||
| Power Configurations | ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection | |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, Intel® Node Manager, IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | 6x 4-pin fan headers (up to 6 fans) | |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Overheat LED indication | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Other Features | WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology | |
| Voltage | System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages, 5 (4-pin) | |
| Temperature | Monitoring for CPU and chassis environment | |
| Product SKUs | ||
| Product SKUs | MBD-X11SDW-8C-TP13F | |
| Physical Stats | ||
| Form Factor | Proprietary WIO | |
| Dimension | 8" x 9.6" (20.32cm x 24.38cm) | |
| Processor | ||
| CPU | Intel® Xeon® Processor D-2146NT | |
| Single Socket FCBGA-2518 supported, CPU TDP supports Up to 80W TDP | ||
| Core | Up to 8 cores, 16 threads | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x32 Left Riser Slot | |
| M.2 | Key: M-Key, E-Key, B-Key | |
| M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x1; 1 SATA/PCIe 3.0 x2/USB 3.0 | ||
| Form Factor: 2280/22110, 2230, 2242/3042 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
