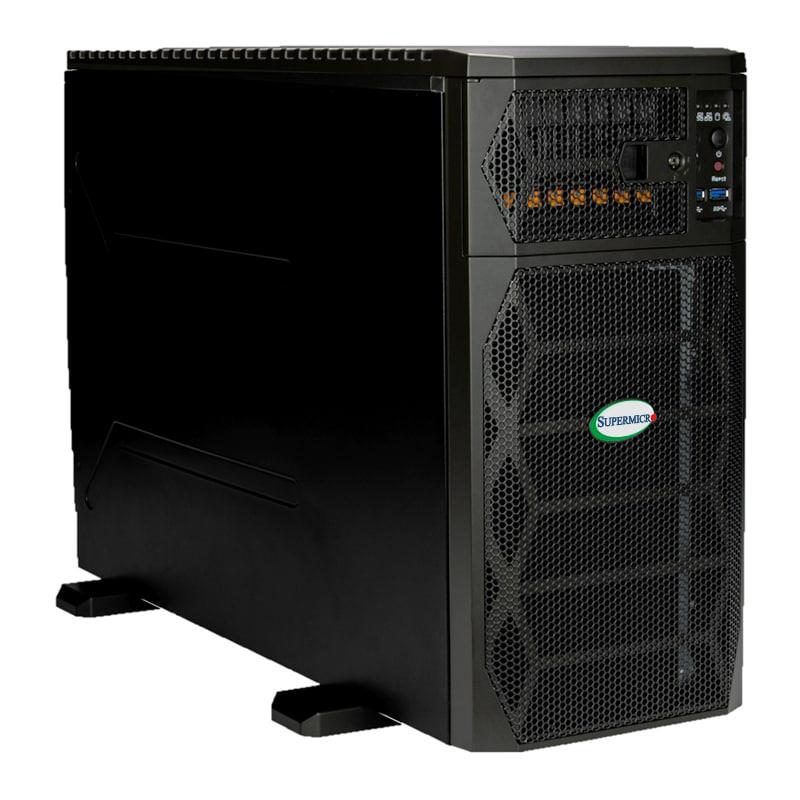

Supermicro SYS-751GE-TNRT-NV1 GPU SuperServer Includes 2x Intel Xeon Scalable 6444Y Processor 16x 32GB DDR5 Memory, 6x 1.92TB NVMe Drives, 4 x A100 GPUs
• High Performance Computing
• AI/Deep Learning Training
• AI Development
5U SuperServer with Intel Xeon Scalable 6444Y Processor 4th Generation (16-Core at 3.6GHz). 16x 32GB DDR5-4800MHz ECC RDIMM, 6x 1.92TB NVMe Drives RAID 1 (OS), 4x 1.92TB NVMe Drives (Data), 4 x A100 GPUs. Network Connectivity: 1 RJ45 1GbE (Dedicated IPMI Port), 1 SFP28 25GbE, 2 RJ45 10GbE, 2200W Redundant Power Supply - (CSE-759TS-R2K21BP + X13DEG-QT) SYS-751GE-TNRT-NV1 - Complete System
1. Acoustically optimized for quiet operation Closed-loop liquid cooling for CPUs and GPUs
2. 4 liquid-cooled NVIDIA A100 GPUs with NVIDIA® NVLink™ (2+2) installed
3. Dual 4th Gen Intel® Xeon® Scalable Processors, 6444Y (16 cores at 3.6Ghz) installed
4. Dual-port active-cooled NVIDIA Connect-X6 Dx 25G Network Adapter installed
5. Supermicro Cloud Orchestrator AI software stack
6. Ubuntu 22.04 LTS installed
Extra Specifications for Supermicro SYS-751GE-TNRT-NV1 GPU SuperServer Includes 2x Intel Xeon Scalable 6444Y Processor 16x 32GB DDR5 Memory, 6x 1.92TB NVMe Drives, 4 x A100 GPUs
| Product SKUs | ||
| Product SKUs | SYS-751GE-TNRT-NV1 | |
| Motherboard | ||
| Motherboard | Super X13DEG-QT | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 4th Gen Intel® Xeon® Scalable processors | ||
| Cores | 16C; 30MB Cache | |
| Note | Dual 4th Gen Intel® Xeon® Scalable 6444Y (16 cores at 3.6Ghz) installed | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 4800MHz ECC DDR5 DRAM | ||
| 512GB: 16x 32 GB DRAM | ||
| Note | 16x 32GB 4800MHz ECC DDR5 RDIMM DRAM installed | |
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550-AT2 | |
| 1x 1GbE BaseT with ASPEED AST2600 | ||
| 1x 25GbE SFP28 with NVIDIA Connect-X-6 Dx | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 2 SuperDOM port(s) | |
| 2 SlimSAS port(s) | ||
| NVMe | 4 NVMe U.2 | |
| LAN | 1 RJ45 1GbE (Dedicated IPMI port) | |
| 1 SFP28 25GbE | ||
| 2 RJ45 10GbE | ||
| USB | 2 USB 3.2 Gen1x2; port(s) (2 Front_USB) | |
| 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) | ||
| 3 USB 3.2 Gen1 port(s) (3 Rear_USB) | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 8+4 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | Tower or 5U Rackmount | |
| Model | CSE-759TS-R2K21BP | |
| Dimensions and Weight | ||
| Height | 8.6" (218.4mm) | |
| Width | 17.9" (454.7mm) | |
| Depth | 27.6" (701mm) | |
| Package | 25.8" (H) x 15.3" (W) x 37.6" (D) | |
| Weight | Net Weight: 88 lbs (44 kg) | |
| Gross Weight: 121 lbs (55 kg) | ||
| Available Color | Black Front & Black Body | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| Reset button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Information LED | ||
| Network 1 activity LED | ||
| Network 2 activity LED | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 7 PCIe 5.0 x16 FHFL slot(s) | |
| Note | 4 NVIDIA Liquid-cooled A100, NVIDIA RTX A4000, NVIDIA Connect-X6 Dx 25G Network adapter installed | |
| Drive Bays / Storage | ||
| Hot-swap | 8x 2.5" hot-swap NVMe/SATA drive bays (2 1.92TB NVMe Drives RAID 1 (OS), 4 1.92TB NVMe Drives (Data) installed) | |
| M.2 | 2 M.2 NVMe | |
| System Cooling | ||
| Fans | 1 fan 8CM Fan(s) | |
| 2 fan 12CM Fan(s) | ||
| Power Supply | ||
| Dimension (W x H x L) | 106.5 x 82.1 x 203.5 mm | |
| AC Input | 1800W: 200-220Vac / 9.5A-10A / 50-60Hz | |
| 2090W: 230-240Vac / 9.8A-10A / 50-60Hz | ||
| 1200W: 100-127Vac / 9.5A-12A / 50-60Hz | ||
| 1980W: 220-230Vac / 9.5A-10A / 50-60Hz | ||
| 2200W: 220-240Vac / 9.6A-11.8A / 50-60Hz (UL/cUL only) | ||
| 2090W: 230-240Vdc / 9.8A-10A / 50-60Hz (China only) | ||
| Output Type | Backplanes (connector) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C ~ 25°C (50°F ~ 77°F) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
