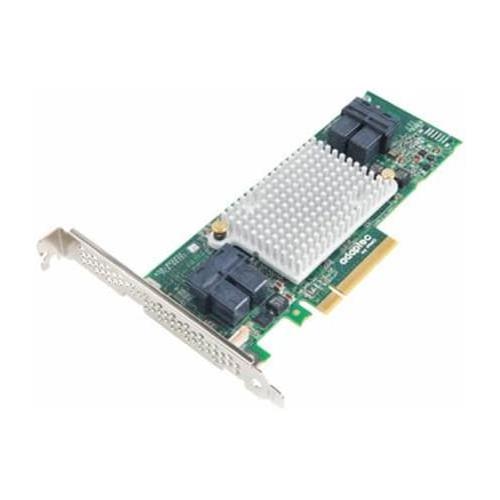

Supermicro AOC-SAS3-1000-16I Adaptec HBA 16 Internal Ports 12Gb/s SAS3 PCI-Express

Supermicro AOC-SAS3-1000-16I Adaptec HBA 16 Internal Ports 12Gb/s SAS3 PCI-Express

  • 16 internal ports, low-profile/MD2 form factor

  • PCI-Express (PCIe Gen 3 8x) Host Bus Adapter (HBA)

  • Up to 12Gb/s SAS data rates using mini-SAS HD connectors

  • Provides economical non-RAID I/O SAS and SATA connectivity

Adaptec HBA (Host Bus Adapter), PCI-Express (PCIe Gen 3 8x), low-profile MD2, 16x Internal Ports - Connectors: Four mini SAS HD (SFF-8643), Data Transmission Rate: 12 Gb/s per port, Connectivity: non-RAID I/O SAS and SATA - (AOC-SAS3-1000-16I)

$ 0.00$ 0.000.0USD

$ 0.00

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Microsemi Adaptec HBA 1000-16i

    16 internal ports, low-profile/MD2 form factor, PCI-Express (PCIe Gen 3 8x) Host Bus Adapter (HBA) running the latest unified Smart storage stack, provides economical non-RAID I/O SAS and SATA connectivity with the hard disk, tape, solid state drives, expanders, and backplanes at up to 12Gb/s SAS data rates using mini-SAS HD connectors

    Extra Specifications for Supermicro AOC-SAS3-1000-16I Adaptec HBA 16 Internal Ports 12Gb/s SAS3 PCI-Express

    Main Specifications
    Device TypeHBA card
    Interface (Bus) TypePCI Express 3.0 x8
    Form FactorMD2-Low Profile
    Dimensions (WxDxH)2.535"H x 6.6"L (64mm x 167mm)
    Power (W)9.4W
    Networking
    Ports16 Internal Ports
    Data Transfer Rate12 Gb/s per port
    Connectivity
    ConnectorsFour internal mini SAS HD (SFF-8643)
    Power
    Operating Voltage0.3A @ 3.3V, 0.9A @ 12V
    Software / System Requirements
    OS SupportsMicrosoft Windows, Red Hat Linux, SUSE Linux, CentOS, Ubuntu Linux, VMware ESXi
    Power Supply
    CertificationCE, FCC, UL, C-tick, VCCI, KCC, CNS
    Miscellaneous
    Environmental ComplianceRoHS Compliant
    MTBF2 million hours
    FeaturesSupport for up to 256* SAS/SATA target devices, Multi-LUN support, SAS expander support, TLR, SATA NCQ, Hot Plug Drive, S.M.A.R.T., Enclosure Management, SES-2, SES-3, SFF-8485, SGPIO, SFF-8489, IBPI, BMC Support, 238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management.

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:120 days of overnight replacement
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Adaptec
    Type of Support:FULL
    Phone No.:408-934-7274
    URL:Click here for Manufacturer Website
