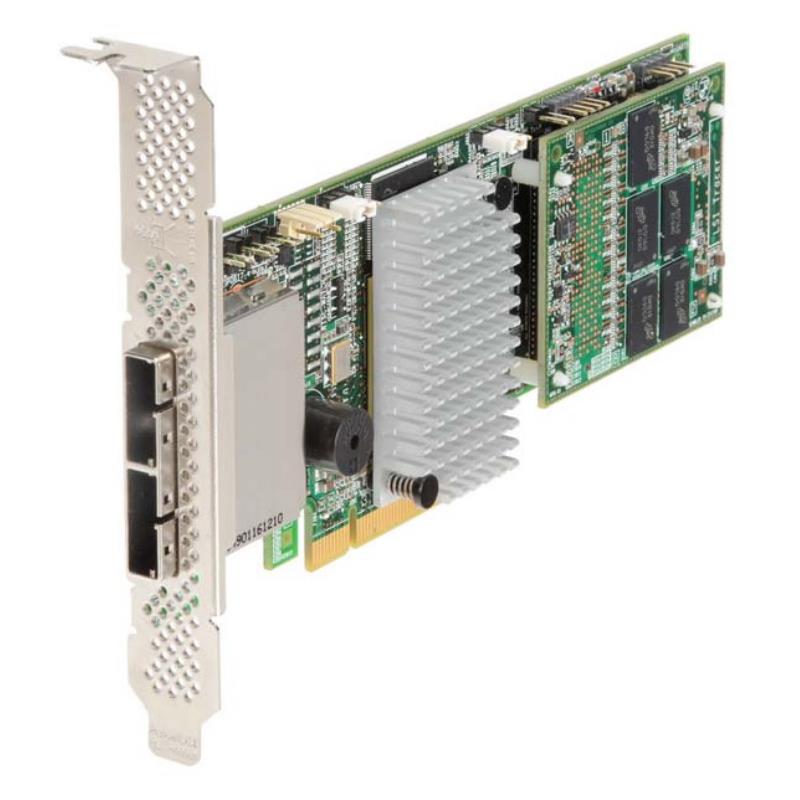

Supermicro AOC-SAS3-9286-8E LSI00356 Syncro 9286-8E KIT 8 External Port 12Gb/s SAS3 PCI-Express x8

Planned and unplanned failover modes
Shared and exclusive VD I/O access policies
PCIe x8 card that can operate in x8 or x16 slots

Kit of 2 Syncro 9286-8e RAID Controller, PCI-Express x8, Low Profile, 8x External Port, Data Transmission Rate: 12Gb/s SATA and SAS Ports, Connectivity: non-RAID I/O SAS and SATA - (AOC-SAS3-9286-8E)

Dual-active HA with shared storage
Controller-to-controller intercommunication over SAS
Write-back cache coherency
CacheCade 1.0 (Read)
Shared and exclusive VD I/O access policies
Operating system boot from the controller (exclusive access)
Controller hardware and property mismatch detection, handling, and reporting
Global hot spare support for all volumes in the HA domain
Planned and unplanned failover modes
CacheVault provides cache cached data protection in case of host power loss or server failure

Extra Specifications for Supermicro AOC-SAS3-9286-8E LSI00356 Syncro 9286-8E KIT 8 External Port 12Gb/s SAS3 PCI-Express x8

Main Specifications
Device Type	RAID controller card
Form Factor	Low Profile
Interface (Bus) Type	PCI-Express x8
Connectivity
Connectors	Two external Mini-SAS SFF8088
Performance
Internal Data Rate	12Gb/s

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	120 days of overnight replacement
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	BROADCOM
Type of Support:	FULL
Phone No.:	800-225-5224
URL:	Click here for Manufacturer Website
