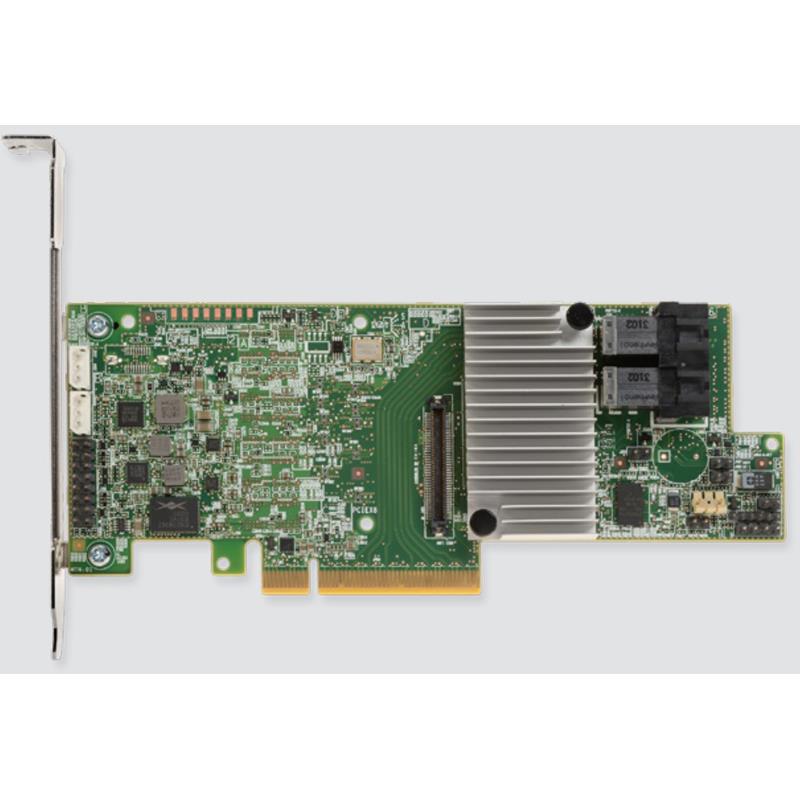

Supermicro AOC-SAS3-9361-8I2G MegaRAID SAS 9361-8i 2GB Storage Controller 8 Internal Ports 12Gb/s
Eight internal 12 Gb/s SATA+SAS ports
High-performance 12 Gb/s data transfer rates
SAS3108: 1.2 GHz PowerPC 476 dual-core 12 Gb/s ROC
Two mini-SAS SFF8643 internal connectors (horizontal mount)
MegaRAID 9361-8i (2G) Storage Controller, PCI-Express x8, Low Profile, 8x Internal Ports Using Two mini-SAS SFF8643 internal Connectors, Data Transmission Rate: 12Gb/s SATA and SAS Ports, RAID levels 0, 1, 5, 6, 10, 50, and 60, LSI00462/05-25420-17 - (AOC-SAS3-9361-8I2G)
The explosive growth of data in cloud and enterprise data centers is driving the need for a higher performance storage interface to accelerate the ability of critical applications to access data. Broadcom first-to-market 12 Gb/s SAS solutions are designed to deliver the performance and data protection capabilities required for the most demanding next-generation server and storage platforms. Offering up to double the data transfer rate of 6 Gb/s SAS solutions, 12 Gb/s SAS allows the SAS infrastructure to deliver bandwidth that can fully utilize that of PCI Express 3.0 with a single controller card. The MegaRAID® SAS 9361-8i, with eight internal ports, delivers two 1.2 GHz PowerPC processor cores and a 72-bit DDR3 interface that drives 2 GB cache memory. Powered by the SAS3108 RAID-on-Chip (ROC), the 9361-8i controller includes the latest PCI Express 3.0 and 12 Gb/s SAS technology and helps users to support increased scaling of hard disk drives (HDDs) and maximize the performance benefits of solid state drives (SSDs).
Extra Specifications for Supermicro AOC-SAS3-9361-8I2G MegaRAID SAS 9361-8i 2GB Storage Controller 8 Internal Ports 12Gb/s
| Main Specifications | ||
| Device Type | SATA + SAS RAID Controller | |
| Interface (Bus) Type | x8 lane PCI Express 3.0 compliant | |
| Form Factor | MD2 Low profile (6.6 X 2.536) | |
| Supports | Up to 128 SAS and/or SATA devices | |
| Networking | ||
| Data Transfer Rate | Up to 12 Gb/s per port | |
| Controller Type | SAS3108 12 Gb/s dual-core ROC | |
| Ports | Eight internal 12 Gb/s SATA+SAS ports | |
| RAID | RAID levels 0, 1, 5, and 6, RAID spans 10, 50 and 60 | |
| Cache Memory | 1 GB 1866 MHz DDR3 SDRAM, 2 GB 1866 MHz DDH3 SDRAM | |
| Connectivity | ||
| Connectors | Two mini-SAS SFF8643 internal connectors (horizontal mount) | |
| Environmental Parameters | ||
| Operating Temperature | Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C | |
| Power | ||
| Operating Voltage | +3.3V, +12V | |
| Miscellaneous | ||
| Mega RAID Management Suite | MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) | |
| MTBF | 1,343,187 hours | |
| Features | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Auto resume after loss of system power during array rebuild or reconstruction (RLM), Single controller Multipathing, Load Balancing, Configurable stripe size up to 1 MB, Fast initialization for quick array setup, Check Consistency for background data integrity, SSD Support with SSD Guard™ technology, Patrol read for media scanning and repairing, 64 logical drive support, DDF compliant Configuration on Disk (COD), S.M.A.R.T. support, Global and dedicated Hot Spare with Revertible Hot Spare support, Automatic rebuild, Enclosure affinity, Emergency SATA hot spare for SAS arrays, Enclosure management: SES (inband), SGPIO (sideband), Databolt bandwidth optimizer technology support for compatible expander-based enclosures, Shielded state drive diagnostic technology | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
