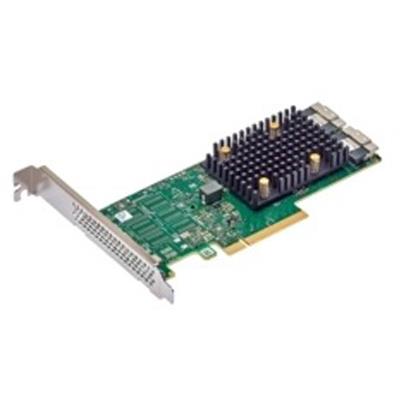

Supermicro AOC-SAS3-9500-16IN HBA 9500-16i Tri-Mode Storage Adapter 16 Internal Ports 12Gb/s PCI Express 4.0 x8

Supermicro AOC-SAS3-9500-16IN HBA 9500-16i Tri-Mode Storage Adapter 16 Internal Ports 12Gb/s PCI Express 4.0 x8

  • Ideal for Enterprise Data Center

  • Universal Bay Management (UBM) Ready

  • Connects up to 1024 SAS/SATA devices or 32 NVMe devices

9500-16i Tri-Mode HBA (Host Bus Adapter), PCI Express 4.0 x8, Low Profile, 16x Internal Ports - Connectors: Two x8 SFF-8654 (SlimSAS), Data Transmission Rate: 12Gb/s, Devices Supported: SAS/SATA: 1024, NVMe: 32, 05-50134-00 - (AOC-SAS3-9500-16IN)

$ 0.00$ 0.000.0USD

$ 0.00

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.


    With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.


    • Connects up to 1024 SAS/SATA devices or 32 NVMe devices

    • Provides maximum connectivity and performance for high-end servers and applications

    • Support critical applications with the bandwidth of PCIe® 4.0 connectivity

    • Universal Bay Management (UBM) Ready

    Extra Specifications for Supermicro AOC-SAS3-9500-16IN HBA 9500-16i Tri-Mode Storage Adapter 16 Internal Ports 12Gb/s PCI Express 4.0 x8

    Main Specifications
    Device TypeStorage Adapter HBA
    Interface (Bus) TypePCI Express 4.0 x8
    Form FactorFull height and low profile
    Dimensions (WxDxH)155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
    SupportsSAS/SATA: 1024, NVMe: 32
    Networking
    Ports16 Internal Ports
    Controller TypeSAS3816
    Connectivity
    Connectors2 x8 SFF-8654 (SlimSAS)
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Miscellaneous
    MTBF> 5,000,000 hours at 40° C
    Power Supply
    CertificationAustralia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
    Environmental
    Operating EnvironmentOperating temperature: 0°C to 55°C (32°F to 131°F)
    Operating: 10°C to 55°C, 20 to 80% non-condensing

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:BROADCOM
    Type of Support:FULL
    Phone No.:800-225-5224
    URL:Click here for Manufacturer Website
