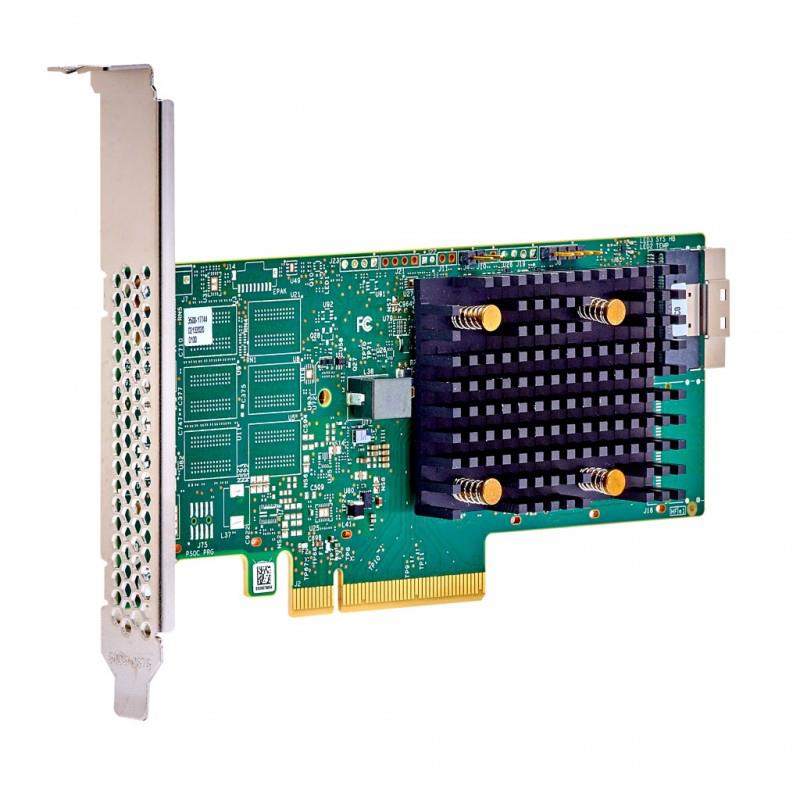

  2. Supermicro AOC-SAS3-9500-8IN HBA 9500-16i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0
Supermicro AOC-SAS3-9500-8IN HBA 9500-16i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0

Supermicro AOC-SAS3-9500-8IN HBA 9500-16i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0

  • Ideal for Enterprise Data Center

  • Universal Bay Management (UBM) Ready

  • PCIe Gen 4.0 HBA with eight internal ports

Broadcom Aero HBA 9500-8i Storage Adapter, x8 lane PCI Express 4.0, Full height and Low Profile, 8x Internal Ports - Connectors: One x8 SFF-8654 (SlimSAS), Data Transmission Rate: 12Gb/s, Devices Supported: SAS/SATA: 1024, NVMe: 32, 05-50134-01 - (AOC-SAS3-9500-8IN)

$ 0.00$ 0.000.0USD

$ 0.00

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.


    With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.


    • Connects up to 1024 SAS/SATA devices or 32 NVMe devices

    • Provides maximum connectivity and performance for high-end servers and applications

    • Support critical applications with the bandwidth of PCIe® 4.0 connectivity

    • Universal Bay Management (UBM) Ready

    Extra Specifications for Supermicro AOC-SAS3-9500-8IN HBA 9500-16i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0

    Main Specifications
    Device TypeStorage Adapter HBA
    Interface (Bus) TypePCI Express 4.0 x8
    Form FactorFull height and low profile
    Dimensions (WxDxH)155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
    Connectivity
    Connectors1 x8 SFF-8654 (SlimSAS)
    Networking
    Ports8 Internal port
    Controller TypeSAS3808
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Citrix XenServer, CentOS Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Miscellaneous
    MTBF> 5,000,000 hours at 40° C
    Environmental
    Operating EnvironmentOperating temperature: 0°C to 55°C (32°F to 131°F)
    Operating: 10°C to 55°C, 20 to 80% non-condensing
    Power Supply
    CertificationAustralia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:BROADCOM
    Type of Support:FULL
    Phone No.:800-225-5224
    URL:Click here for Manufacturer Website
