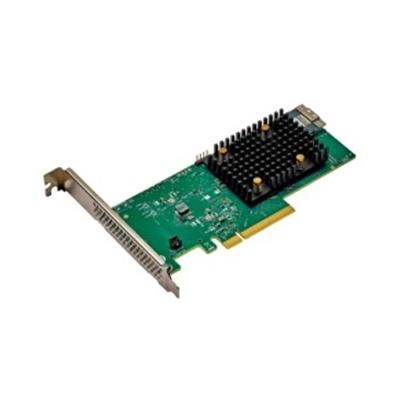

  2. Supermicro AOC-SAS3-9540-8I MegaRAID 9540-8i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0
Supermicro AOC-SAS3-9540-8I MegaRAID 9540-8i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0

Supermicro AOC-SAS3-9540-8I MegaRAID 9540-8i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0

  • Advanced security through hardware secure boot

  • Connect up to 63 SAS/SATA devices and 4 NVMe devices

  • Balance protection and performance for critical applications with RAID

  • Support critical, high-bandwidth applications with PCIe 4.0 connectivity

MegaRAID 9540-8i Controller Card, x8 lane PCI Express 4.0, Full height and Low Profile, 8x Internal Ports - Connectors: One x8 SFF-8654 (SlimSAS), Data Transmission Rate: 12Gb/s, SW RAID Levels: 0, 00, 1, 10, Devices Supported: SAS/SATA: 63, NVMe: 4, 05-50134-03 - (AOC-SAS3-9540-8I)

$ 0.00$ 0.000.0USD

$ 0.00

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9540-8i adapter, based on the SAS3808 PCIe 4.0 x8 IO Controller (IOC) device, delivers twice the performance of previous generations.


    Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9540-8i Tri-Mode Storage Adapter is a PCIe Gen 4.0 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.


    The adapters' Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enable the operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.

    Extra Specifications for Supermicro AOC-SAS3-9540-8I MegaRAID 9540-8i Tri-Mode Storage Adapter 8 Internal Ports 12Gb/s PCIe Gen 4.0

    Main Specifications
    Device TypeRAID Adapter Card
    Interface (Bus) TypePCI Express 4.0 x8
    Form FactorFH bracket
    Dimensions (WxDxH)155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
    SupportsSAS/SATA: 63, NVMe: 4
    Connectivity
    Connectors1 x8 SFF-8654 (SlimSAS)
    Networking
    Ports8 Internal port
    Data Transfer Rate12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
    RAID0, 00, 1, 10
    Controller TypeSAS3808
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Power Supply
    CertificationAustralia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
    Environmental Parameters
    Operating Temperature0C to 55C
    Miscellaneous
    MTBF>3,000,000 hours at 40° C

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:BROADCOM
    Type of Support:FULL
    Phone No.:800-225-5224
    URL:Click here for Manufacturer Website
