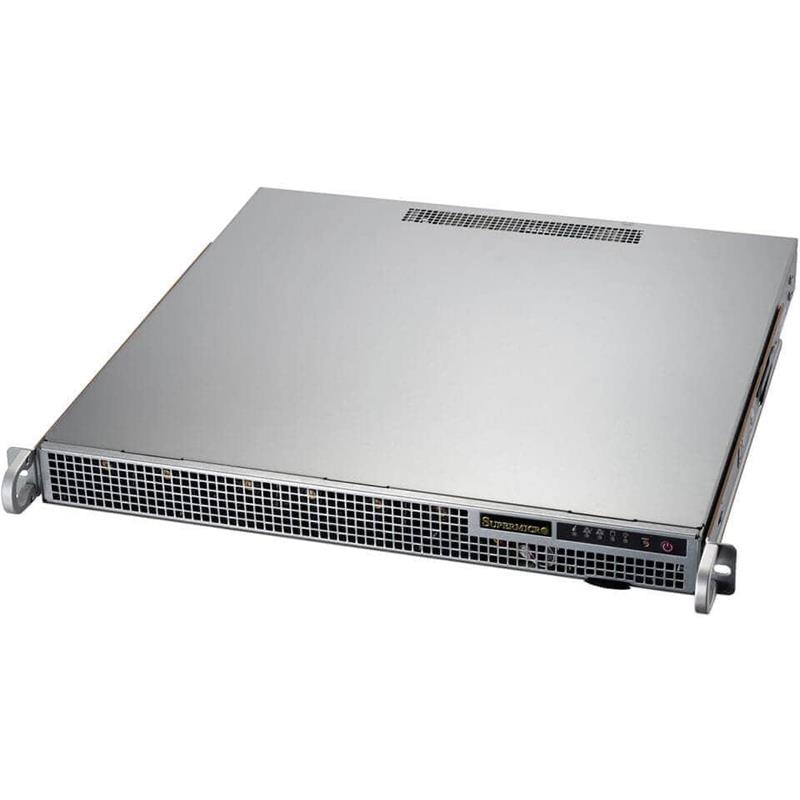

Supermicro AS-1015A-MT Mainstream A+ Server 1U Barebone Single AMD Ryzen 7000 Series Processor
• Web/Hosting Application
• Email/Firewall/Application Server
• Designed for small and medium businesses
Barebone 1U Rackmount SuperServer, Support Single Socket LGA-1718 (Socket AM5), Supporting AMD Ryzen 7000 Series Processors (Up to 16-Core/32Thread). Up to 192GB in 4 DIMM slots, ECC DDR5 UDIMM, NVIDIA PCIe: RTX A4000, L4, A2 and AMD PCIe: Radeon Pro W7500, Chipset: AMD B650, On-Board: SATA (6Gbps), VGA Port, Rear Audio, 1x Internal Fixed 3.5in SATA Drive Bay, 2x M.2 PCIe 5.0 x4 NVMe Slot (M-key 2280/22110), Network Connectivity: 1x IPMI 2.0 + KVM with Dedicated LAN (1GbE), 2x 1GbE LAN, 500W Power Supply - (CSE-514-505 + H13SAE-MF) - AS-1015A-MT
1. AMD EPYC™ 4004 Series Processor up to 170W TDP
2. 4x DDR5 UDIMM Slots, ECC/Non-ECC DDR5-5200 Up to total 192GB
3. 1x PCIe 5.0 x16 (FHHL) slot
4. IPMI 2.0 + KVM with Dedicated LAN (1GbE) 2x 1GbE LAN (Intel® I210-AT)
5. 500W High-Efficiency Power Supply Platinum Level Certified
Extra Specifications for Supermicro AS-1015A-MT Mainstream A+ Server 1U Barebone Single AMD Ryzen 7000 Series Processor
| System Memory | ||
| Memory Voltage | 1.1V | |
| Memory | View Memory Options | |
| Slot Count: 4 DIMM slots | ||
| Max Memory (2DPC): Up to 192GB 5200MT/s ECC DDR5 UDIMM | ||
| On-Board Devices | ||
| Chipset | AMD B650 | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 2 RJ45 1GbE with Intel® I210-AT | ||
| SATA | SATA (6Gbps) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI | |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor | |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Network Activity LEDs | ||
| Power Supply | ||
| Certification | Platinum Level | |
| [Test Report] | ||
| Dimension (WxHxL) | 100 x 40 x 180 mm | |
| +12V | Max: 41A / Min: 0.5A (100Vac-240Vac) | |
| 5V SB | Max: 3A / Min: 0A | |
| AC Input | 500W: 100-240Vac / 50-60Hz | |
| Output Type | 24pin ATX | |
| Product SKUs | ||
| Product SKUs | AS -1015A-MT | |
| Motherboard | ||
| Motherboard | Super H13SAE-MF | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD Ryzen™ 7000 Series Processors | ||
| Core Count | Up to 16C/32T | |
| Note | Supports 60W - 170W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 single-width GPU(s) | |
| Supported GPU | View GPU Options | |
| AMD PCIe: Radeon Pro W7500 | ||
| NVIDIA PCIe: RTX A4000, L4, A2 | ||
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |

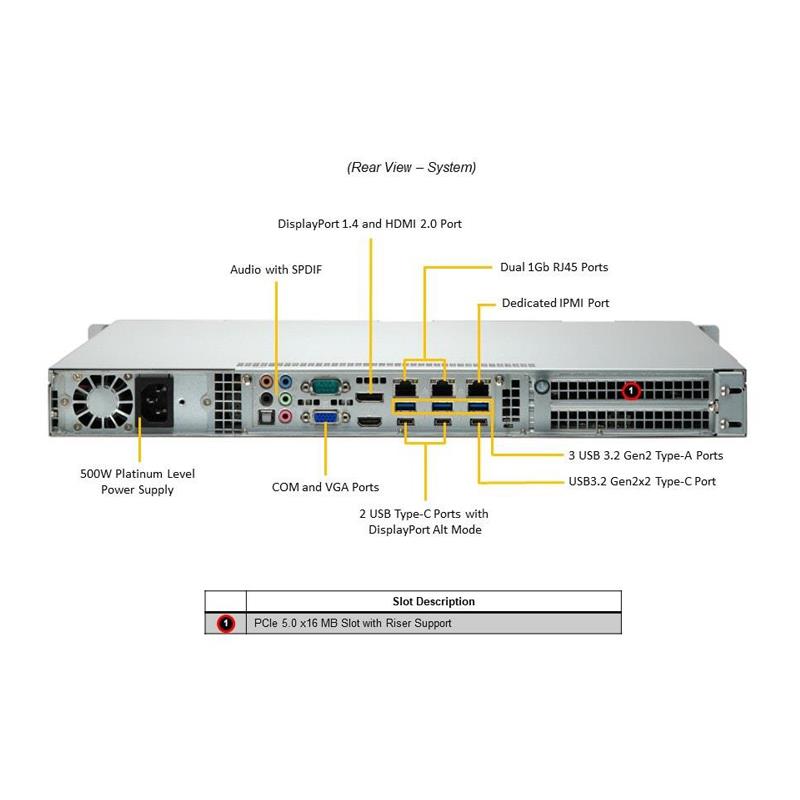

| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| USB | 3 Type-A port(s) (Rear) | |
| 2 Type-C port(s) (Rear) | ||
| 1 Type-C port(s) (Rear) | ||
| Video | 1 VGA port(s) | |
| 1 HDMI 2.0 port(s) | ||
| 1 DisplayPort 1.4 port(s) | ||
| Audio | Rear Audio | |
| TPM | 1 TPM header | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI 6.0 | |
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-514-505 | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 16.9" (429 mm) | |
| Package | 8" (H) x 27" (W) x 24" (D) | |
| Weight | Gross Weight: 16 lbs (7.26 kg) | |
| Available Color | Silver | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 1 bay(s) 1 internal fixed 3.5" SATA drive bay(s) | ||
| 1 internal fixed 3.5" SATA drive bay(s) | ||
| Option A: Total 4 bay(s) 4 internal fixed 2.5" SATA* drive bay(s) | ||
| 4 internal fixed 2.5" SATA* drive bay(s) | ||
| (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 6x 40mm Fan(s) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SAE-MF | 1 | Super H13SAE-MF Motherboard | |
| Motherboard / Chassis | CSE-514-505 | 1 | 1U Chassis | |
| Cable | CBL-0061L | 1 | 7pin SATA (STR to STR), 31.5cm, Flat, PBF | |
| Cable | CBL-0082L | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable | CBL-0296L | 6 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF | |
| Cable | CBL-0156L | 1 | ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE | |
| Cable | CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Fan | FAN-0156L4 | 6 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH | |
| Parts | MCP-260-00186-0N | 1 | 1U I/O Shield for H13SAE-MF with EMI Gasket | |
| Parts | MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF | |
| Riser Card | RSC-S-6G5 | 1 | 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0076V | 1 | 1U Proprietary CPU Heat Sink for AS -531MR-H8TNR MicroCloud Server | |
| *Power Supply | PWS-505P-1H | 1 | 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH | |
| *Rear Window | MCP-240-51402-0N | 1 | rear window for SC514 single PWS chassis | |
| *Front Panel | MCP-280-51201-0N | 1 | Front control board (FP512) for SC512 (surface-mounted LED) | |
| *Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 | |
| *Rail Set | MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type | |
| *Fan Holder | MCP-320-81801-0B | 3 | SC818G 2x 4056 fan tray,HF,RoHS,PBF | |
| *Fan Holder | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5in fixed HDD tray | MCP-220-51402-0N | $ 21.50 | 1 | 3.5in fixed HDD tray for SC513,514,515,812L,812U,523,HF,RoHS/REACH | ||
| Dual 2.5 HDD bracket | MCP-220-51401-0N | $ 19.00 | 2 | Dual 2.5 HDD bracket (bracket base not follow std 2.5" HDD screw holes) | ||
| GPU power extender cable | CBL-PWEX-1040 • | 1 | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| Slimline x8 (STR) to 4x SATA | CBL-SAST-1251-100 | $ 26.00 | 1 | Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH | ||
| TPM | AOM-TPM-9670V | $ 56.50 | 1 | SPI TPM 2.0 |
