- Supermicro AS-1115HS-TNR Hyper A+ 1U Barebone Single AMD EPYC 9004/9005 Series Processors

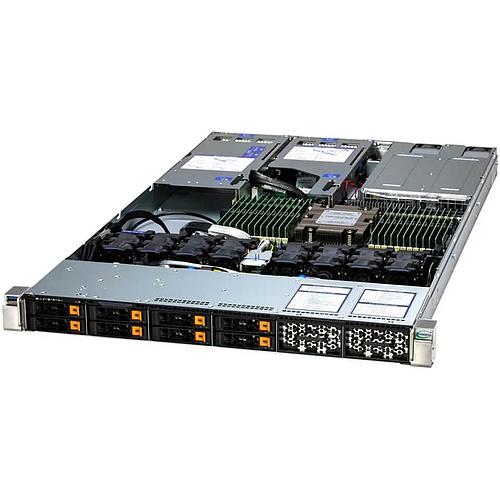

Supermicro AS-1115HS-TNR Hyper A+ 1U Barebone Single AMD EPYC 9004/9005 Series Processors
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone 1U Rackmount SuperServer, Single Socket SP5 AMD EPYC 9004/9005 Series Processor. Up to 192C/320T, Up to 400W TDP CPUs (the latest AMD EPYC 9005 Series Drop-in Support Requires Board Revision 2.x). Max GPU Count: Up to 1 double-width GPU, Supported GPU: NVIDIA PCIe: H100, CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect, GPU-GPU Interconnect: PCIe. Up to 6TB in 24 DIMM slots, RDIMM, Chipset: System on Chip, On-Board: NVMe, 8x 2.5in Hot-swap NVMe/SATA/SAS Drive Bays, M.2 (Boot drive only) M-Key, 22110 (Default)/2280, Network Connectivity: Flexible Networking Options With 1 AIOM Networking Slot (OCP NIC 3.0 compatible), 1 Dedicated IPMI LAN Port, 1200W Power Supply - (Super H13SSH + CSE-HS119-R1K24P2-A) - AS-1115HS-TNR
1. Single AMD EPYC™ 9004/9005* Series Processor (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
2. Support up to DDR5 24 DIMM slots (2DPC) (Please check System Memory Section for detail)
3. 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 FHHL slot Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

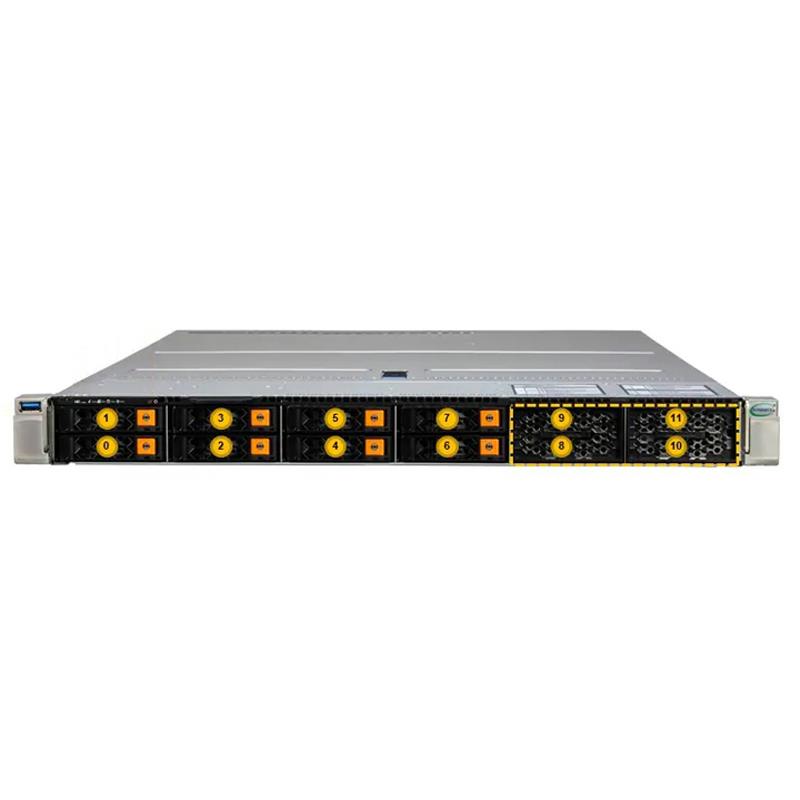

4. 8 Hot-swap 2.5" NVMe/SATA/SAS drive bays Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive support via additional parts 2 M.2 PCIe 3.0 NVMe slots
5. Dual 1200W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1115HS-TNR Hyper A+ 1U Barebone Single AMD EPYC 9004/9005 Series Processors
| Product SKUs | ||
| Product SKUs | AS -1115HS-TNR | |
| Motherboard | ||
| Motherboard | Super H13SSH | |
| Processor | ||
| CPU | Single Socket SP5 | |
| 4th Generation AMD EPYC™ 9004 Series Processor | ||
| Support CPU TDP up to 360W * | ||
| Cores | Up to 96C/192T | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory | Memory Capacity: 24 DIMM slots | |
| Up to 3TB: DDR5-4800MHz (12 DIMM slots, 1DPC) | ||
| Up to 6TB: DDR5-4000MHz/ 3600MHz (24 DIMM slots, 2DPC) | ||
| Memory Type: 4800MHz(1DPC) or 4000/3600(2DPC)MHz ECC DDR5 RDIMM | ||
| Note | For optimal performance AMD recommends full memory population | |
| Memory Voltage | 1.1 V | |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 3 USB 3.0 port(s) (1 front; 2 rear) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| ACPI 6.4 | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMIView for Linux/ Windows | ||
| IPMICFG | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| PC Health Monitoring | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-HS119-R1K24P2-A | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.4" (747mm) | |
| Package | 8.1" (H) x 23.8" (W) x 40.6" (D) | |
| Weight | Net Weight: 32 lbs (14.5 kg) | |
| Gross Weight: 51 lbs (23.1 kg) | ||
| Available Color | Black front & sliver body | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 FH, 6.6"L slot(s) | |
| 2 PCIe 5.0 x16 FH, 10.5"L slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (Up to 12x 2.5" hot-swap NVMe/SATA/SAS support with additional parts) | |
| M.2 | 2x NVMe (PCIe Gen4, Boot drive only) | |
| M-Key, 22110 (Default) | ||
| System Cooling | ||
| Fans | 8x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz | |
| 1200W: 200-240Vac / 7.5A-6A / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Note | Operating Temperature based on configurations | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 12 NVMe | CBL-MCIO-1342M5FRFB | $ 101.00 | 1 | MCIO x8 (STR to STR), FFC, Bundled 34+42cm, 30AWG | ||
| 12 NVMe | CBL-KIT-1115HS-TNR-8N | $ 276.50 | 1 | 8 NVME cable kit | ||
| 12 NVMe | CBL-PWEX-1136-40 • | 1 | power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG | |||
| 12 NVMe | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS/SATA/NVME | ||
| 12 NVMe | MCP-220-00178-0B • | 4 | 2.5 thin profile drive tray | |||
| 12 SAS | AOC-S3816L-L16iT OR AOC-S3916L-H16iR | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key | |||
| 12 SAS | CBL-PWEX-1136-40 • | 1 | power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG | |||
| 12 SAS | MCP-220-00178-0B • | 4 | 2.5 thin profile drive tray | |||
| 12 SAS | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS/SATA/NVME | ||
| 12 SAS | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | ||
| 12 SAS | CBL-SAST-1273LP-100 | $ 55.50 | 1 | Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm | ||
| 12 SAS | CBL-SAST-1262LP-100 • | 1 | Slimline x8 (STR) to SlimLineLP x4 STR,98CM,100Ohm | |||
| 12 SATA | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | ||
| 12 SATA | CBL-MCIO-1360L4FY | $ 0.00 | 1 | MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm | ||
| 12 SATA | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS/SATA/NVME | ||
| 12 SATA | MCP-220-00178-0B • | 4 | 2.5 thin profile drive tray | |||
| 12 SATA | CBL-PWEX-1136-40 • | 1 | power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG | |||
| 12 SATA | CBL-MCIO-1326EQL4F | $ 0.00 | 1 | MCIO x8/STR to SlimSAS LP x4/STR, FFC,F26cm, 31AWG | ||
| 8 NVMe | CBL-KIT-1115HS-TNR-8N | $ 276.50 | 1 | 8 NVME cable kit | ||
| 8 NVMe + 4 SAS | AOC-S3816L-L16iT OR AOC-S3916L-H16iR | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key | |||
| 8 NVMe + 4 SAS | CBL-SAST-1262LP-100 • | 1 | Slimline x8 (STR) to SlimLineLP x4 STR,98CM,100Ohm | |||
| 8 NVMe + 4 SAS | CBL-KIT-1115HS-TNR-8N | $ 276.50 | 1 | 8 NVME cable kit | ||
| 8 NVMe + 4 SAS | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS/SATA/NVME | ||
| 8 NVMe + 4 SAS | MCP-220-00178-0B • | 4 | 2.5 thin profile drive tray | |||
| 8 NVMe + 4 SAS | CBL-PWEX-1136-40 • | 1 | power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG | |||
| 8 NVMe + 4 SAS | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | ||
| 8 NVMe + 4 SATA | CBL-KIT-1115HS-TNR-8N | $ 276.50 | 1 | 8 NVME cable kit | ||
| 8 NVMe + 4 SATA | CBL-MCIO-1326EQL4F | $ 0.00 | 1 | MCIO x8/STR to SlimSAS LP x4/STR, FFC,F26cm, 31AWG | ||
| 8 NVMe + 4 SATA | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | ||
| 8 NVMe + 4 SATA | CBL-PWEX-1136-40 • | 1 | power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG | |||
| 8 NVMe + 4 SATA | MCP-220-00178-0B • | 4 | 2.5 thin profile drive tray | |||
| 8 NVMe + 4 SATA | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS/SATA/NVME | ||
| 8 NVMe/SAS Hybrid | AOC-S3816L-L16iT OR AOC-S3916L-H16iR | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key | |||
| 8 NVMe/SAS Hybrid | CBL-SAST-1273LP-100 | $ 55.50 | 1 | Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm | ||
| 8 NVMe/SAS Hybrid | CBL-KIT-1115HS-TNR-8N | $ 276.50 | 1 | 8 NVME cable kit | ||
| 8 NVMe/SATA Hybrid | CBL-MCIO-1360L4FY | $ 0.00 | 1 | MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm | ||
| 8 NVMe/SATA Hybrid | CBL-KIT-1115HS-TNR-8N | $ 276.50 | 1 | 8 NVME cable kit | ||
| 8 SAS | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | ||
| 8 SAS | CBL-SAST-1273LP-100 | $ 55.50 | 1 | Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm | ||
| 8 SAS | AOC-S3816L-L16iT OR AOC-S3916L-H16iR | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key | |||
| 8 SATA | CBL-MCIO-1360L4FY | $ 0.00 | 1 | MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm | ||
| 8 SATA | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | ||
| Cable Arm | MCP-290-11901-0N • | 1 | 41" ball-bearing rail set for Hyper servers | |||
| Cable Arm | MCP-290-00168-0N • ( ***Requires MCP-290-11901-0N • ***) | 1 | Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N *** | |||
| Chassis Rear Handle Kit | MCP-290-11905-0N | 1 | Hyper 1U rear handle kit for immersion cooling | |||
| Drive Bay Dummy Cover | MCP-220-11902-0B | $ 24.00 | 0 | Dummy cover for two 2.5" drive bays (top & bottom drive bays) | ||
| Rail Set | MCP-290-21103-0N | $ 110.00 | 1 | 21.65" ball-bearing rail set for Hyper servers | ||
| Rail Set | MCP-290-11903-0N • (included in the system ) | 1 | 30.5" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-11902-0N • | 1 | 35.25" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-11901-0N • | 1 | 41" ball-bearing rail set for Hyper servers | |||
| Serial Port DTK Cable with PCIe Bracket | CBL-0010L • | 1 | 9-Pin 26CM Serial Port DTK Cable with PCIe Bracket | |||
| TPM security module | AOM-TPM-9672V | $ 72.00 | 1 | AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS | ||
| TPM security module | AOM-TPM-9670H-FIPS | $ 63.50 | 1 | AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS | ||
| TPM security module | AOM-TPM-9672V-FIPS | $ 78.00 | 1 | AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS | ||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
