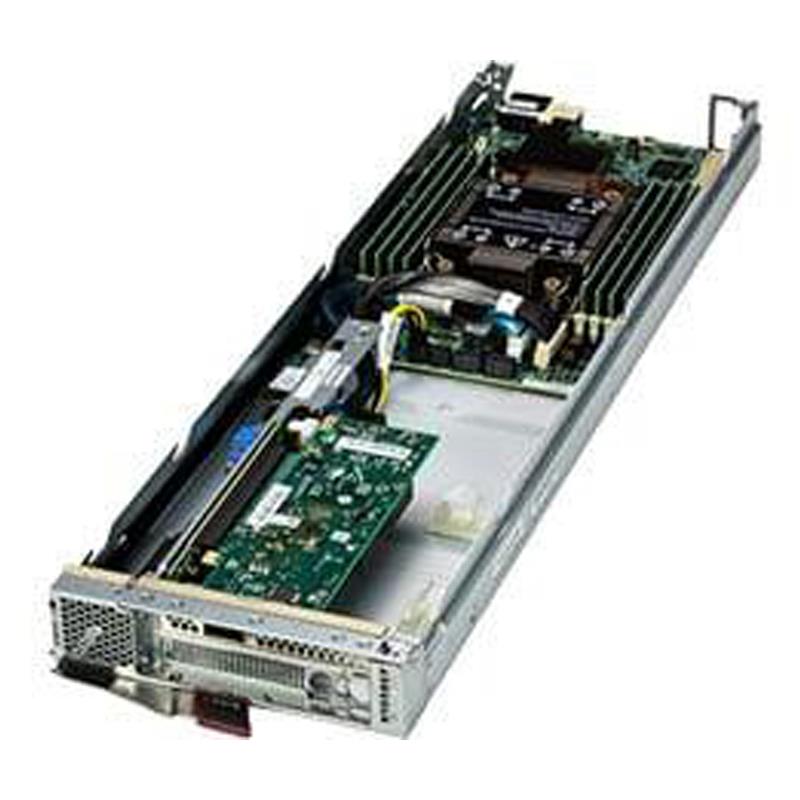

Supermicro SBI-411E-1G SuperBlade Compact Self-contained Server Single Intel Xeon Scalable Processor 5th and 4th Generation
• Enterprise data center
• FSI
• AI/ML
Node For 8U Enclosure, Single Width Compact Self-contained Server, Support Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation. Up to 2TB DDR5-5600MHz in 8 DIMM slots, RDIMM, Chipset: Intel C741, Supported GPUs NVIDIA PCIe: H100, L40S, L40, A100, A10, Drive Bays: 2x M.2 2280/22100, Network Connectivity: Dual LAN with 25GbE, IPMI ASPEED AST2600 BMC, (SBI-411E-1G)
1. 100 servers per 42U Rack
2. Single socket E (LGA-4677) supports 5th/4th Gen Intel® Xeon® Scalable processors
3. Intel® C741 chipset
4. 8 DDR5 DIMM slots, 1DPC with 5600MHz ECC RDIMM
5. Support up to 8 drives per blade
6. Dual-port 25G Ethernet (LOM), additional 200G/100G InfiniBand or dual-port 25G Ethernet via mezzanine card
7. 2 low profile network cards support, e.g. 400G NDR InfiniBand card or 2 HHHL GPUs
8. Liquid cooling solution is available*
* Please contact your Supermicro sales rep for more info.
Extra Specifications for Supermicro SBI-411E-1G SuperBlade Compact Self-contained Server Single Intel Xeon Scalable Processor 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | ||
| Processor | ||
| CPU | Single Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Up to 250W TDP CPUs (Air Cooling at 35°C) | |
| Certain CPUs with higher TDP may be supported under specific conditions. Please refer to Thermal Matrix . | ||
| Up to 350W TDP CPUs (Direct Liquid Cooling) | ||
| GPU | ||
| Supported GPUs | NVIDIA PCIe: H100, L40S, L40, A100, A10 | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | PCIe | |
| System Memory | ||
| Memory Capacity | 8 DDR5 DIMM slots | |
| 1DPC with 5600MHz ECC RDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C741 chipset | |
| Network Controllers | Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN | |
| IPMI | ASPEED AST2600 BMC | |
| Graphics | Aspeed AST2600 | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 1.69" | |
| Width | 6.55" | |
| Depth | 22.84" | |
| Weight | 7.1 lbs (3.2 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Network Activity LED | ||
| Fault LED | ||
| UID | ||
| Connector | SUV (Serial/USB/Video) Connector | |
| Drive Bays | ||
| M.2 | 2 M.2 2280/22100 Optional: 4 M.2 NVMe via mezz card | |
| Input / Output | ||
| TPM | 1 TPM 2.0 Header | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 0 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| VROC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| VROC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| Heatsink / Retention | SNK-P1046V | $ 95.50 | 0 | Heatsink for Rear CPU | ||
| Liquid Cooling Module (OEM only) | SNK-P3071 | 0 | Liquid Cooling cold plate (3rd party vendor) | |||
| Bracket for Liquid Cooling | MCP-620-41030-0N | 0 | 8U Superblade bracket for liquid cooling | |||
| CPU Carrier | SKT-1333L-0000-FXC | $ 19.00 | 0 | Socket E LGA4677, E1A, XCC, DG 0.7 | ||
| CPU Carrier | SKT-1333L-0001-LTS | $ 18.50 | 0 | Socket E LGA4677, E1A, XCC, DG1.0, NO SHIM, BLK HSG | ||
| CPU Carrier | SKT-1424L-001B-FXC | $ 19.00 | 0 | Socket E E1B LGA 4677 W/SHIM SP MCC, DG0.95 | ||
| CPU Carrier | SKT-1424L-001B-LTS | $ 19.00 | 0 | Socket E E1B LAG 4677 W/SHIM SPR MCC, DG1.0 | ||
| CPU Carrier | SKT-1425H-001C-FXC | 0 | Socket E E1C LGA 4677 W/O SHIM SPR+HBM, DG0.7 | |||
| CPU Carrier | SKT-1425H-001C-LTS | 0 | Socket E E1C LGA 4677 W/O SHIM SPR+HBM, DG0.7 | |||
| SuperBlade Tray | MCP-630-41004-0N | 0 | 4U 10 SuperBlade Tray Extended Top cover for Double-Width | |||
| Networking | AOC-B25G-X4D-B | $ 200.00 | 0 | SuperBlade 2-port 25GbE Mezzanine Card | ||
| Networking | AOC-IBH-X4ES-B | $ 895.00 | 0 | Mezzanine Card for InfiniBand EDR Single Port with mounting bracket | ||
| Networking | AOC-IBH-X6HS-B | $ 1,549.00 | 0 | SuperBlade InfiniBand HDR one port Mezzanine card with mounting bracket | ||
| Software | SFT-DCMS-Single | 0 | DataCenter Management Package (per node license) | |||
| Add-on Card / Module | AOM-B-4M | $ 70.50 | 0 | 4 x M.2 NVMe mezzanine card, 4x 110(80) |
