| Product SKUs |
| Product SKUs | ASG-2115S-NE332R |
| Motherboard |
| Motherboard | Super H13SSF |
| Processor |
| CPU | Single Socket SP5 |
| AMD EPYC™ 9004 Series Processors |
| Note | Supports 200W - 360W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 24 DIMM slots |
| Max Memory (1DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | AMD System on Chip |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |

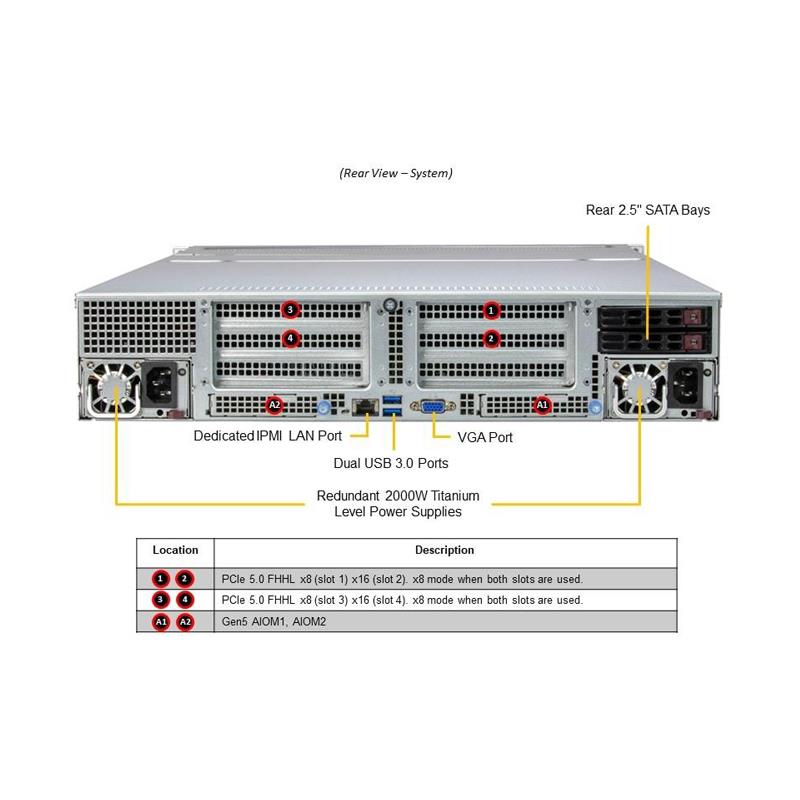

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3.0 port(s) (rear) |
| 2 USB 3.0 port(s) (front) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-236E3-R2K08P |
| Dimensions and Weight |
| Height | 3.5" (89.8 mm) |
| Width | 17.2" (438.4 mm) |
| Depth | 30.8" (789.9 mm) |
| Package | 10" (H) x 26.5" (W) x 43.25" (D) |
| Weight | Gross Weight: 77 lbs (34.93 kg) |
| Net Weight: 55 lbs (24.95 kg) |
| Available Color | Silver |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | 2 rear hot-swap 2.5" SATA drive bay(s) |
| Default: Total 34 bay(s) 32 front hot-swap E3.S 1T NVMe drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) |
| 32 front hot-swap E3.S 1T NVMe drive bay(s) |
| M.2 | View M.2 Options |
| 2 M.2 NVMe slot(s) (M-key 2280/22110) |
| System Cooling |
| Fans | 4 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2000W: 230-240Vac / 50-60Hz |
| 2000W: 220-240Vac / 50-60Hz (for UL only) |
| 2000W: 230-240Vdc / 50-60Hz (for China only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
