- Supermicro ASG-2115S-NE332R Storage 2U Barebone Single AMD EPYC 9004 Series Processor

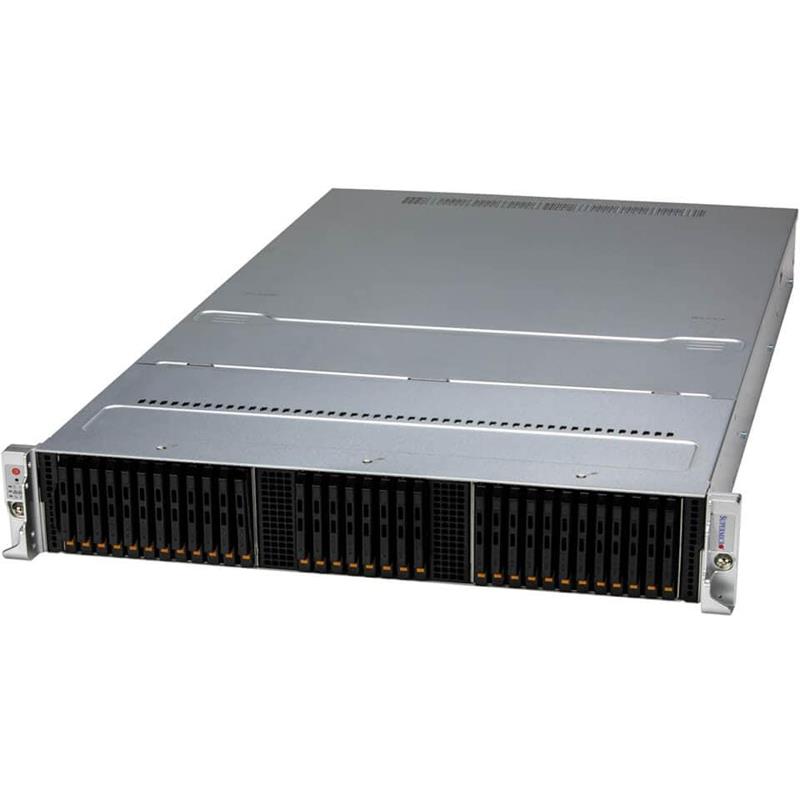

Supermicro ASG-2115S-NE332R Storage 2U Barebone Single AMD EPYC 9004 Series Processor
• Software-defined Storage
• In-Memory Computing
• Data Intensive HPC
• Private & Hybrid Cloud
• NVMe Over Fabrics Solution
Barebone 2U Rackmount SuperServer, Supports Single Socket SP5, Supporting AMD EPYC 9004 Series Processors, System on Chip Up to 6TB in 24 DIMM slots, RDIMM/LRDIMM, On-Board: NVMe, 32x Drive Slots, Network Connectivity: Via AIOM, 2000W Power Supply - (ASG-2115S-NE332R + H13SSF)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, Min. of 4 DIMMs, 1 AIOM/AOC NIC, 1 Storage Device and 1 Server-Grade M.2/rear SATA SSD)
1. Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 360W TDP.
2. Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
4. 32x hot-swap E3.S (7.5mm) NVMe drive bays
5. Redundant Titanium 2000W Power Supplies
Extra Specifications for Supermicro ASG-2115S-NE332R Storage 2U Barebone Single AMD EPYC 9004 Series Processor
| Product SKUs | ||
| Product SKUs | ASG-2115S-NE332R | |
| Motherboard | ||
| Motherboard | Super H13SSF | |
| Processor | ||
| CPU | Single Socket SP5 | |
| AMD EPYC™ 9004 Series Processors | ||
| Note | Supports 200W - 360W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 24 DIMM slots | ||
| Max Memory (1DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM | ||
| Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | AMD System on Chip | |
| Network Connectivity | Via AIOM | |
| View AOC Options | ||
| View AIOM Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| USB | 2 USB 3.0 port(s) (rear) | |
| 2 USB 3.0 port(s) (front) | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-236E3-R2K08P | |
| Dimensions and Weight | ||
| Height | 3.5" (89.8 mm) | |
| Width | 17.2" (438.4 mm) | |
| Depth | 30.8" (789.9 mm) | |
| Package | 10" (H) x 26.5" (W) x 43.25" (D) | |
| Weight | Gross Weight: 77 lbs (34.93 kg) | |
| Net Weight: 55 lbs (24.95 kg) | ||
| Available Color | Silver | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| M.2 | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | 2 rear hot-swap 2.5" SATA drive bay(s) | |
| Default: Total 34 bay(s) 32 front hot-swap E3.S 1T NVMe drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| 32 front hot-swap E3.S 1T NVMe drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 4 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 203 mm | |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166A / Min: 0A (230Vac-240Vac) | ||
| 12V SB | Max: 3.5A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz (for UL only) | ||
| 2000W: 230-240Vdc / 50-60Hz (for China only) | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Cards | AOC-S25G-M2S | $ 320.50 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| Network Cards | AOC-S40G-I2Q | $ 377.00 | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | ||
| Network Cards | AOC-SGP-I2 | $ 106.00 | 0 | Standard LP 2-port GbE, Intel 82575 | ||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & Generation) | |||
| Power Cord | CBL-PWCD-0579 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0300-IS | $ 20.00 | 0 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579-1 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
