- Supermicro AS-3015A-I Mainstream A+ Server Mini-Tower Single AMD Ryzen 7000 Series Processors Zen4 Generation

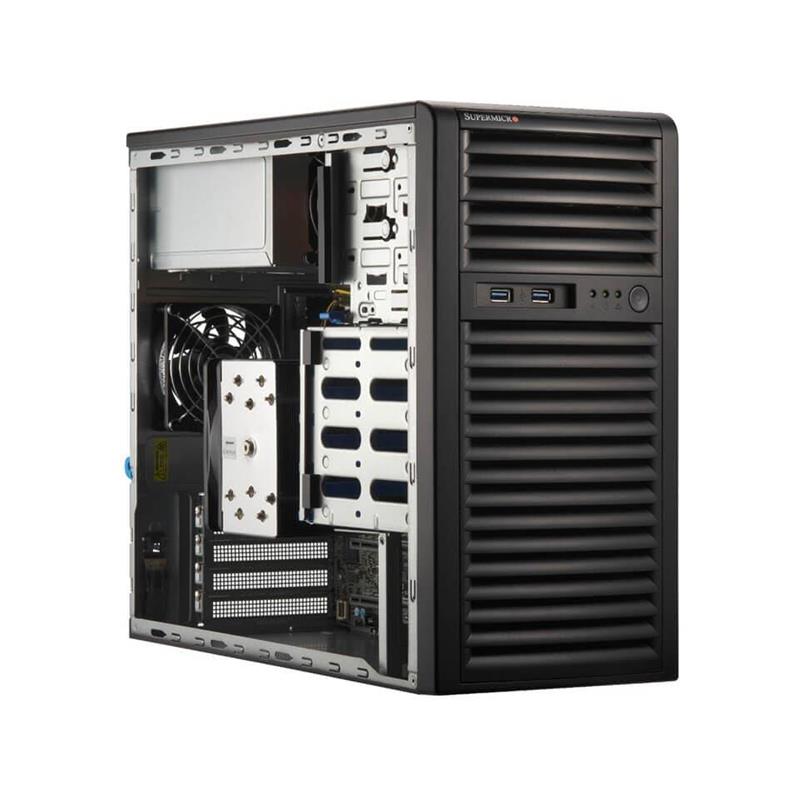

Supermicro AS-3015A-I Mainstream A+ Server Mini-Tower Single AMD Ryzen 7000 Series Processors Zen4 Generation
• 2D/3D Content Creation
• Email/Firewall/Application Server
• Designed for small and medium businesses

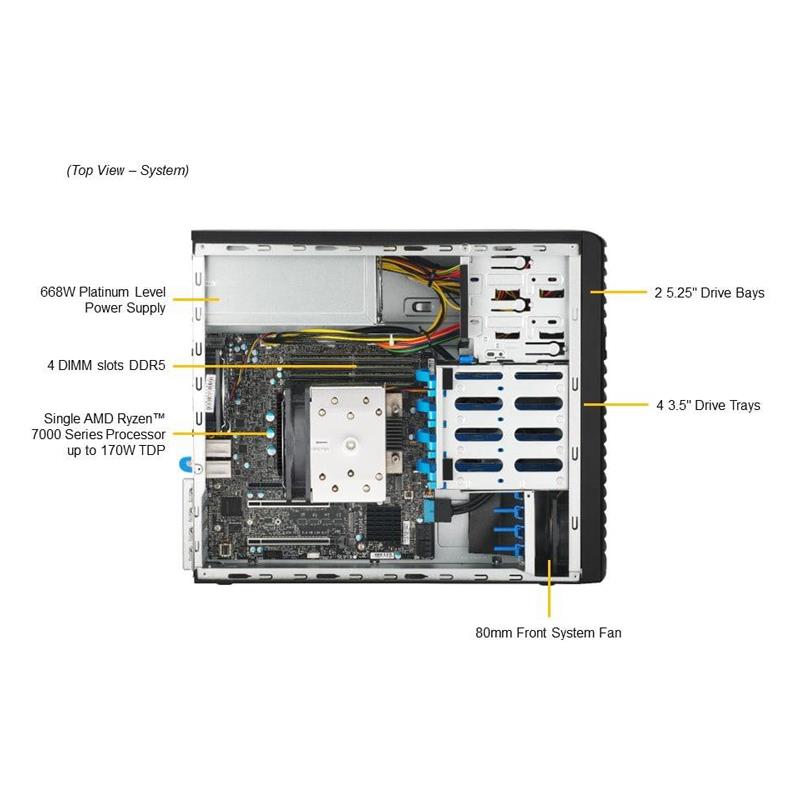

Barebone 1U Mini-Tower SuperServer, Support Single Socket LGA-1718 (Socket AM5), Supporting AMD Ryzen 7000 Series Processors Zen4 Generation (Up to 16-Core/32Thread). Up to 128GB in 4 DIMM slots, ECC DDR5 UDIMM, Supported GPU - NVIDIA PCIe: RTX 4070, RTX A4000, RTX A2000 - AMD PCIe: Radeon Pro W7800, Chipset: AMD B650, On-Board: SATA (6Gbps), VGA Port, Rear Audio, Default: 4x Front Hot-swap 3.5in SATA Drive Bays, 2x M.2 (M-key 2280/22110), 2x 5.25in Peripheral Bays, Network Connectivity: 1x RJ45 1GbE Dedicated IPMI, 2x RJ45 1GbE, 668W Power Supply - (CSE-731i-668B + H13SAE-MF) -AS-3015A-I
1. AMD EPYC™ 4004 Series Processor
2. 4 Dual channel ECC/Non-ECC DDR5 unbuffered DIMM slots supporting up to 192GB memory
3. 2 PCIe 5.0 x16 (16/NA or 8/8) high-throughput slots and 2 PCIe 5.0x4 M.2 slots
4. Dual 1GbE LAN (Intel® I210-AT)
Extra Specifications for Supermicro AS-3015A-I Mainstream A+ Server Mini-Tower Single AMD Ryzen 7000 Series Processors Zen4 Generation
| Product SKUs | ||
| Product SKUs | AS -3015A-I | |
| Motherboard | ||
| Motherboard | Super H13SAE-MF | |
| Processor | ||
| CPU | Single processor(s) | |
| Zen4 Gen AMD Ryzen™ 7000 series processors | ||
| Core Count | Up to 16C/32T | |
| Note | Supports up to 170W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 double-width GPU(s) | |
| Supported GPU | View GPU Options | |
| AMD PCIe: Radeon Pro W7800 | ||
| NVIDIA PCIe: RTX 4070, RTX A4000, RTX A2000 | ||
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 4 DIMM slots | ||
| Max Memory (2DPC): Up to 128GB 5200MT/s ECC DDR5 UDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| Chipset | AMD B650 | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 2 RJ45 1GbE with Intel® I210-AT | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| 1 HDMI 2.0b port(s) | ||
| 1 DisplayPort 1.4a port(s) | ||
| Audio | Rear Audio | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI 6.0 | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | ||
| PC Health Monitoring | ||
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature | |
| Chassis | ||
| Form Factor | Mini-Tower | |
| Model | CSE-731i-668B | |
| Dimensions and Weight | ||
| Height | 14.25" (362 mm) | |
| Width | 7.25" (184 mm) | |
| Depth | 16.75" (425 mm) | |
| Package | 20" (H) x 11" (W) x 21" (D) | |
| Weight | Net Weight: 18 lbs (8.16 kg) | |
| Gross Weight: 22 lbs (9.98 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | HDD activity LED | |
| Power LED | ||
| System Overheat LED | ||
| Network activity LEDs | ||
| Buttons | Power On/Off button | |
| Port | USB 3.0 Port(s) | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 4 bay(s) 4 front hot-swap 3.5" SATA drive bay(s) | ||
| 4 front hot-swap 3.5" SATA drive bay(s) | ||
| Option A: Total 4 bay(s) 4 front hot-swap 2.5" SATA drive bay(s) | ||
| 4 front hot-swap 2.5" SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110) | ||
| Peripheral Bays | 2 5.25" peripheral bay(s) | |
| System Cooling | ||
| Fans | 1x 90mm Fan(s) | |
| 1x 80mm Fan(s) | ||
| Power Supply | ||
| Dimension (WxHxL) | 150 x 86 x 185 mm | |
| +12V | Max: 54A / Min: 0.2A (100Vac-240Vac) | |
| 5V SB | Max: 2A / Min: 0A | |
| AC Input | 668W: 100-240Vac / 50-60Hz | |
| Output Type | 24pin ATX | |
| Certification | Platinum Level | |
| [Test Report] | ||
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SAE-MF | 1 | Super H13SAE-MF Motherboard | |
| Motherboard / Chassis | CSE-731i-668B | 1 | Mini-Tower Chassis | |
| Cable | CBL-0044L | 4 | 7pin SATA (STR to STR), 57.5cm, Flat, PBF | |
| Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable | CBL-0084L | 1 | 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE | |
| Cable | CBL-CUSB-1007 | 1 | 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS | |
| Fan | FAN-0247L4 | 1 | 80x80x25 mm, 5K RPM Cooling Fan for AS -3015A-I,RoHS | |
| Fan | FAN-0108L4 | 1 | 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731 | |
| Parts | MCP-260-00185-0B | 1 | STD I/O Shield for H13SAE-MF with EMI Gasket & Black Mylar | |
| Parts | MCP-110-00033-0N | 2 | Binding Head Screw (with teeth) #632*4.5L | |
| Power Supply | PWS-668-PQ | 1 | PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| *Drive Tray(s) | MCP-220-73101-0B | 4 | SC731 Tool-less Internal 3.5inch HDD Tray |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| DVD Kit | CBL-SAST-0624 • | 1 | 70cm SATA Cable S-S 30AWG | |||
| DVD Kit | CBL-0082L • | 1 | Y SPLIT SATA POWER ADAPTER | |||
| DVD Kit | DVM-TEAC-DVDRW24-HBT1 | 1 | BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L) | |||
| HDD Converter | MCP-220-73102-0N • | 1 | 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842 | |||
| Heatsink | SNK-P0093AP4 • | 1 | High Performance CPU Heatsink | |||
| Mobile Rack | CSE-M14TQC | $ 144.50 | 1 | SAS3/SATA mobile rack for 4x 2.5" drives | ||
| TPM | AOM-TPM-9670V | $ 56.50 | 1 | SPI TPM 2.0 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
