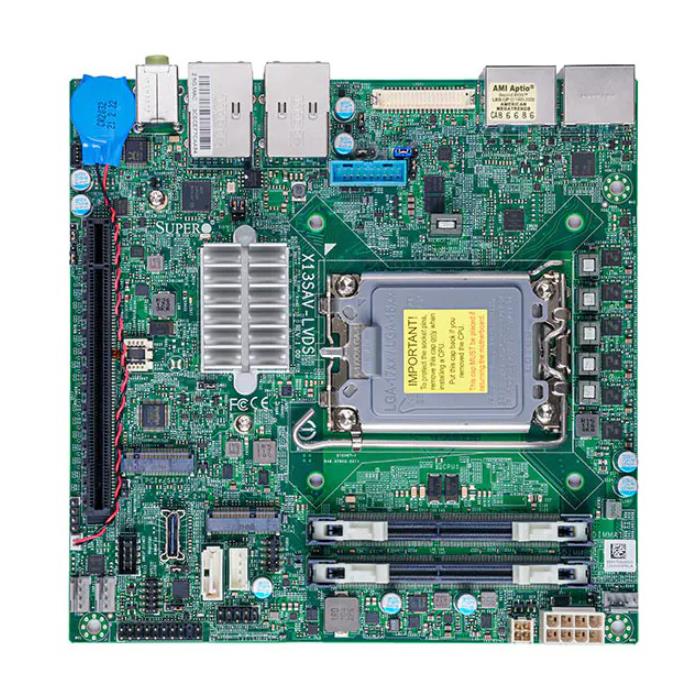

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | Mini-ITX |
| Dimensions (WxDxH) | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| Compatible Processors | 13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor |
| Cache/Core | Up to 24 Cores |
| System Memory |
| Memory Capacity | 2 DIMM slots, Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz |
| Memory Type | 3200/2933/2666 MT/s non-ECC DDR4 SODIMM Unbuffered |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel Q670E |
| SATA RAID | Intel Q670E controller for 5 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Graphics | 1 Intel UHD Graphics port, 4 Independent Displays thru HDMI 2.0b/HDMI1.4/DP/LVDS |
| Network Controllers | Single LAN with Intel Ethernet i225LM, Single LAN with Intel Ethernet Controller I210-AT |
| TPM | TPM Header & Chip both |
| Input / Output |
| SATA | 5 SATA3 (6Gbps) port(s) (1 header, 4 via Oculink) |
| USB(s) | 2 USB 2 port(s) (2 via header), 4 USB 3.2 Gen2 port(s) (4 rear type A), 2 USB 3.2 Gen1 port(s) (2 via header) |
| Video Output | 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s), 1 HDMI port(s), 1 LVDS port(s) |
| Serial Ports | 1 COM Port(s) (1 header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slots (16/NA or 8/8) |
| M.2 | Key: M-Key, E-Key |
| Form Factor: 2280, 2230 |
| M.2 Interface: 1 PCIe 4.0 x4, 1 CNVi/PCIe 3.0 x1/USB2 |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.1, SMBIOS 3.0 or later, PCI FW 3.0, UEFI 2.7, RTC (Real Time Clock) Wakeup |
| Management |
| System Management Software | Wake-on-LAN, Watchdog |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input |
| FAN | 3x 4-pin fan headers (up to 3 fans), System level control, PWM fan speed control, Fan speed control, 3 fans with tachometer monitoring |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, System level control, PCH temperature, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages |
| LED | Power LED |
| Temperature | Thermal Control for 3 Fan Connectors |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| Environmental |
| Operating Environment | Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) |
| Non-Operating Relative Humidity Range: 10% - 95% (non-condensing) |
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) |
| Parts List |
| I/O Cables | 1x CBL-PWEX-1066, CBL-0044L |
| I/O Shield | 1x MCP-260-00166-0N |
