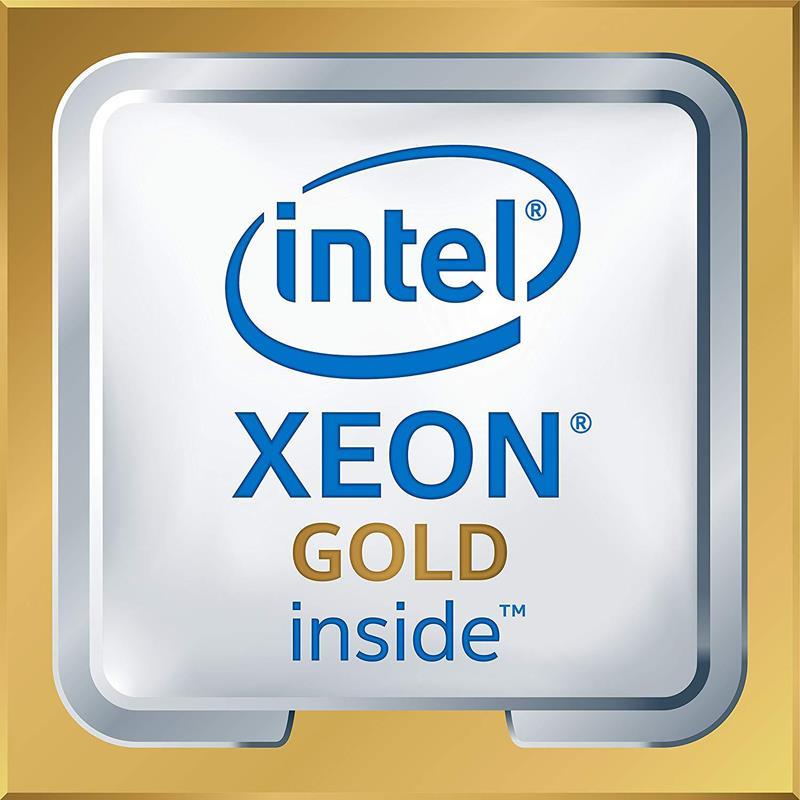

Intel CD8069504200401 Xeon Gold 6238T 1.90GHz 22-Core Processor 2nd Generation - Cascade Lake
• With support for the higher memory speeds
• Advanced reliability; hardware-enhanced security
• Optimized for demanding mainstream data center
• 1.9GHz Frequency; 22 Core/44 Thread; 30.25MB Cache
1.9GHz Xeon Gold 6238T Processor Gen.2, 22-Cores (44 Threads), FCLGA3647, 30.25MB Cache, 10.4GT, 3UPI, 125W, 14nm - OEM
• It is optimized for demanding mainstream data center, multicloud compute, and network and storage workloads
• With support for the higher memory speeds, enhanced memory capacity, and four-socket scalability, the Intel Xeon Gold 6200 processors deliver significant improvement in performance, advanced reliability, and hardware-enhanced security
Extra Specifications for Intel CD8069504200401 Xeon Gold 6238T 1.90GHz 22-Core Processor 2nd Generation - Cascade Lake
| Main Specifications | ||
| Clock Speed | 1.90 GHz | |
| Device Type | Processor | |
| Manufacturing Process | 14 nm | |
| Max Turbo Speed | 3.70 GHz | |
| Multi-Core Technology | 22 | |
| Number of Threads | 44 | |
| Processor Number | 6238T | |
| QPI/UPI | Number of UPI Links: 3 | |
| Product Collection | 2nd Generation Intel Xeon Scalable Processor | |
| Code Name | Products formerly Cascade Lake | |
| Vertical Segment | Server | |
| Processor | ||
| Cache | 30.25MB | |
| Thermal | ||
| Design Power | 125 W | |
| Miscellaneous | ||
| Use Conditions | Communications Commercial Temp | |
| Features | Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Intel Virtualization Technology for Directed I/O (VT-d), Intel vPro Technology, Intel VT-x with Extended Page Tables (EPT), Intel TSX-NI, Intel Speed Shift Technology, Intel Optane Memory Supported, Intel Advanced Vector Extensions 512 (AVX-512), Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Run Sure Technology, Intel Deep Learning Boost (DL Boost), Intel Resource Director Technology (RDT) | |
| Package Type | OEM, Tray | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 1 TB | |
| Memory Types | DDR4-2933 | |
| Maximum Memory Speed | 2933 MHz | |
| Max # of Memory Channels | 6 | |
| ECC Memory Supported | Yes | |
| Intel Optane DC Persistent Memory Supported | Yes | |
| Expansion Options | ||
| Scalability | 4S | |
| PCI Express Revision | 3.0 | |
| Max # of PCI Express Lanes | 48 | |
| Package Specifications | ||
| Sockets Supported | FCLGA3647 | |
| Case Temperature | 90°C | |
| Package Size | 76.0mm x 56.5mm | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Intel Trusted Execution Technology, Execute Disable Bit, Intel Run Sure Technology, Mode-based Execute Control (MBE) | |
