  2. Supermicro CSE-842XTQC-R804B Server Chassis 4U Rackmount

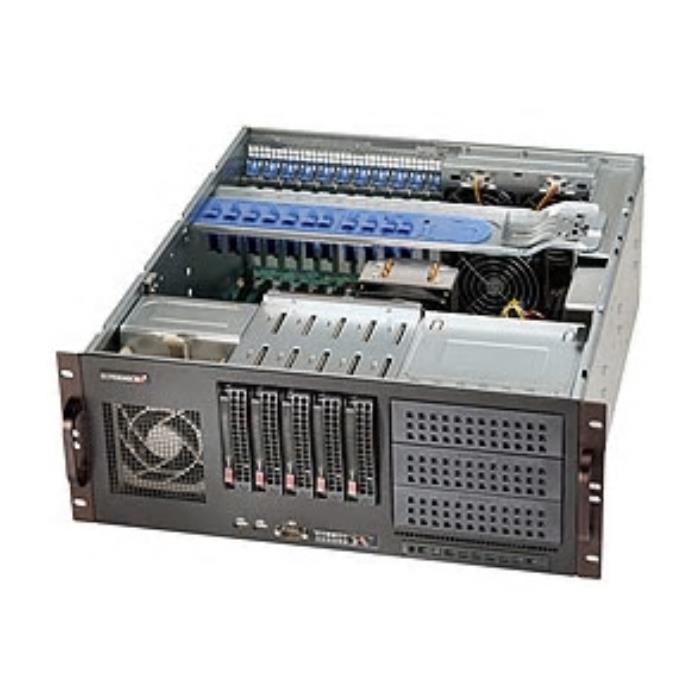

Supermicro CSE-842XTQC-R804B Server Chassis 4U Rackmount
Supermicro CSE-842XTQC-R804B Server Chassis 4U Rackmount

Supermicro CSE-842XTQC-R804B Server Chassis 4U Rackmount

• Design for single and dual Intel/AMD processors
• Power Switch; Reset Switch & 6x LED Indicators
• 800W Redundant Power Supplies Platinum Level
• Chassis support up to 5x 3.5 SAS/SATA hard drives

Rackmount 4U for Intel/AMD Single or Dual CPU motherboards. 11x Expansion Slots. 800W Redundant Power Supply Platinum Level (94%) - Includes : 5x 3.5in Hot-Swap Drive bays, 3x 5.25in Peripheral Drive Bays - SC842XTQC-R804B (Black)

$ 1,120.00$ 1,120.001120.0USD

$ 1,120.00

Option not available

PreOrder
43 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. 800W Redundant Power Supplies Platinum Level (94%)
    2. 5x 3.5" SAS3 / SATA3 Hot-swap HDD Bays
    3. 3x 5.25" Peripheral Drive Bays
    4. 1x Slim DVD-ROM Drive Bay
    5. 7x Full-height, Full-length and 4x Full-height, Half-length Expansion Slots
    6. Dual-channel Air Duct design
    7. 2x Front USB 3.0 Ports & 1x COM Port
    8. Front intake Cooling Fan and Optional Front Bezel with Removable Air Filter
    9. Power Switch, Reset Switch & 6x LED Indicators

    Extra Specifications for Supermicro CSE-842XTQC-R804B Server Chassis 4U Rackmount

    Operating Environment (System)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Temperature Range5°C - 35°C (41°F - 95°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
    Regulatory (Power Supply)
    Power Supply Safety / EMCCCC
    BSMI
    CE/EMC
    UL/CB
    Product SKUs
    Product SKUsCSE-842XTQC-R804B
    Form Factor
    Form Factor4U chassis support for motherboard size E. ATX 12" x 13", Proprietary 15.12" x 13.2"
    Processor Support
    Processor SupportDual and Single Intel® and AMD processors
    Dimensions
    Height7" (178 mm)
    Width17.2" (437 mm)
    Depth20.5" (521 mm)
    Gross Weight52.9 lbs (24 kg)
    Net Weight43.2 lbs (19.6 kg)
    Packaging (W x H x L)26.4" (671 mm) x 13.8" (351 mm) x 31.5" (800 mm)
    Available ColorBlack
    Expansion Slots
    Expansion Slots7x Full-height, Full-length expansion slot(s)
    4x Full-height, Half-length expansion slot(s)
    Drive Bays
    Drive Bays5x 3.5" hot-swap SAS3/SATA drive bay
    Backplane
    Backplane5-Port 4U Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS
    Peripheral Drives
    Peripheral Drives3x standard 5.25" drive bay
    Front Panel
    ButtonPower On/Off button
    System Reset button
    LEDPower status LED
    HDD activity LED
    2 Network Activity LEDs
    Fan Fail/System Over Heat LED
    Port2x USB 3.0 Port(s)
    1x Com Port(s)
    Systems Cooling
    Fans2x 8cm hot-swap exhaust fan(s) & air shroud
    1x 9cm hot-swap cooling fan(s)
    System Monitoring
    System MonitoringChassis intrusion switch
    Power Supply
    Power Efficiency94%
    Total Output Power and Input800W with Input 230 - 240Vdc
    800W with Input 200 - 240Vac
    750W with Input 100 - 127Vac
    AC Input Frequency50-60Hz
    Dimensions (L x W x H)220 x 54.5 x 40.25 mm
    Output TypeBackplanes (gold finger)
    +12VMax: 62.5A / Min: 0.5A (100Vac - 127Vac)
    Max: 66.6A / Min: 0.5A (230Vdc - 240Vdc)
    Max: 66.6A / Min: 0.5A (200Vac - 240Vac)
    +5VsbMax: 4A / Min: 0A
    Power Distributor-12V Max: 0.6A
    +5V Max: 30A
    PDB-PT842-8824
    O/P: 12V/92A
    +3.3V Max: 28A
    CertificationPlatinum Certified

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
