Supermicro SSG-1029P-NEL32R 1U Barebone Dual Intel Xeon Scalable Processors 2nd Generation
• High Throughput Ingest
• High Density Hot Storage
• HPC / Data Analytics
• Media/Video Streaming
• Content Delivery Network (CDN)
• Big Data Top of Rack Storage
Barebone 1U SuperStorage for Dual Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processor. Up to 6TB memory in 24 DIMM slots. Onboard Intel C627 chipset, 2x 10GBase-T Intel X550 LAN ports, 32x Hot-swap EDSFF HDD bays, 2x PCIe 3.0 x16, 2x M.2 PCIe 3.0 (RAID 0,1), 1600W Redundant Power Supply (X11DSF-RE + CSE-136HTS-R1K69P-E2)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to 2 CPUs, 4 DIMMs, and 4 drives).

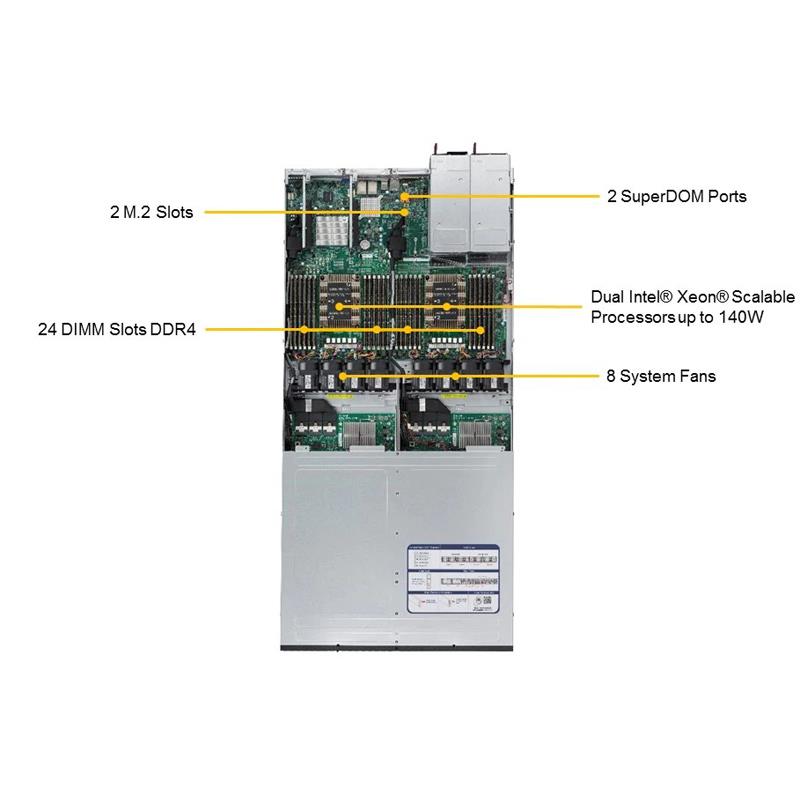

1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16 Low-profile slots

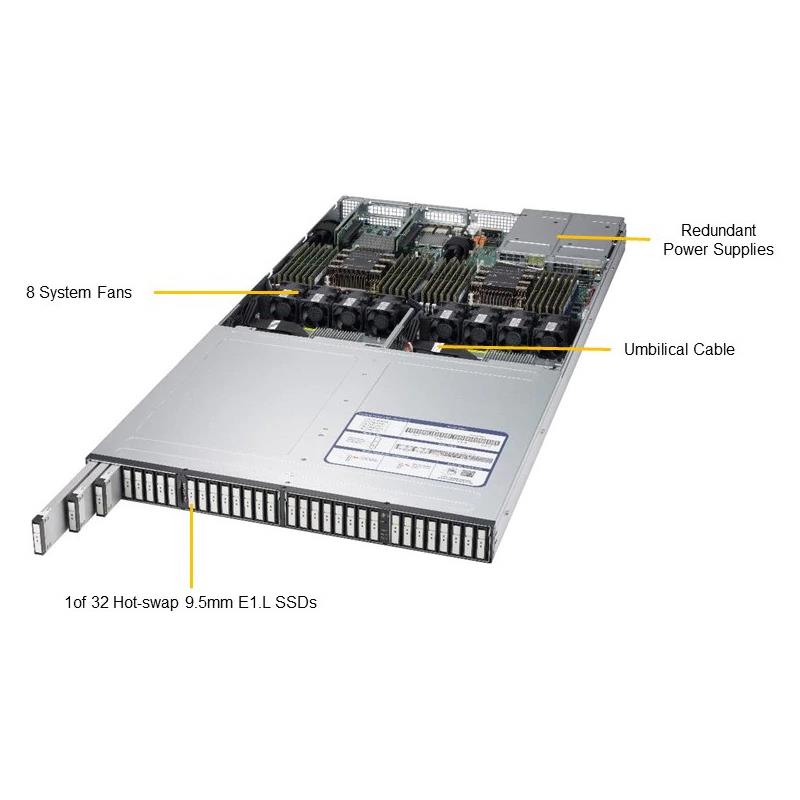

4. 32 Hot-swap EDSFF Long 9.5mm drive slots
5. 2x 10GBase-T LAN ports
6. Built in Intel QAT for Crypto/Compression
7. 8x 40mm fans
8. 1600W Redundant Power Supplies Platinum Level
Extra Specifications for Supermicro SSG-1029P-NEL32R 1U Barebone Dual Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||

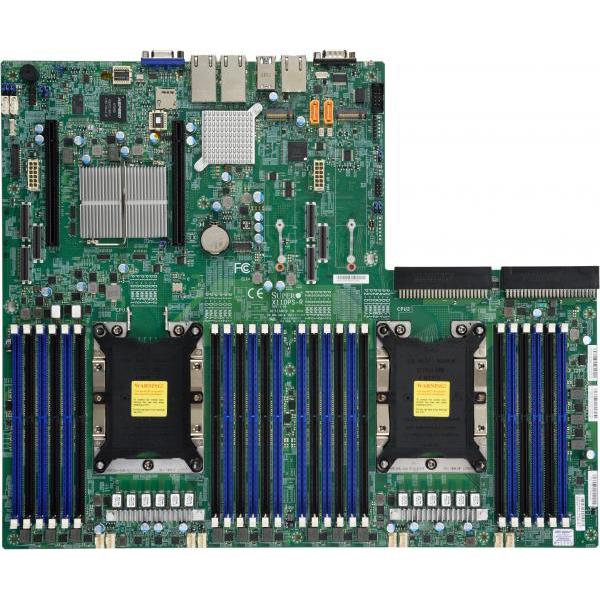

| Motherboard | Super X11DPS-RE | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C627 chipset | |
| Network Connectivity | Intel® X550 Dual Port 10GBase-T | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |

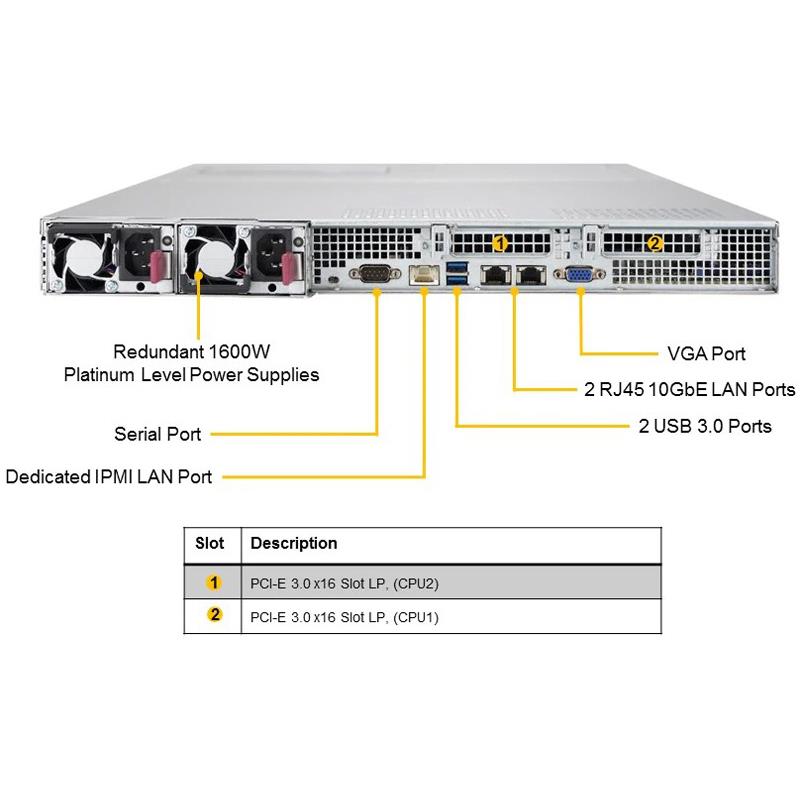

| Input / Output | ||
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| Serial Header | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| 32 EDSFF Long 9.5mm drive slots | ||
| Model | CSE-136HTS-R1K69P-E2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.26" (438mm) | |
| Depth | 35.95" (913mm) | |
| Weight | Net Weight: 55 lbs (24.95kg) | |
| Gross Weight: 90 lbs (40.82kg) | ||

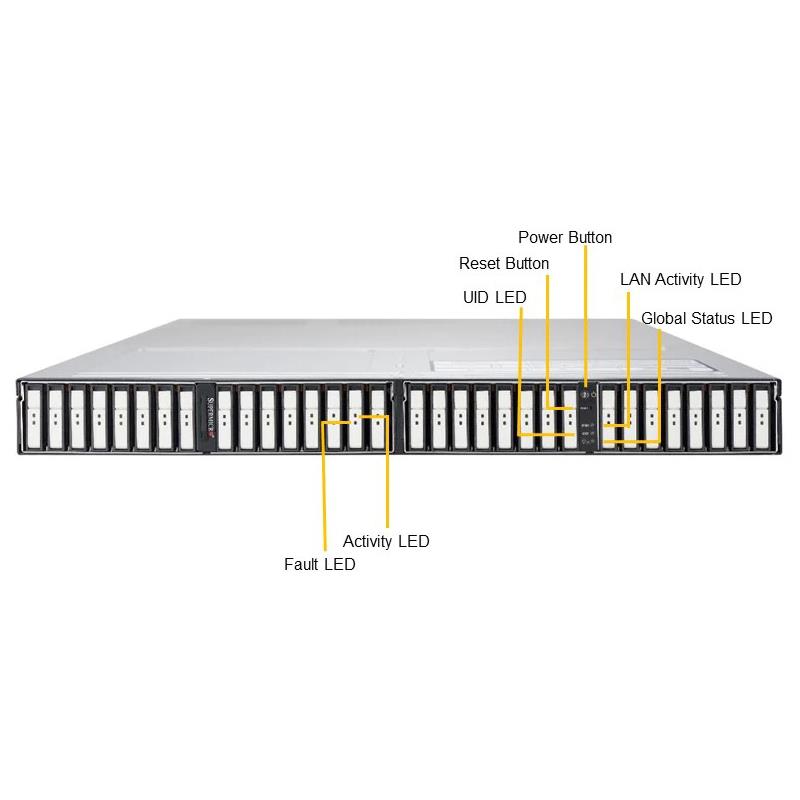

| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 Low-profile slots | |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x2 | |
| M.2 Form Factor: 2260/2280/22110 | ||
| M.2 Key: M-Key | ||
| *2 SATA Hybrid ports, RAID 0, 1 | ||
| Drive Bays | ||
| Hot-swap | 32 Hot-swap EDSFF Long 9.5mm Drive slots | |
| System Cooling | ||
| Fans | 8x 40x56mm PWM fans | |
| AC/DC240V Input Redundant Power Supply | ||
| AC/DC240V Input Redundant Power Supply | 1000 / 1600W 1U Redundant Power Supply | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1600W: 200 – 240Vac | ||
| 1600W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 185 mm | |
| Input | 100 -- 127Vac / 13.8A / 47-63Hz | |
| 200 -- 240Vac / 9.6A / 47-63Hz | ||
| 200 -- 240Vdc / 8.5A (CCC Only) | ||
| +12V | Max: 83A / Min: 0A (1000W) | |
| Max: 132A / Min: 0A (1600W) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Platinum Certified | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP up to 165W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperStorage 1029P-NEL32R (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPS-RE | 1 | Super X11DPS-RE Motherboard | |
| Motherboard / Chassis | CSE-136HTS-R1K69P-E2 | 1 | CSE-136HTS-R1K69P-E2 Chassis | |
| Backplane | BPN-EDS3-136P1-1 | 2 | 1U EDSFF NVMe backplane support 16x Ruler Gen-2 PCIe x4 devices, used in Ruler dense storage system,RoHS | |
| Riser Card | RSC-R1U-E16R | 2 | RSC-R1U-E16R | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K69P-1R | 2 | AC-DC 1600W at high and 1000W at low line, Platinum Level | |
| FAN 1 | FAN-0163L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| Fans | FAN-0163L4 | 8 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan | |
| Rail Set | MCP-290-11809-0N | 1 | Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| E1.L Dummy Tray | MCP-220-13604-0N | $ 20.50 | Up to 32 per server | Dummy Tray | ||
| E1.L Dummy Tray | - | 0 | - | |||
| Validated E1.L NVMe SSD | HDS-IEN0-SSDPEWKX153T8 | Up to 32 per server | Intel DC-P4510 E1.L EDSFF EDSFF Long 9.5mm TLC 15.36TB | |||
| Validated E1.L NVMe SSD | HDS-IEN0-SSDPEWNV153T8 | Up to 32 per server | Intel D5-P4326 E1.L EDSFF EDSFF Long 9.5mm QLC 15.36TB | |||
| Validated E1.L NVMe SSD | HDS-WEN1-0TS2122 | Up to 32 per server | WD Ultrastar SN640 E1.L EDSFF Long 9.5mm TLC 7.68TB 0.2DWPD | |||
| Validated E1.L NVMe SSD | HDS-WEN1-0TS2123 | Up to 32 per server | WD Ultrastar SN640 E1.L EDSFF Long 9.5mm TLC 15.36TB 0.2DWPD | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
