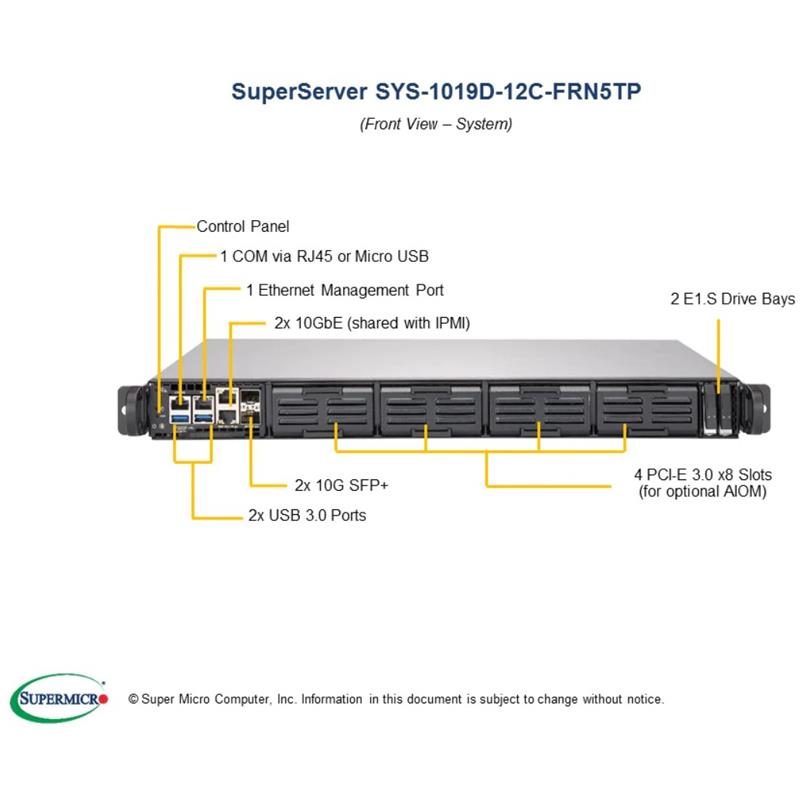

Supermicro SYS-1019D-12C-FRN5TP 1U Compact Barebone Embedded Intel Xeon D-2163IT Processor
• Centralized/Cloud Radio Access
• Network (C-RAN)
• Universal Customer Premise
• Equipment (uCPE)
• Software Defined WAN (SD-WAN)
• Network Function Virtualization
• (NFV)
Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-2163IT Processor, 2.10GHz 12-Core/24 Thread. Up to 512GB LRDIMM or 256GB RDIMM in 4 memory slots. 2x 10GbE (1x for management), 2x 10G SFP+ LAN ports. 4x PCI-E, 3x M.2 slots. 2x 2.5in (one shared with M.2) and 2 EDSFF drive bays. 400W PWS (CSE-103-R407B + X11SDS-12C)
This product is no longer available.
1. Intel® Xeon® D-2163IT Processor, 12-Core, 24 Threads, 2.1 GHz, 75W
2. Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
3. 4 PCI-E 3.0 x8 slots for optional AIOM
4. 2x 2.5" drive bays (one drive space shares with M.2), 2 E1.S (40°C ambient temperature only)
5. M.2 Slots: 2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA) (space shared with one 2.5" drive bay), 1 B-Key 3042 (PCI-E 3.0 x4/SATA) 1 E-Key 2230 (PCI-E 3.0 x2)
6. 2x 10GbE (shared with IPMI), 2x 10G SFP+, 1 Ethernet Management port
7. 2 USB 3.0, 1 VGA, 1 COM via RJ45 or Micro USB
8. 400W Redundant Platinum Level Power Supplies
Extra Specifications for Supermicro SYS-1019D-12C-FRN5TP 1U Compact Barebone Embedded Intel Xeon D-2163IT Processor
| Motherboard | ||
| Motherboard | Super X11SDS-12C | |
| Processor | ||
| CPU | Intel® Xeon® processor D-2163IT , CPU TDP support 75W | |
| Cores / Cache | 12 Cores, 24 Threads | |
| System Memory | ||
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
| Up to 256GB DDR4 ECC RDIMM | ||
| 4 DIMM slots | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM | |
| Operating speed up to 2133MHz | ||
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) ports via SoC controller | |
| Network Controllers | Dual 10G SFP+ via SoC | |
| Dual 10GBase-T (share with IPMI) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | VGA via BMC (option) | |
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 10G SFP+ LAN ports | |
| 2 RJ45 10GbE LAN ports (shared with IPMI) | ||
| 1 Ethernet Management port | ||
| USB | 2 USB 3.0 ports (front) | |
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM via RJ45 or Micro USB | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-103-R407B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 15" (381mm) | |
| Package | 6.9" (H) x 19.5" (W) x 22.4" (D) | |
| Weight | Gross Weight: 26.9 lbs (12.2 kg) | |
| Net Weight: 15.9 lbs (7.21 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 4 PCI-E 3.0 x8 slots for AIOM (AIOM is sold separately, it is not included in this standard/barebone system) | |
| M.2 | 2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA) (space share with one 2.5" drive bay) | |
| 1 B-Key 3042 (PCI-E 3.0 x4/SATA) | ||
| 1 E-Key 2230 (PCI-E 3.0 x2) | ||
| Drive Bays | ||
| Internal | 2x 2.5" drive bays (one drive space shares with M.2) | |
| Others | 2 E1.S (40°C ambient temperature only) | |
| System Cooling | ||
| Fans | 5x 40x40x56 mm 13K-11K RPM Counter-rotating Fans | |
| AC/DC240V Input Redundant Power Supplies | ||
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | 400W | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz | |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) | ||
| +12V | Max: 33A / Min: 0.5A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Level Certified | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 45°C (32°F to 113°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1019D-12C-FRN5TP (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SDS-12C | 1 | Super X11SDS-12C Motherboard | |
| Motherboard / Chassis | CSE-103-R407B | 1 | 1U Chassis | |
| Add-on Card / Module | AOM-SMF-TP4F-P | 1 | I/O Module for X11SDS, 2x SFP+, 2x 10G RJ45, 1x 1G RJ45, 1x RJ45 Console (mux micro-USB), 2x USB3.0, PDB,RoHS | |
| Cable 1 | CBL-0082L | 1 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
| Cable 2 | CBL-0212L | 1 | 4 PIN POWER CABLE FOR SC808 S809, S-RA, 20CM, 20AWG | |
| Cable 3 | CBL-0473L | 2 | SATA,INT,ROUND,ST-ST,21CM,30AWG | |
| Cable 4 | CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS | |
| * Power Supply | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
