- Supermicro SYS-6049GP-TRT 4U Barebone Dual Intel Processor

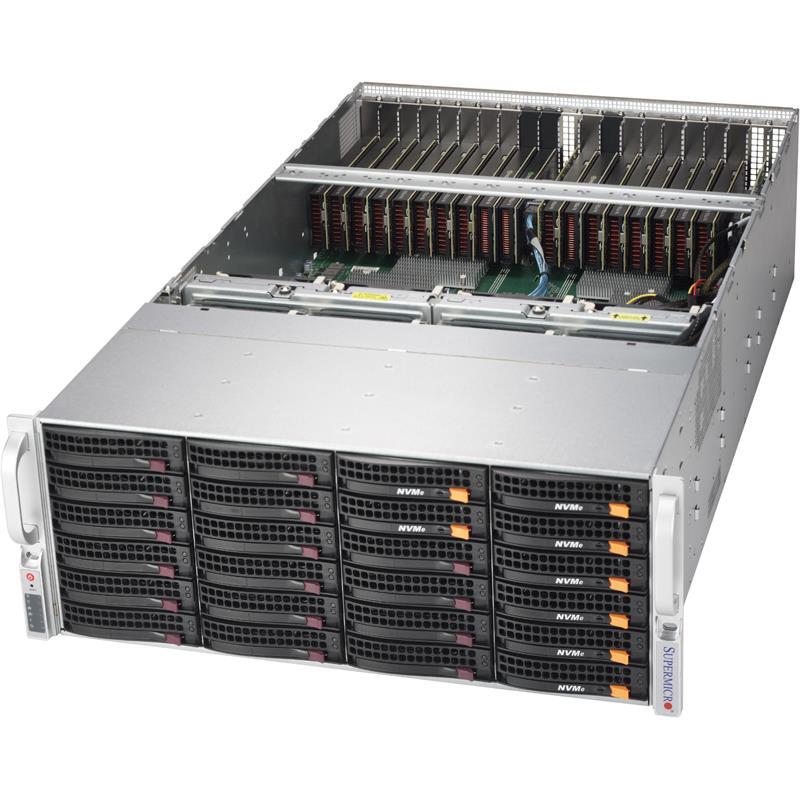

Supermicro SYS-6049GP-TRT 4U Barebone Dual Intel Processor
• AI/ML, Deep Learning Training and Inference
• Big Data Analytics
• High Performance Computing (HPC)
• Research Laboratory/National Laboratory
• Video Transcoding
• High Performance Computing (HPC)
• Video Transcoding
Barebone 4U Dual Xeon Scalable Gen2, up to 6TB ECC Reg 3DS LRDIMM, Intel C622 chipset, 24 Hot-swap 3.5in drive bays, 20 PCIe 3.0 x16 single-width slots, Dual 10GbE LAN ports, 2000W Redundant Power Supply (Titanium Level) - (CSE-848GTS-R4000P + X11DPG-OT-CPU + X11DPG-21-PCIE)
1. Supports 20 NVIDIA® T4 PCI-E Single-Width GPUs
2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
4. 20 PCI-E 3.0 x16 support up to 20 single width GPU; 1 PCI-E 3.0 x8 (FH, FL in x16 slot)
5. 24 Hot-swap 3.5" drive bays or 22 Hot-swap 3.5" drive bays + 2 U.2 NVMe 2.5" drives
6. 2x 10GBase-T LAN ports
7. 8 Hot-swap 92mm RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)
Extra Specifications for Supermicro SYS-6049GP-TRT 4U Barebone Dual Intel Processor
Motherboard | ||
Motherboard | Super X11DPG-OT-CPU | |
Processor | ||
CPU | Dual Socket P (LGA 3647) | |
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
Support CPU TDP 70-205W | ||
Cores | Up to 28 Cores | |
Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
GPU | ||
Supported GPUs | Compatible GPU list | |
20 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) | ||
NVIDIA T4 | ||
CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch CPU-GPU Interconnect | |
GPU-GPU Interconnect | PCI-E, NVIDIA® NVLink™ Bridge (Optional) | |
System Memory | ||
Memory Capacity | 24 DIMM slots | |
Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
Supports Intel® Optane™ DCPMM †† | ||
Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
On-Board Devices | ||
Chipset | Intel® C622 chipset | |
SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
Network Controllers | Dual Port 10GbE from C622 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Graphics | ASPEED AST2500 BMC | |
Input / Output | ||
SATA | 24 SATA3 (6Gbps) ports | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
2 RJ45 10GBase-T LAN ports | ||
USB | 4 USB 3.0 ports (rear) | |
Video | 1 VGA Connector | |
COM Port | 1 COM port (header) | |
System BIOS | ||
BIOS Type | AMI 32Mb SPI Flash ROM | |
Management | ||
Software | Watchdog | |
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SSM , SPM , SUM | ||
PC Health Monitoring | ||
CPU | 4+1 Phase-switching voltage regulator | |
Monitors for CPU Cores, Chipset Voltages, Memory. | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 4U Rackmountable | |
Rackmount Kit (MCP-290-00057-0N) | ||
Model | CSE-848GTS-R4000P | |
Dimensions | ||
Height | 7.0" (178mm) | |
Width | 17.2" (437mm) | |
Depth | 32.1" (815mm) | |
Weight | Net Weight: 65.5 lbs (29.7 kg) | |
Gross Weight: 100 lbs (45.3 kg) | ||
Available Colors | Black | |
Drive Bays / Storage | ||
Hot-swap | 24 Hot-swap 3.5" drive bays or 22 Hot-swap 3.5" drive bays + 2 U.2 NVMe 2.5" drives | |
M.2 | M.2 Interface: 1 PCI-E 3.0 x4 | |
Form Factors: 2280, 22110 | ||
Key: M-Key | ||
Expansion Slots | ||
PCI-Express | 20 PCI-E 3.0 x16 (FHHL) slots - supporting up to 20 NVIDIA T4 Single-Width GPUs | |
1 PCI-E 3.0 x8 (FH, FL in x16) slot | ||
System Cooling | ||
Fans | 8x 92mm RPM Hot-Swappable Cooling Fans | |
Power Supply | ||
Power Supply | 2000W Redundant Power Supplies with PMBus | |
Total Output Power | 1000W: 100 – 120Vac | |
1800W: 200 – 220Vac | ||
1980W: 220 – 230Vac | ||
2000W: 230 – 240Vac | ||
2000W: 200 – 240Vac (UL/CUL only) | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
200-220Vac / 10-9.5A / 50-60Hz | ||
220-230Vac / 10-9.8A / 50-60Hz | ||
230-240Vac / 10-9.8A / 50-60Hz | ||
200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
+12V | Max: 83.3A / Min: 0A (100-120Vac) | |
Max: 150A / Min: 0A (200-220Vac) | ||
Max: 165A / Min: 0A (220-230Vac) | ||
Max: 166.7A / Min: 0A (230-240Vac) | ||
Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
12Vsb | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Product SKUs | ||
Product SKUs | SuperServer 6049GP-TRT |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X11DPG-OT-CPU | 1 | Super X11DPG-OT-CPU motherboard | |
Motherboard / Chassis | MBD-X11DPG-21-PCIE-P | 1 | Super X11DPG-21-PCIE daughterboard | |
Motherboard / Chassis | CSE-848GTS-R4000P | 1 | CSE-848GTS-R4000P Chassis | |
Add-on Card / Module | AOC-S3108L-H8IR | 1 | LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 240HDD - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile | |
Backplane | BPN-SAS3-846EL1-N8 | 1 | 24-Port 4U Expander Backplane Support up-to 16x 3.5" SAS3/SATA3 HDD/SSD and 8 x SAS3/SATA3/NVMe Storage Devices | |
Cable 1 | CBL-PWEX-0673-1 | 2 | PWYCB,2X4F/P4.2 TO 2 1X4F/P5.08,65/70CM,16AWG,5/12V,RoHS | |
Cable 2 | CBL-PWEX-1028 | 2 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C | |
Cable 3 | CBL-SAST-0531 | 2 | MINI SAS HD,12G,INT,80CM,30AWG | |
Cable 4 | CBL-SAST-0819 | 2 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH | |
Parts | MCP-130-41802-0B | 1 | Black plastic palm cover for X10DRG-O-PCIE | |
Riser Card | RSC-X9DRG-O | 4 | RSC-X9DRG-O | |
Heatsink / Retention | SNK-P0068APS4 | 2 | 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform | |
* Power Supply | PWS-2K05A-1R | 4 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
* Cable 5 | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG | |
* Cable 6 | CBL-0174L | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH | |
* FAN 1 | FAN-0151L4 | 8 | 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF | |
* Front Panel | FPB-TMP-002 | 1 | Thermal Sensor board with 40cm I2C cable | |
* Drive Tray(s) | MCP-220-00075-0B | 24 | Black gen 5.5 hot-swap 3.5"; HDD tray | |
* Rear Window | MCP-240-84802-0N | 1 | 21 slot rear window for SC418X | |
* Parts | MCP-260-41801-0N | 1 | IO shield for X9DRG-O in SC418G | |
* Front Panel | MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 | |
* Rail Set | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2"; W | |
* Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
* Rail Set | MCP-290-00115-0N | 1 | Inner rail, quick-release type | |
* Rail Set | MCP-290-00117-0N | 1 | Outer rail, quick-release type | |
* FAN 2 | MCP-340-00044-0N | 1 | 92x92x38 mm, 11.5K RPM, 4-pin PWM Bare Fan |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays | MCP-220-00118-0B | $ 31.50 | 1-12 | Tool-less black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab) | ||
Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays | MCP-220-00043-0N | $ 26.00 | 0 | Black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab) | ||
Hot-swap 3.5" to 2.5" NVMe Drive Tray | MCP-220-00138-0B | $ 43.00 | 1-4 | Tool-less black hot-swap 3.5-to-2.5 converter NVMe drive tray (Orange tab) | ||
Cables | CBL-PWEX-1028 | $ 23.00 | 1 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C | ||
Cables | CBL-PWEX-1040 | $ 25.00 | 1 | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | ||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
