Supermicro SYS-1029UX-LL1-C16 1U Barebone Dual Intel Processor
• Qualified low latency NICs
• here
• Financial Analysis
• Business Critical Applications
• Enterprise Server
Barebone 1U Rackmount SuperServer, Dual Intel Xeon Scalable Processors (2 Intel Xeon Gold 6244 included), Intel C621 chipset, Up to 4TB DDR4 ECC 2933Mhz memory (12x 16GB DDR4 2933MHz included), 10 Hot-swap 2.5in drive Bays (8 SAS3 + 2 NVMe), Broadcom 3108 controller, Quad 1GbE via AOC-UR-i4G, Redundant 750W Redundant Power Supply (CSE-119UTS-R751P-T + MBD-X11DPU-XLL)
To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and SSD). At least one low-latency NIC from thismust be selected and installed into the system.
1. Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6244 included)
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, (12x 16GB DDR4-2933MHz included)
3. 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
4. 4 Gigabit Ethernet ports
5. 8 Hot-swap 2.5" SAS3 drive Bays; 2 Hot-swap NVMe bays
6. 8 heavy duty fans w/ optimal fan speed control
7. 750W Redundant Power Supplies Platinum Level (94%+)
Extra Specifications for Supermicro SYS-1029UX-LL1-C16 1U Barebone Dual Intel Processor
| Product SKUs | ||
| Product SKUs | SuperServer 1029UX-LL1-C16 (Black) | |
| Motherboard | ||
| Motherboard | Super X11DPU-XLL | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| Intel® Xeon® Gold 6244 included | ||
| Cores | Up to 12 Cores | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| 12x 16GB DDR4-2933MHz included | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (disabled) | |
| SAS | Broadcom 3108 controller for 8 SAS3 ports | |
| Network Connectivity | 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SAS | 8 SAS3 ports support via integrated 3108 Add-on Card | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 4 RJ45 Gigabit Ethernet ports | ||
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) | |
| Video | 1 VGA port | |
| Serial Port | 1 COM Port (1 rear) | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-119UTS-R751P-T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.5" (724mm) | |
| Weight | Gross Weight: 48 lbs (21.77 kg) | |
| Available Color | Black | |

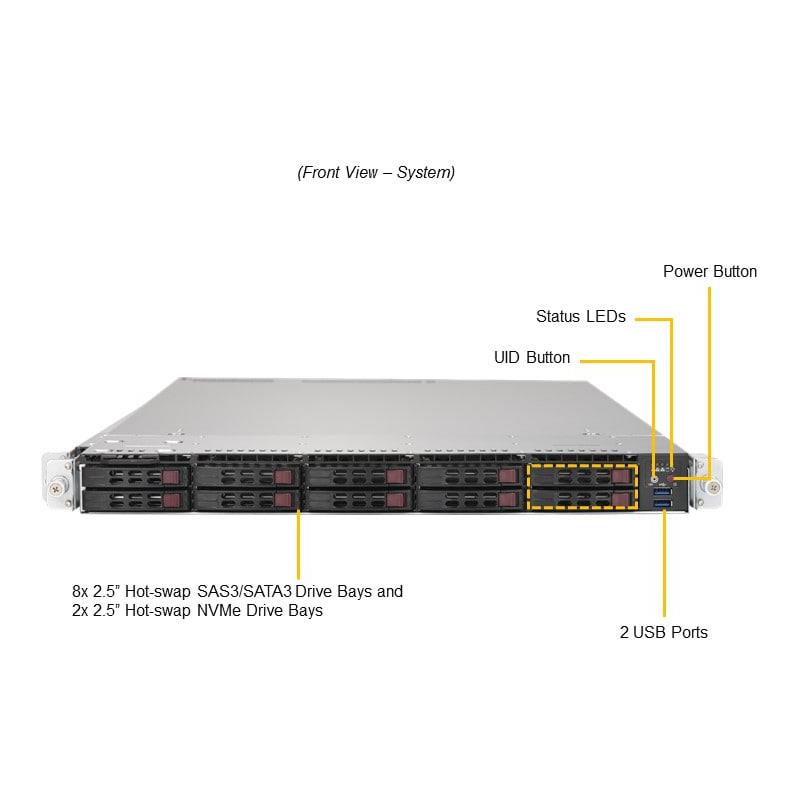

| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10") | |
| 1 PCI-E 3.0 x8 (Low Profile) | ||
| 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108) | ||
| Drive Bays | ||
| Hot-swap | 8 Hot-swap 2.5" SAS3 drive bays | |
| 2 Hot-swap 2.5" NVMe | ||
| System Cooling | ||
| Fans | 8 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output | |
| AC Input | 100-127Vac, 50-60Hz | |
| 200-240Vac, 50-60Hz | ||
| +12V | Max: 62.5A & Min: 0A (100Vac-127Vac) | |
| Max: 62.5A & Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A | |
| Min: 0A | ||
| Certification | Platinum Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPU-XLL | 1 | Super X11DPU-XLL Motherboard | |
| Motherboard / Chassis | CSE-119UTS-R751P-T | 1 | CSE-119UTS-R751P-T Chassis | |
| FAN | FAN-0101L4 | 8 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 | |
| CPU | P4X-LL16244 | 2 | Intel® Xeon® Gold 6244 | |
| Memory | MEM-DR416L-SL02-ER29 | 12 | 16GB DDR4-2933 1Rx4 LP ECC RDIMM,HF,RoHS | |
| Storage Control Card | AOC-S3108L-H8iR-16DD | 1 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |
| Power Supply | PWS-751P-1R | 2 | 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH | |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| CacheVault(s) | BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location | |||
| 1U Cable Management Arm | MCP-290-00152-0N | $ 152.00 | 1 | 1U Supermicro Cable Management Arm 2nd Gen | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
