Main Specifications |

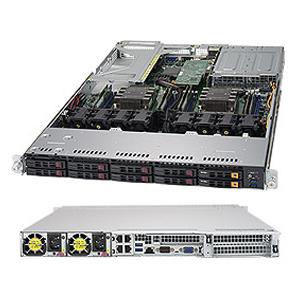

Device Type | SuperServer 1029UX-LL2-C16 |
Built-in Devices | Super X11DPU-XLL |
Form Factor | 1U Rackmount - CSE-119UTS-R751P-T |
Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 28.5" (724mm) |
Weight | Gross Weight: 48 lbs (21.77 kg) |
Enclosure Color | Black |
Processor |
Compatible Processors | Intel Xeon Gold 6246 included |
Compatible Socket | Dual Socket P (LGA 3647) |
Cache/Core | Up to 28 cores |
System Memory |
Memory Capacity | 16 DIMM slots, Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, 12x 16GB DDR4-2933MHz included |
Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
On-Board Devices |
Chipset | Intel C621 chipset |
SATA/SAS | SATA3 (disabled) |
| Broadcom 3108 controller for 8 SAS3 ports |
Network Connectivity | 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4) |
IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Graphics | ASPEED AST2500 BMC |
VGA | 1 VGA port |
Input / Output |
SAS/SATA | 8 SAS3 ports support via integrated 3108 Add-on Card |
LAN | 4 RJ45 Gigabit Ethernet ports, 1 RJ45 Dedicated IPMI LAN port |
USB(s) | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) |
Serial Ports | 1 COM Port (1 rear) |
System BIOS |
BIOS Type | AMI UEFI |
Management |
Software | IPMI 2.0, KVM with dedicated LAN, NMI, SSM, SPM, SUM, SuperDoctor 5, Watchdog |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | Power LED, Hard drive activity LED, Network activity LEDs, System Overheat LED / Fan fail LED / UID LED |
Expansion / Connectivity |
Expansion Slots Total (Free) | 1 PCI-E 3.0 x8 (Low Profile) |
| 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108) |
| 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10") |
Expansion Bays Total (Free) | 8 Hot-swap 2.5" SAS3 drive bays |
| 2 Hot-swap 2.5" NVMe |
System Cooling |
Fans/Air Shroud | 8 heavy duty fans with optimal fan speed control |
Power Supply |
Power Supply | 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output |
Certification | 80PLUS Platinum Level |
Parts List - (Items Included) |
Motherboard / Chassis | 1x MBD-X11DPU-XLL / CSE-119UTS-R751P-T |
Fan(s) | 8x FAN-0101L4 |
Power Supply Number | 2x PWS-751P-1R |
Miscellaneous |
Included Accessories | 2x Intel Xeon Gold 6246, 12x MEM-DR416L-SL02-ER29 |
| 1x AOC-S3108L-H8iR |
