| Main Specifications |

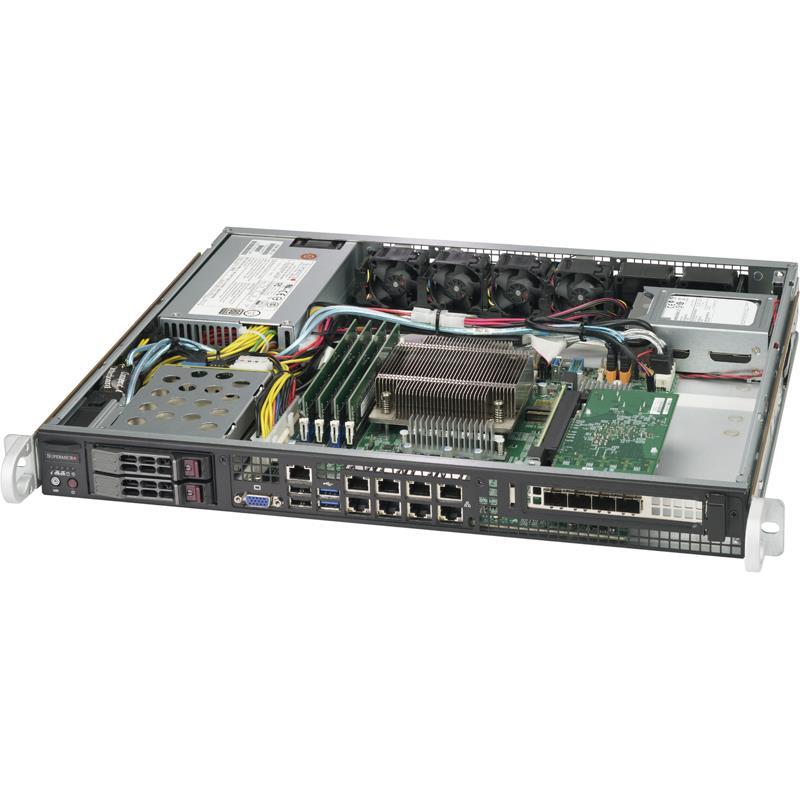

| Device Type | SuperChassis 513BTQC-350B |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 15.0" (381 mm) |
| Color | Black |
| Form Factor | 15" Mini 1U chassis |
| Max Supported Capacity | Support for maximum motherboard size - 12" x 13" E-ATX |
| Weight | 14.5 lbs (6.58 kg) |
| Processor |
| Compatible Processors | Single and Dual Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 full-height & half-length expansion slot(s) (Riser Card Required) |
| Drive Bays |
| Hot-swap | SAS or enterprise SATA HDD only recommended |
| 2 x 2.5" hot-swap drive bay |
| Internal | Optional up to 4 x 2.5" fixed with bracket |
| Parts List - (Items Included) |
| Backplane | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD |
| 1x BPN-SAS3-826TQ-B2B |
| Drive Trays | 2x MCP-220-00180-0B |
| Mounting Rails | 1x MCP-290-00102-0N, 1x MCP-290-00108-0B |
| Parts | 2x MCP-340-00001-01, 1x MCP-260-00078-0B |
| Front Panel |
| Buttons | Power On/Off button, Unit Identification (UID) button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, System Information LED |
| Networking |
| Ports | 4x LAN Ports, 4x USB Ports, 1x IPMI, 1x VGA |
| System Cooling |
| Fans | 4 x 40x28mm PWM fans |
| 4x FAN-0154L4 |
| Optional 2 x 40x28mm PWM fans |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5C - 35C (41F - 95F) |
| Non-Operating Temperature Range: -40C - 70C (-40F - 158F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 1U 350W Multi-output power supply Platinum level |
| 1x PWS-350-1H |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB |
| Parts List |
| Cables | 1x CBL-0160L, 1x CBL-0335L |
| Standard Parts List |
| Cooling Fan & Accessory | 1x MCP-320-00060-0N |
| Front Panel | 1x MCP-280-80901-0N |
| Rear Window | 1x MCP-240-51301-0N |
