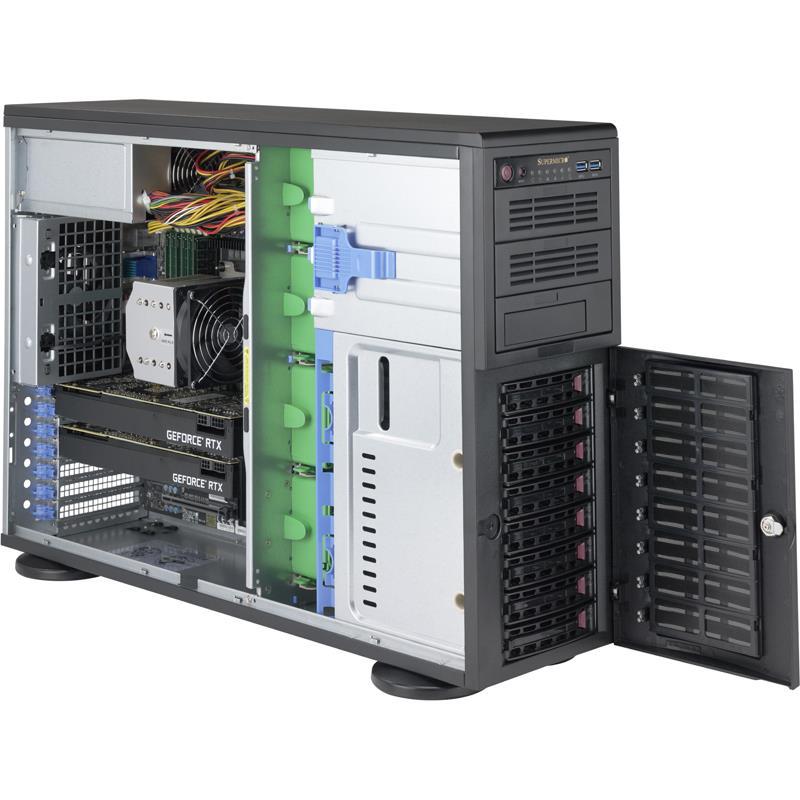

Supermicro SYS-5049A-T Tower Barebone Single Processor
Barebone Tower for single Xeon Scalable Gen.2 Processor. Up to 3TB DDR4-2933MHz memory in 12 DIMM slots. 8x SATA3 ports with RAID support, 1x 1GbE LAN and 1x 10GbE LAN ports, 4x PCI-E 3.0 x16 and 2 PCIe 3.0 x8, 1x M.2. 1000W/1200W Platinum Power Supply (CSE-743TS-1200BP-SQ + MBD-X11SPA-TF)
This product is no longer available.
1. Single Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
3. 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots, M.2 Interface: 4 PCI-E 3.0 x4 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key * M.2 support RAID 0,1 (up to RAID 5, 10), VROC key is required for RAID 1
4. 1x 10GBase-T and 1x 1GbE LAN ports
5. 7.1 HD Audio
6. 8 Hot-swap 3.5" SAS3/SATA3 drive bays with SGPIO
7. 1000/1200W Multi-output Power Supply Platinum Level Certified
Extra Specifications for Supermicro SYS-5049A-T Tower Barebone Single Processor
| Motherboard | ||

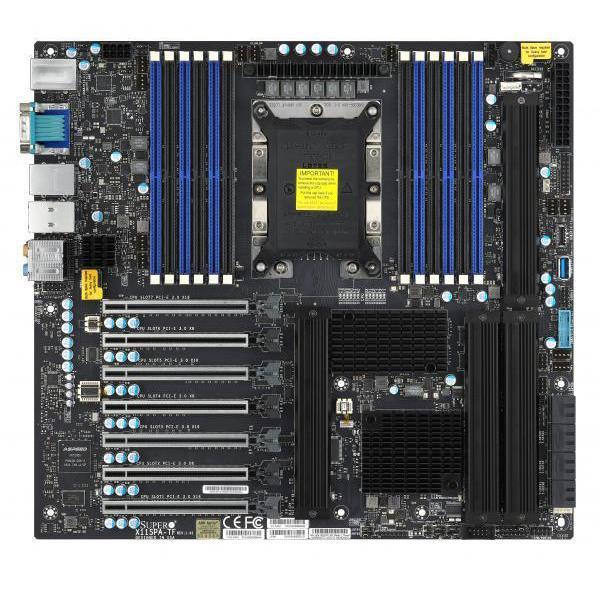

| Motherboard | Super X11SPA-TF | |
| Processor/Cache | ||
| CPU | Single Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Support CPU TDP up to 205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | ||
| Memory Capacity | 12 DIMM slots | |
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Single LAN with Realtek RTL8211E PHY (dedicated IPMI) | |
| Single LAN with Intel® Ethernet Controller I210-AT | ||
| Single LAN with Aquantia® AQC107 10G Ethernet Controller | ||
| IPMI | ASPEED AST2500 | |
| Audio | 7.1 channel HD Audio by Realtek ALC888S | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 1 RJ45 Gigabit Ethernet LAN port | ||
| 1 RJ45 10GBase-T Ethernet LAN port | ||
| USB | 6 USB 3.1 Gen1 ports (4 rear, 2 headers) | |
| 2 USB 2.0 ports (2 headers, Type A) | ||
| 4 USB 3.1 Gen2 ports (1 rear Type A, 1 rear Type C, 1 Type A header, 1 Type C header) | ||
| Audio | 7.1 HD Audio with optical S/PDIF | |
| Video | 1 VGA port via AST2500 BMC | |
| Serial Port / Header | 2 COM ports (1 rear, 1 header) | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash with AMI BIOS | |
| Management | ||
| Software | Watchdog | |
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable / Tower | |
| Optional Rackmount Kit | ||
| Model | CSE-743AC-1K26B-SQ | |
| Dimensions and Weight | ||
| Height | 17.8" (452mm) | |
| Width | 7.0" (178mm) | |
| Depth | 25.5" (648mm) | |
| Gross Weight | 71 lbs (32.2 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat / Fan Fail LED | ||
| Ports | 2 front USB 3.0 Ports | |
| Expansion Slots | ||
| PCI-Express | 4 PCI-E 3.0 x16 slots | |
| 3 PCI-E 3.0 x8 (in x16 slot) | ||
| M.2 | Key: M-Key | |
| M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 | ||
| Form Factor: 2242/2260/2280/22110 | ||
| M.2 support RAID 0, 1 (up to RAID 5, 10), VROC key is required for RAID1 *NOTE: When M.2 slots C01 or C02 is installed, PCIe slot 1 is disabled. When M.2 C03 or M.2 C04 is installed, PCIe slot 4 works x8. | ||
| Drive Bays | ||
| Hot-swap | 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default) | |
| Peripheral Bay(s) [90 o Rotatable] | 3x 5.25" drive bays | |
| Backplane | ||
| Backplane | Supports 8 SATA3 or 8 SAS3 HDD | |
| System Cooling | ||
| Fans | 2 Super quiet PWM chassis fans (support up to 4 fans) | |
| 1 Super quiet rear fan with optimal fan speed control | ||
| Power Supply | ||
| Power Supply | 1200W PS2 Multi-output Power Supply | |
| Certification | Platinum Certified | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 1000W with Input 100 - 120Vac | |
| 1200W with Input 120 - 240Vac | ||
| AC Input Frequency | 50-60 Hz | |
| Dimensions (L x W x H) | 185 x 150 x 86 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.3A / Min: 0A | |
| +12V | Max: 83A (100Vac - 120Vac) | |
| Max: 99A (120Vac - 240Vac) | ||
| +5V | Max: 20A / Min: 0A | |
| +3.3V | Max: 20A / Min: 0A | |
| +5Vsb | Max: 3A / Min: 0A | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-5049A-T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SPA-TF | 1 | Super X11SPA-TF Motherboard | |
| Motherboard / Chassis | CSE-743AC-1K26B-SQ | 1 | 4U Chassis | |
| Backplane | BPN-SAS3-743A | 1 | 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis | |
| Cable 1 | CBL-SAST-0631 | 2 | MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG | |
| Parts | MCP-260-00142-0N | 1 | STD I/O Shield for X11SPA-TF with EMI Gasket | |
| Manual | MNL-2196-QRG | 1 | SYS-5049A-T Quick Reference Guide | |
| * Power Supply | PWS-1K26P-PQ | 1 | 1000W/1200W PS2 Multi output power supply with modular cable | |
| * Cable 2 | CBL-0084 | 1 | Front control cable 16 pin split, 6 | |
| * Cable 3 | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM | |
| * Cable 4 | CBL-0160L | 1 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 5 | CBL-0216L | 4 | 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM) | |
| * FAN 1 | FAN-0103L4 | 1 | 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan | |
| * FAN 2 | FAN-0104L4 | 2 | 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan | |
| * Drive Tray(s) | MCP-220-00193-0N | 8 | 2.5"/3.5" 2-in-1 HDD tray |
