- Supermicro CSE-813MFTQC-350CB2 Server Chassis 1U Rackmount

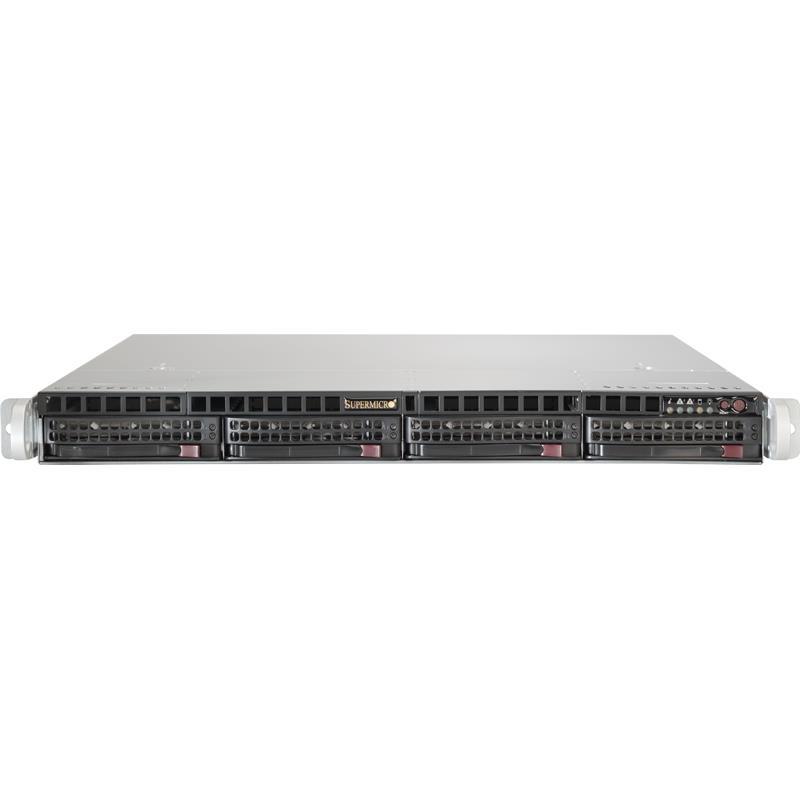

Supermicro CSE-813MFTQC-350CB2 Server Chassis 1U Rackmount
Rackmount 1U Chassis w/ 350W Platinum Level Power Supply for motherboard up to 12in x 10in, for Dual/Single CPU Intel or AMD - Includes : 4x 3.5in Hot-Swap SAS/SATA drive bays with SES2, 1U 4-port 12Gbps Backplane support 4x 3.5in SAS/SAS HDD/SSD, 1 full-height / full-length expansion slot - SC813MFTQC-350CB2 (Black)
1. 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
2. 4 x 3.5" hot-swap SAS/SATA
3. 1U 4-Port 12Gbps Backplane Support 4x3.5
4. 1U 350W Multi-output power supply Platinum level
5. 1 full height expansion slot(s)
6. 4 x 40x28mm PWM fan(s)
7. Optional 2 x 40x28mm PWM fan(s)
Extra Specifications for Supermicro CSE-813MFTQC-350CB2 Server Chassis 1U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 350W Multi-output power supply Platinum level | |
| Power Efficiency | 93% | |
| Total Output Power and Input | 350W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 180 x 100 x 40 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.2A / Min: 0A | |
| +12V | Max: 29A / Min: 0.5A (100Vac - 240Vac) | |
| +5V | Max: 15A / Min: 0.2A | |
| +3.3V | Max: 12A / Min: 0.2A | |
| +5Vsb | Max: 3A / Min: 0A | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") | |
| Processor Support | ||
| Processor Support | Dual, single Intel® / AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 19.85" (503 mm) | |
| Gross Weight | 31 lbs (14.06 kg) | |
| Packaging (W x H x L) | 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1 full height expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 4 x 3.5" hot-swap SAS/SATA | |
| Backplane | ||
| Backplane | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x Slim DVD-ROM Drive | |
| Systems Cooling | ||
| Fans | 4 x 40x28mm PWM fan(s) | |
| Optional 2 x 40x28mm PWM fan(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Mounting Rail | CSE-PT52L | $ 58.00 | 0 | Sliver chassis rail set for SC813M,515,113M | ||
| Front Bezel | CSE-PTFB-813LB | $ 27.00 | 0 | BLACK SC813 FRONT BEZEL, PB FREE | ||
| Peripheral Drive(s) | DVM-PNSC-DVD-SBT3 | 0 | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| Peripheral Drive(s) | DVM-TEAC-DVD-SBT4 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| Peripheral Drive(s) | MCP-220-00110-0B | $ 36.50 | 0 | Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF | ||
| Peripheral Drive(s) | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
