- Seagate ST3000NM000A Hard Drive 3TB SATA3 6Gb/s 7.2K RPM 3.5in 256MB Cache, 512N - Exos 7E8 Series

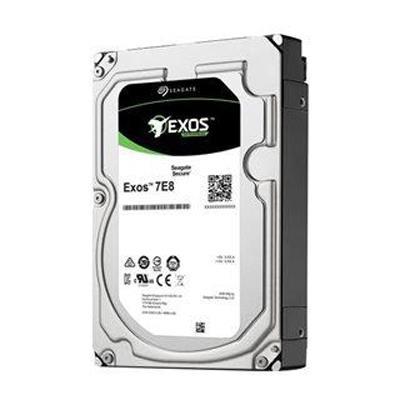

Seagate ST3000NM000A Hard Drive 3TB SATA3 6Gb/s 7.2K RPM 3.5in 256MB Cache, 512N - Exos 7E8 Series
• Backed by a 2 million hour MTBF rating
• Low TCO for demanding 24×7 operations
• Trusted performance; Rock-solid reliability
• Hyperscale/cloud data centers applications
Hard Drive 3TB SATA3 6Gb/s 7.2K RPM 3.5in 256MB Cache, 512N - Cimarron Series - Enterprise Class (Bulk, OEM) - OEM
• 256 MB data buffer
• 7200 RPM spindle speed
• PowerChoice for selectable power savings
• Supports latching SATA cables and connectors
• Support for S.M.A.R.T. drive monitoring and reporting
• State-of-the-art cache and on-the-fly error-correction algorithms
• High instantaneous (burst) data-transfer rates (up to 600MB per second)
• Worldwide Name (WWN) capability uniquely identifies the drive
• Full-track multiple-sector transfer capability without local processor intervention
• Perpendicular recording technology provides the drives with increased areal density
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns
• Native Command Queuing with command ordering to increase performance in demanding applications
• Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability
Extra Specifications for Seagate ST3000NM000A Hard Drive 3TB SATA3 6Gb/s 7.2K RPM 3.5in 256MB Cache, 512N - Exos 7E8 Series
| Main Specifications | ||
| Capacity | 3TB | |
| Device Type | Hard drive - internal - Format (512n SATA) | |
| Dimensions (WxDxH) | Height 1.028 x Width 4.010 x Depth 5.787 in | |
| Form Factor | 3.5in | |
| Interface | SATA3 | |
| Weight | 1.58 lbs | |
| Interface Type | 6.0, 3.0, 1.5 | |
| Included Qty | 5 | |
| Hard Drive | ||
| Spindle Speed | 7200RPM | |
| Performance | ||
| Average Latency | 4.16 | |
| Max Sustainable Transfer Rate | 215MB/s | |
| Rotational Vibration | 12.5 | |
| Expansion / Connectivity | ||
| Interface Ports | Single | |
| Reliability | ||
| Bytes per Sector | 512 | |
| Non-Recoverable Errors | 1 sector per 10E15 | |
| Power-On Hours per Year | 8760 | |
| Annual Failure Rate (AFR) | 0.44% | |
| Miscellaneous | ||
| MTBF | 2,000,000hr | |
| Applications | Hyperscale applications/cloud data centers | |
| Massive scale-out data centers | ||
| High-capacity density RAID storage | ||
| Mainstream enterprise external storage arrays | ||
| Distributed file systems, including Hadoop and Ceph | ||
| Enterprise backup and restoreD2D, virtual tape | ||
| Centralized surveillance | ||
| OLTP and HPC applications | ||
| Features | Humidity Sensor, SuperParity, Low Halogen, PowerChoice Technology, PowerBalance Technology, 256 Cache Multisegmented (MB), Advanced Write Caching (Internal NOR flash) | |
| Environmental Parameters | ||
| Min Operating Temperature | 5C 60C | |
| Shock Tolerance | Operating: 70/40Gs - Non operating: 150/300 | |
| Power | ||
| Average Operating Power | 10.77W | |
| Idle (W) | 5.38W | |
| Requirement | +12 V and +5 V | |
