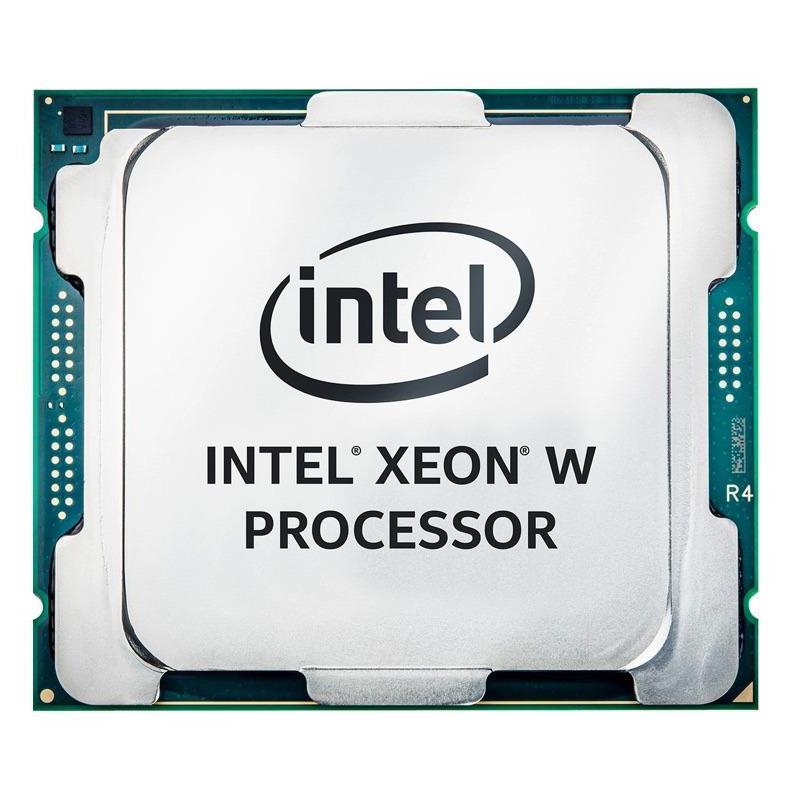

- Intel CD8069504152802 Xeon W-3235 3.3GHz 12-Core Processor - Cascade Lake
Intel CD8069504152802 Xeon W-3235 3.3GHz 12-Core Processor - Cascade Lake
• Built-in Error-Correcting code (ECC) Support
• Optimized for mainstream workstation professionals
• Enhanced SpeedStep; Hyper-Threading Technology
• Intel Optane SSD 905P support; Virtual RAID on CPU
3.3GHz Xeon W-3235 12-Core (24 Threads), FCLGA3647 socket, 19.25MB Cache, 14nm, 180W TDP, HT (OEM, Tray)
• The Intel Xeon W-3200 processors are purpose built and optimized for advanced workstation professionals in a single-socket solution
• These processors are designed for heavily and lightly threaded, I/O-intensive workloads across architecture, engineering, and construction (AEC), media and entertainment (M&E), artificial intelligence (AI), oil & gas, and data sciences
Extra Specifications for Intel CD8069504152802 Xeon W-3235 3.3GHz 12-Core Processor - Cascade Lake
| Main Specifications | ||
| Clock Speed | 3.30 GHz | |
| Device Type | Processor | |
| Manufacturing Process | 14 nm | |
| Max Turbo Speed | 4.40 GHz | |
| Multi-Core Technology | 12 | |
| Number of Threads | 24 | |
| Processor Number | W-3235 | |
| Product Collection | Intel Xeon W Processor | |
| Code Name | Products formerly Cascade Lake | |
| Vertical Segment | Workstation | |
| QPI/UPI | # of UPI Links: 0 | |
| Processor | ||
| Cache | 19.25 MB | |
| Thermal | ||
| Design Power | 180 W | |
| Specification | 72C | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 1 TB | |
| Memory Types | DDR4-2933 | |
| Maximum Memory Speed | 2933 MHz | |
| Max # of Memory Channels | 6 | |
| ECC Memory Supported | Yes | |
| Intel Optane DC Persistent Memory Supported | No | |
| Expansion Options | ||
| Scalability | 1S | |
| PCI Express Revision | 3.0 | |
| Max # of PCI Express Lanes | 64 | |
| Package Specifications | ||
| Sockets Supported | FCLGA3647 | |
| Case Temperature | 72°C | |
| Package Size | 76.0mm x 56.5mm | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Intel Trusted Execution Technology, Execute Disable Bit, Intel Boot Guard, Intel Run Sure Technology, Mode-based Execute Control (MBE) | |
| Miscellaneous | ||
| Features | Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Intel Virtualization Technology for Directed I/O (VT-d), Intel VT-x with Extended Page Tables (EPT), Intel TSX-NI, Intel Turbo Boost Max Technology 3.0, Intel Speed Shift Technology, Intel Advanced Vector Extensions 512 (AVX-512), Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Run Sure Technology, Intel Boot Guard, Intel Deep Learning Boost (DL Boost), Intel vPro Platform Eligibility | |
| Package Type | OEM, Tray | |
