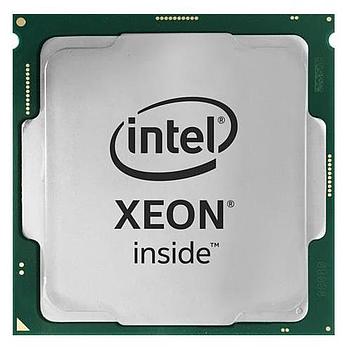

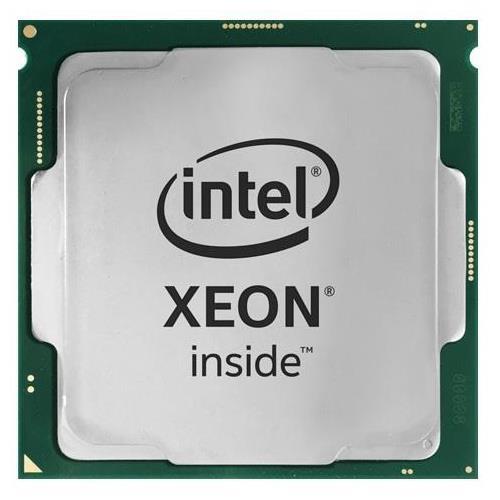

- Intel CM8068404174407 Xeon E-2274G 4GHz 4-Core Processor
Intel CM8068404174407 Xeon E-2274G 4GHz 4-Core Processor
• Deliver cloud computing; real-time analytics
• Improve data center efficiency and reliability
• For mission-critical business; big data insights
• Enhanced SpeedStep; Hyper-Threading Technology
4GHz Xeon E-2274G 4-Core, 8MB, 83W processor, UHD Graphics P630, Socket 1151 H4 - Coffee Lake - OEM
• Deliver cloud computing, real-time analytics, processing for your mission-critical business, and big data insights. Improve data center efficiency and reliability to handle any workload
Extra Specifications for Intel CM8068404174407 Xeon E-2274G 4GHz 4-Core Processor
| Main Specifications | ||
| Max Turbo Speed | 4.00 GHz | |
| Device Type | Processor | |
| Manufacturing Process | 14 nm | |
| Multi-Core Technology | 4 Cores | |
| Number of Threads | 8 threads | |
| Processor Number | E-2274G | |
| Product Collection | Intel Xeon E Processor | |
| Code Name | Products formerly Coffee Lake | |
| Vertical Segment | Server | |
| Integrated Graphics | ||
| Base Frequency | 350 MHz | |
| Features IG | Intel Clear Video Technology, Intel Clear Video HD Technology, InTRU 3D Technology, Intel Quick Sync Video, Triple Display Capable | |
| Max Dynamic Frequency | 1.20 GHz | |
| Max Supported Memory Size | 128 GB | |
| Max Supported Resolution | 4K Support: Yes, at 60Hz | |
| Max Resolution (HDMI 1.4): 4096x2160@24Hz | ||
| Max Resolution (DP): 4096x2304@60Hz | ||
| Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz | ||
| Type | Intel UHD Graphics P630 | |
| Processor | ||
| Cache | 8 MB | |
| Thermal | ||
| Desigh Power | 83 W | |
| Specification | 69.3C | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 128 GB | |
| Memory Types | DDR4 2666 | |
| Max # of Memory Channels | 2 | |
| ECC Memory Supported | Yes | |
| Expansion Options | ||
| Scalability | 1S | |
| PCI Express Revision | 3.0 | |
| PCI Express Configurations | 1x16, 2x8, 1x8/2x4 | |
| Max # of PCI Express Lanes | 16 | |
| Package Specifications | ||
| Sockets Supported | FCLGA1151 | |
| Max CPU Configuration | 1 | |
| Case Temperature | 69.3°C | |
| Package Size | 37.5mm x 37.5mm | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Secure Key, Intel Software Guard Extensions, Intel Memory Protection Extensions, Intel OS Guard, Intel Trusted Execution Technology, Execute Disable Bit, Intel Boot Guard | |
| Miscellaneous | ||
| Features | Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel TSX-NI, Intel OS Guard, Intel Software Guard Extensions (SGX), Intel Memory Protection Extensions (MPX), Intel Optane Memory Supported, Intel Boot Guard, Intel vPro Platform Eligibility | |
| Package Type | OEM, Tray | |
