- Supermicro AOC-AG-I8 i350 Gigabit Controller Card 8-Port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0

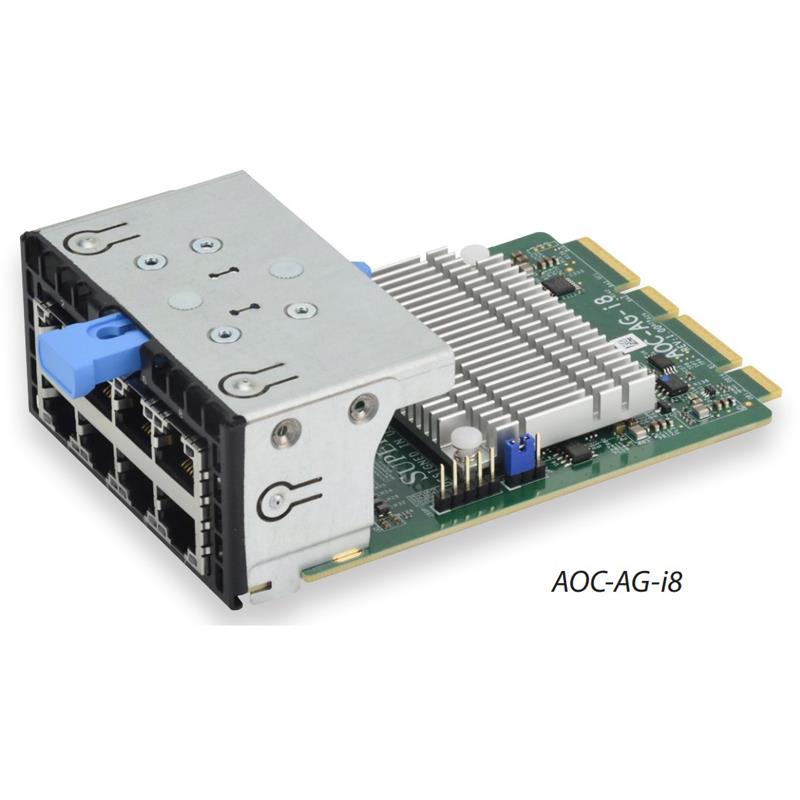

Supermicro AOC-AG-I8 i350 Gigabit Controller Card 8-Port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
Based on the Intel GbE network controller i350
Highly flexible, scalable controller 8 Gigabit Ethernet ports
Verified with Supermicro servers, storage and IoT systems
AIOM 8-port GbE RJ45, Intel i350-AM4 Card MUST be bundled with Supermicro System, ONLY
8 RJ45 Connectors
Intel i350 GbE controller
NC-SI for Remote Management
Energy Efficient Ethernet (EEE)
Advanced I/O Module (AIOM) Form Factor
Asset Management Features with thermal sensor
Reliable and proven Gigabit Ethernet technology
Extra Specifications for Supermicro AOC-AG-I8 i350 Gigabit Controller Card 8-Port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
| Main Specifications | ||
| Device Type | Ethernet Adapter Card | |
| Form Factor | Advanced I/O Module (AIOM) | |
| Dimensions (WxDxH) | Card PCB dimensions: 76mm x 108.9mm (W x D) | |
| Networking | ||
| Controller Type | Intel i350 GbE | |
| Port Quantity | 8 RJ45 Connectors | |
| Ethernet | IEEE 802.3 auto-negotiation for speed, duplex, and flow control | |
| IEEE 802.3x and 802.3z compliant flow control support | ||
| Automatic cross-over detection function (MDI/MDI-X) | ||
| 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant | ||
| IEEE 1588 protocol and 802.1AS implementation | ||
| Management Features | Energy Efficient Ethernet (EEE) | |
| DMA Coalescing reduces platform power consumption | ||
| Active State Power Management (ASPM) support | ||
| LAN disable function | ||
| Low Power Link Up Link Speed Control | ||
| Virtualization Features | PC-SIG SR-IOV support | |
| VM to VM Packet forwarding (Packet Loopback) | ||
| Flexible Port Partitioning | ||
| IEEE 802.1q VLAN support | ||
| IEEE 802.1q advanced packet filtering | ||
| Jumbo Frames support | ||
| Performance | TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage | |
| Low Latency Interrupts | ||
| Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage | ||
| Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments | ||
| Intelligent interrupt generation | ||
| Software / System Requirements | ||
| OS Required | Windows, RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMWare | |
| Miscellaneous | ||
| Cables Required | RJ45 Category 5/5e up to 100m | |
| RoHS | RoHS Compliant 6/6 | |
| Compatible Servers | SYS-1019D-FRN5TP | |
| Power | ||
| Power Consumption | Typical 7.4W; Maximum 8.8W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0°C to 55°C (32°F to 131°F) | |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
