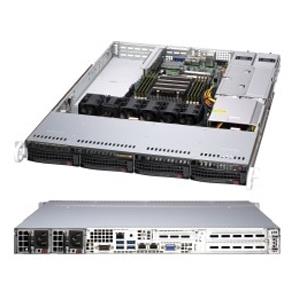

Supermicro AS-1014S-WTRT 1U Barebone Single AMD Processor
• DB Processing & Storage
• Data Center Applications
• Firewall Applications
Barebone 1U Rackmount Server Socket SP3 for Single AMD EPYC 7000 Series - Up to 1TB Registered DDR4 2666/2933/3200MHz, 4x Hot-Swap 3.5in drive bays, 4x Sata3 ports (optional 4 U.2 NVMe PCIe 3), 2x 10GbE ports, VGA, IPMI 2.0, 500W 80 Platinum Level Certified Power Supply w/ PMBus - (H12SSW-NT + SC815TS-R504WBP4) - AS -1014S-WTRT
1. Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 4 Hot-swap 3.5" SATA3 drive bays, Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
7. 1 VGA, 5 USB 3.0 (4 rear, 1 Type A)
8. 2 SuperDOM (Disk on Module) ports
9. 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1014S-WTRT 1U Barebone Single AMD Processor
| Motherboard | ||
| Motherboard | Super H12SSW-NT | |
| Processor/Cache | ||
| CPU | Socket SP3 | |
| Support CPU TDP up to 280W | ||
| Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Dual 10GBase-T LAN with via Broadcom BCM57416 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| NVMe | 4 U.2 NVMe Support via optional kit | |
| SATA | 4 SATA3 (6 Gbps) ports | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (4 rear, 1 Type A) | |
| Video | 1 VGA port | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SUM | ||
| Super Doctor 5 | ||
| IPMI 2.0 , KVM with dedicated LAN | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-815TS-R504WBP4 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 7.63" (H) 23.42" (W) 31.45" (D) | |
| Weight | Gross Weight: 46 lbs (20.87kg) | |
| Net Weight: 22 lbs (9.98kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 4.0 x16 (FHFL) slots | |
| 1 PCI-E 4.0 * x16 (LP) slot | ||
| 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots | ||
| * Limited Support : On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed. | ||
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays | |
| Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices | ||
| Peripheral | 1 Slim DVD-ROM drive bay (optional) | |
| Backplane | ||
| Backplane | SAS/SATA/NVMe HDD Backplane | |
| System Cooling | ||
| Fans | 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC | |
| Power Supply | ||
| Power Supply | 500W Redundant Power Supplies with PMBus | |
| Total Output Power | 500W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| Input | 100-240Vac, 50-60Hz, 6.1-2.6A | |
| +12V | Max: 42A / Min: 0.5A | |
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| With Power Distributor | +5V: 25A | |
| +3.3V: 12A | ||
| -12V: 0.6A | ||
| Certification | Platinum Certified | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 1014S-WTRT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H12SSW-NT | 1 | Super H12SSW-NT Motherboard | |
| Motherboard / Chassis | CSE-815TS-R504WBP4 | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices | |
| Cable | CBL-SAST-0827 | 1 | SLIMLINE SAS x8 (LE) to 8 SATA x4,INT, 70CM,32AWG, 85 O | |
| Riser Card | RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0062P | 1 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Power Supply | PWS-504P-1R | 2 | 500W 1U Redundant PWS W/ 54.5MM Wide | |
| Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 | |
| Fan | FAN-0141L4 | 4 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | |
| Parts | MCP-240-00099-0N | 1 | 1U WIO riser card bracket for SC113, SC815, SC119, SC819 | |
| Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| Rear Window | MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS | |
| Rail Set | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2"W SC815 | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2.5" to 3.5" Converter Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray | ||
| 2.5" to 3.5" Toolless Converter Tray | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| Optional Kit for 4 U.2 NVMe Drive Support | CBL-SAST-0817 | $ 51.50 | 2 | SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 36CM,34AWG | ||
| Optional Kit for 4 U.2 NVMe Drive Support | MCP-220-00138-0B | $ 43.00 | 4 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT5 | $ 51.50 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 28.50 | 1 | Slim SATA DVD mounting kit | ||
| Cooling Fan | FAN-0141L4 | $ 36.00 | 2 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | ||
| Storage Controller card & cable | AOC-S3108L-H8iR | 1 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | CBL-SAST-0699 | $ 29.00 | 1 | MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro | ||
| Storage Controller card & cable | FAN-0141L4 | $ 36.00 | 2 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | ||
| Storage Controller card & cable | AOC-S3108L-H8iR-16DD | 1 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | CBL-SAST-0699 | $ 29.00 | 1 | MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro | ||
| Storage Controller card & cable | FAN-0141L4 | $ 36.00 | 2 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | ||
| Storage Controller card & cable | AOC-S3008L-L8i | 1 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD, RAID 0, 1, 10 | |||
| Storage Controller card & cable | CBL-SAST-0699 | $ 29.00 | 1 | MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro | ||
| Storage Controller card & cable | FAN-0141L4 | $ 36.00 | 2 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | ||
| Storage Controller card & cable | AOC-S3008L-L8e | 1 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD HBA | |||
| Storage Controller card & cable | CBL-SAST-0699 | $ 29.00 | 1 | MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro | ||
| Storage Controller card & cable | FAN-0141L4 | $ 36.00 | 2 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | ||
| CacheVault | BTR-CV3108-1U1 | $ 324.50 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray | ||
| CacheVault | BTR-TFM8G-LSICVM02 &BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location | |||
| Front Bezels | CSE-PTFB-813LB | $ 27.00 | 0 | Black front bezels | ||
| Front Bezels | CSE-PTFB-813-02B | $ 25.50 | 0 | Black Front Bezel w/ Round Venting Holes | ||
| GPU Kit | MCP-310-81504-0B | $ 26.00 | 1 | SC815 and SC116 with X11SPW & H12SSW for Tesla T4,RoHS | ||
| GPU Kit | FAN-0141L4 | $ 36.00 | 2 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | ||
| Cable Management Arm | MCP-290-00085-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 1U Chassis | ||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| SATADOM | SSD-DM128-SMCMVN1 | $ 140.50 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
| SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
| SATADOM | SSD-DM064-SMCMVN1 | $ 84.00 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | SSD-DM032-SMCMVN1 | $ 60.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
| SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
| SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
| SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
