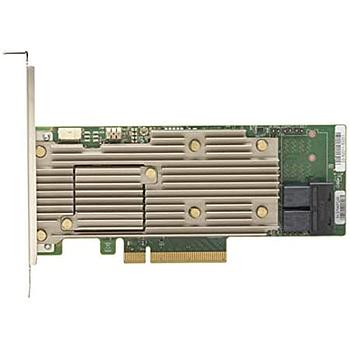

Supermicro AOC-SAS3-9460-8i 8-Port Storage Controller 9460-8i

8-Port PCIe Gen3 NVMe 9460-8i Storage Controller with 2GB DDR4 Cache, SAS3 12Gb/s, 8GT/s

Support critical, high-bandwidth applications with PCIe 3.1 connectivity
Fits into rack-mounted servers with a low-profile form factor and side-mounted SAS connectors
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60

Main Specifications
Device Type	Storage Controller
Dimensions (WxDxH)	6.127 x 2.712 in
Form Factor	Low Profile
Interface (Bus) Type	x8 lane PCI Express 3.1
Software / System Requirements
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
OS Required	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Storage Controller
Onboard Memory/Cache	2GB 2133 MHz DDR4 SDRAM
Channel Quantity	8x Internal ports
Supported Devices	SAS/SATA: 240, NVMe: 24
Processor	SAS3508 dual-core RAID-on-Chip (ROC)
RAID Level	RAID levels 0, 1, 5, 6, 10, 50, and 60
Expansion / Connectivity
Interface and Connections	2 Mini-SAS HD x4 SFF-8643
Environmental Parameters
Operating Temperature	0°C to 55°C
Power
Operating Voltage	+12V +/-8%, 3.3V +/-9%

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
