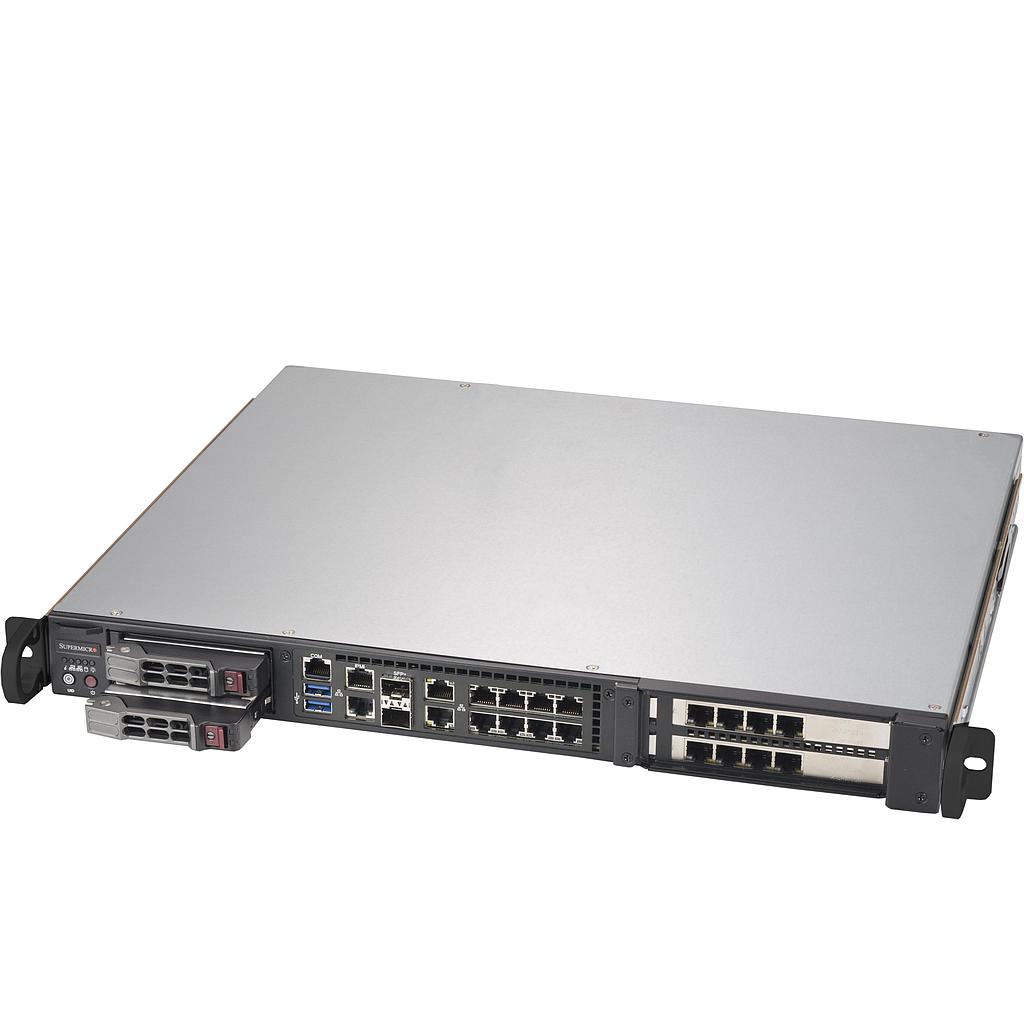

Supermicro CSE-513BTQC-350WB Rackmount 1U w/ 350W PS E-ATX chassis

Toolless serviceability and quick release sliding rails
Providing high performance with optimal LAN connectivity
Optimized for dual-processor or single-processor motherboards
Advanced thermal design for highly efficient cooling, quiet operation

Rackmount 1U w/ 350W Multi-output Platinum Certified Power Supply - Support for E-ATX motherboard of up to 2 Intel or AMD processors - Up to 2x 2.5in hot-swap drive bays. 1x Full-height & Halk-length expansion slot(s), Includes Mounting Rails Kit - SC513BTQC-350WB

1. 15" Mini 1U chassis support for maximum proprietary WIO motherboard size - 12" x 13" E-ATX
2. 2 x Full-height & Half-length expansion slot(s)
3. 2 x 2.5" hot-swap drive bay, Up to optional 4 x 2.5" fixed Internal Drive with bracket
4. Power Switch, UID Button & LED Indicators
5. 4 x 40mm x28mm PWM fan(s)
6. 1U 350W Multi-output Power Supply Platinum Level

Extra Specifications for Supermicro CSE-513BTQC-350WB Rackmount 1U w/ 350W PS E-ATX chassis

Power Supply
Certification	Platinum Certified
Power Efficiency	93%
Total Output Power and Input	350W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	180 x 100 x 40 mm
Output Type	24pin ATX
-12V	Max: 0.2A / Min: 0A
+12V	Max: 29A / Min: 0.5A (100Vac - 240Vac)
+5V	Max: 15A / Min: 0.2A
+3.3V	Max: 12A / Min: 0.2A
+5Vsb	Max: 3A / Min: 0A
Product SKUs
Product SKUs	CSE-513BTQC-350WB
Form Factor
Form Factor	Optimized for WIO (W series) motherboards, support MB size up to 12" x 13"
Processor Support
Processor Support	Dual and Single Intel® and AMD processors
Dimensions
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	15" (381 mm)
Gross Weight	14.5 lbs (6.58 kg)
Packaging (W x H x L)	19.5" (495 mm) x 6.9" (175 mm) x 22.4" (569 mm)
Available Color	Black
Expansion Slots
Expansion Slots	2x Full-height, Half-length expansion slot(s) (Riser Card Required)
Drive Bays
Drive Bays	SAS or enterprise SATA HDD only recommended
	Optional 4x 2.5" fixed drive bay with bracket
	Up to 2x 2.5" hot-swap drive bay
Backplane
Backplane	2-Port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Button	Power On/Off button
	Unit Identification (UID) button
LED	Power status LED
	HDD activity LED
	2 Network Activity LEDs
	System Information LED
Port	1x Com Port(s)
	4x LAN Port(s)
	1x VGA
	4x USB Port(s)
	1x IPMI
Systems Cooling
Fans	4x 40x28mm PWM fan(s)
	Optional 2x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	TUV/CB
	FCC class B

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

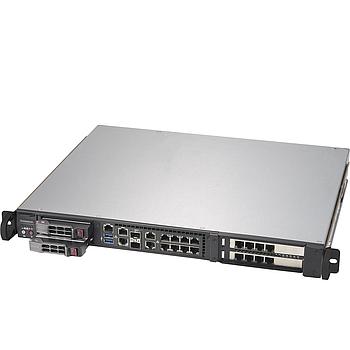

Supermicro CSE-513BTQC-350WB Rackmount 1U w/ 350W PS E-ATX chassis

$ 233.50$ 233.50233.5USD

$ 233.50
