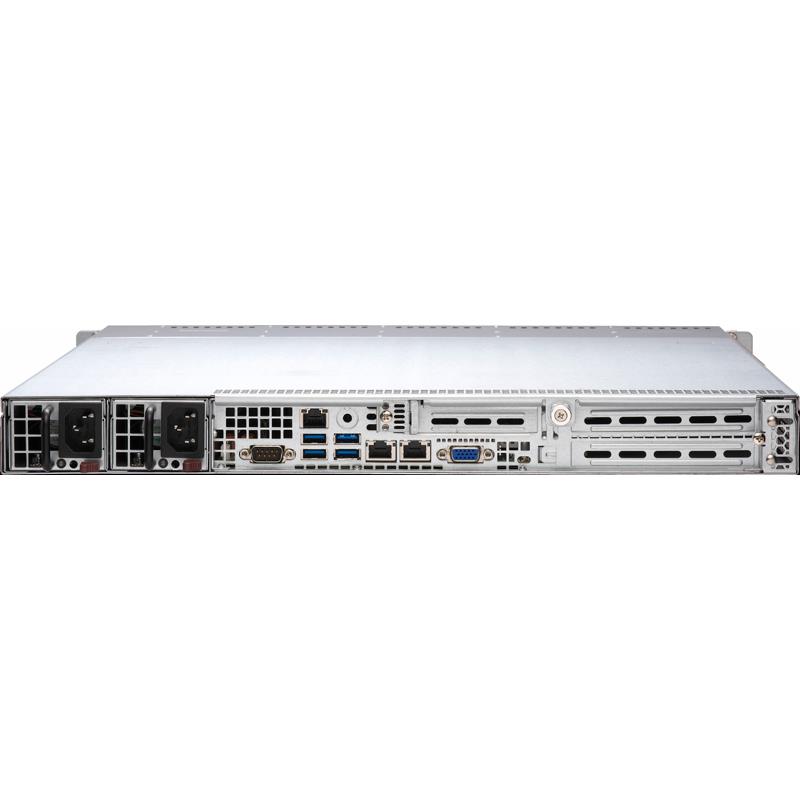

Supermicro AS-1114S-WTRT Barebone 1U A+ AMD EPYC 7000 Series

  • 3x PCI-E 4.0 x16 slots, M.2 Form Factor: 2280, 22120

  • Support Single AMD EPYC 7002 Series Processor, Up to 64 Cores

  • 10 Hot-swap 2.5" SATA3 HHD bays - Optional 2 U.2 NVMe (PCI-E 3.0) drive

  • Up to 2TB DDR4-3200 RDIMM/LRDIMM/3DS/NVDIMM memory in 8 DIMM slots

Barebone 1U Rackmount for Single AMD EPYC 7000, up to 2TB DDR4 Reg ECC 3200MHz memory in 8 DIMM slots, 10 Hot-Swap 2.5in SATA drive bays (optional support for 10 U.2 NVMe), Dual 10BaseT LAN ports, IPMI 2.0 + KVM, Redundant 500W Power Supplies (CSE-116TS-R504WBP + MBD-H12SSW-NT)



    Option not available


    This combination does not exist.

    Add to Cart

    • 2 SuperDOM (Disk on Module) ports

    • Single AMD EPYC 7002 Series Processor

    • 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)

    • 8 DIMMs, up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

    • 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller

    • 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0* x16 (LP) slot

    • 10 Hot-swap 2.5" SATA3 drive bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices

    • 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

    • Integrated IPMI 2.0 + KVM with dedicated LAN. *Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management

    Extra Specifications for Supermicro AS-1114S-WTRT Barebone 1U A+ AMD EPYC 7000 Series

    Main Specifications
    Device TypeA+ Server
    Built-in DevicesSuper H12SSW-NT
    Form Factor1U Rackmount - CSE-116TS-R504WBP
    Dimensions (WxDxH)Width 17.2" (437mm) x Height 1.7" (43mm) x Depth 23.5" (597mm)
    Weight46 lbs (20.9kg)
    Enclosure ColorBlack
    Compatible ProcessorsSingle AMD EPYC 7002 Series Processor - Support CPU TDP up to 240W
    Compatible SocketSocket SP3
    Cache/CoreUp to 64 Cores
    System Memory
    Memory Capacity8 DIMM slots - Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory TypeDDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersDual 10GBase-T LAN with via Broadcom BCM57416
    SATA/SASSATA3 (6Gbps)
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    GraphicsASPEED AST2500 BMC
    USB7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
    Input / Output
    SATA2 SATA3 (6 Gbps) ports
    LAN2 RJ45 10GBase-T ports
    1 RJ45 Dedicated IPMI LAN port
    Video Output1 VGA port
    DOM2 SuperDOM (Disk on Module) ports
    System BIOS
    BIOS TypeAMI 32Mb SPI Flash ROM
    SoftwareSuper Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN
    Power ConfigurationsACPI / ACPM Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator.
    FANFans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment, Thermal Control for fan connectors
    Front Panel
    ButtonsPower On/Off button, UID button
    LEDsPower status LED, HDD activity LED, Network activity LEDs, Universal Information (UID) LED
    Expansion Slots (per node)
    PCI-Express2 PCI-E 4.0 x16 (FHHL) slots
    1 PCI-E 4.0* x16 (LP) slot
    2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
    * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
    Drive Bays / Storage
    Hot-swap10 Hot-swap 2.5" SATA3 drive bays
    Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
    SAS/SATA HDD BackplaneSAS/SATA HDD Backplane
    System Cooling
    Fans4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
    Power Supply
    Power Supply500W Redundant Power Supplies with PMBus
    Certification80PLUS Platinum Certified
    RoHS CompliantYes
    FeaturesDB Processing & Storage, Data Center Applications, Firewall Applications
    Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Parts List - (Items Included)
    Motherboard / Chassis1x MBD-H12SSW-NT / 1x CSE-116TS-R504WBP
    Cable(s)1x CBL-SAST-0803, 1x CBL-SAST-0813
    Backplane1x BPN-SAS3-116A-N2
    Riser Cards1x RSC-W-66G4, 1x RSC-WR-6
    Heatsink / Retention2x SNK-P0062P
    Power Supply Number2x PWS-504P-1R
    Power Distributor(s)1x PDB-PT112-S2424
    Fan(s)4x FAN-0141L4
    Parts1x MCP-240-00099-0N
    Drive Tray(s)10x MCP-220-00047-0B
    Rear Window1x MCP-240-00098-0N
    Rail Set1set MCP-290-00063-0N
    Software(s)1x SFT-OOB-LIC
    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (DOA)
